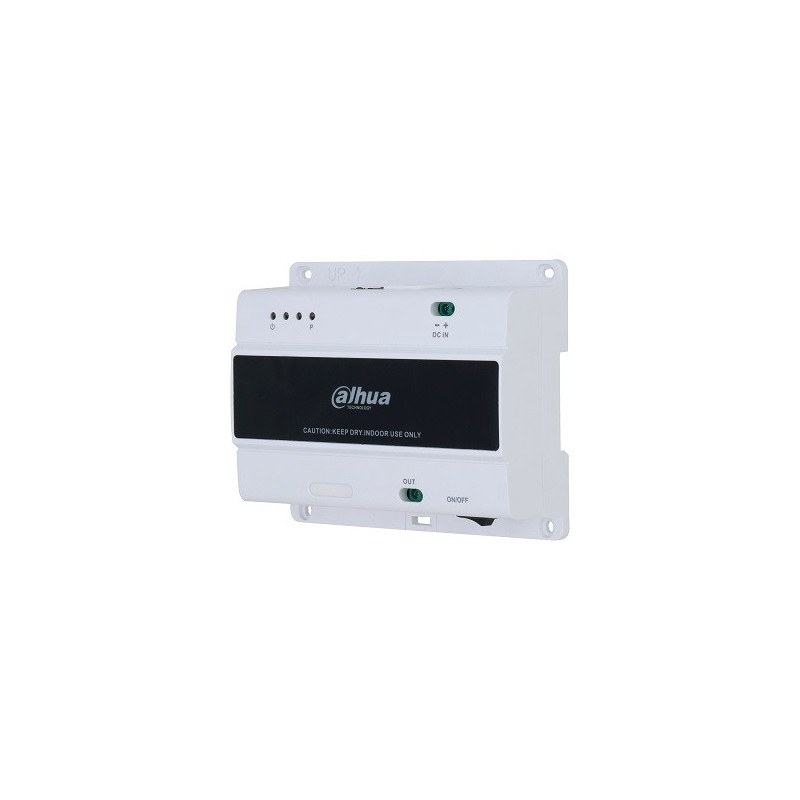

Network controller for connecting a two-wire intercom system VTNS1001B-2
Product reference:
14-6923172522115
• Weight: 250g. • Operating temperature: -10°C to +55°C. • Operating humidity: 10%-95%RH (non-condensing). • Suitable for DIN rail installation. • Certificates: CE, FCC, UL.
Network controller for connecting a two-wire intercom system VTNS1001B-2
Product reference:
14-6923172522115
• Weight: 250g. • Operating temperature: -10°C to +55°C. • Operating humidity: 10%-95%RH (non-condensing). • Suitable for DIN rail installation. • Certificates: CE, FCC, UL.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Features:
• The network controller is designed to connect a two-wire intercom system (power and network via the same 2 wires).
• Supports connection of 4 internal monitors and 2 doorbells.
• 1x RJ45 input, 1x two-wire port.
• Power supply: DC 48V, 1A-3A.
• Power consumption: up to 15W.
• Status indicator lights: 2.

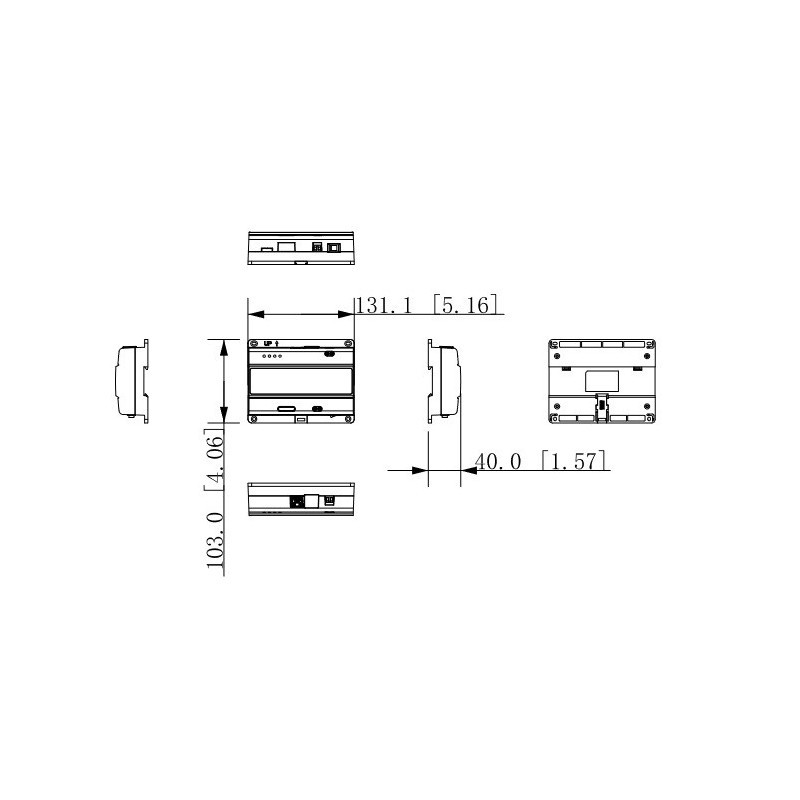

• Dimensions: 131.1x103x40mm.
• Housing material: PC + ABS.
• Color: white.
• Weight: 250g.
• Operating temperature: from -10°C to +55°C.
• Operating humidity: 10%-95%RH (non-condensing).
• Suitable for installation on DIN rail.
• Certificates: CE, FCC, UL.
| Height | 30 mm |
| Length | 150mm |
| Weight | 200g |
| Width | 100mm |
