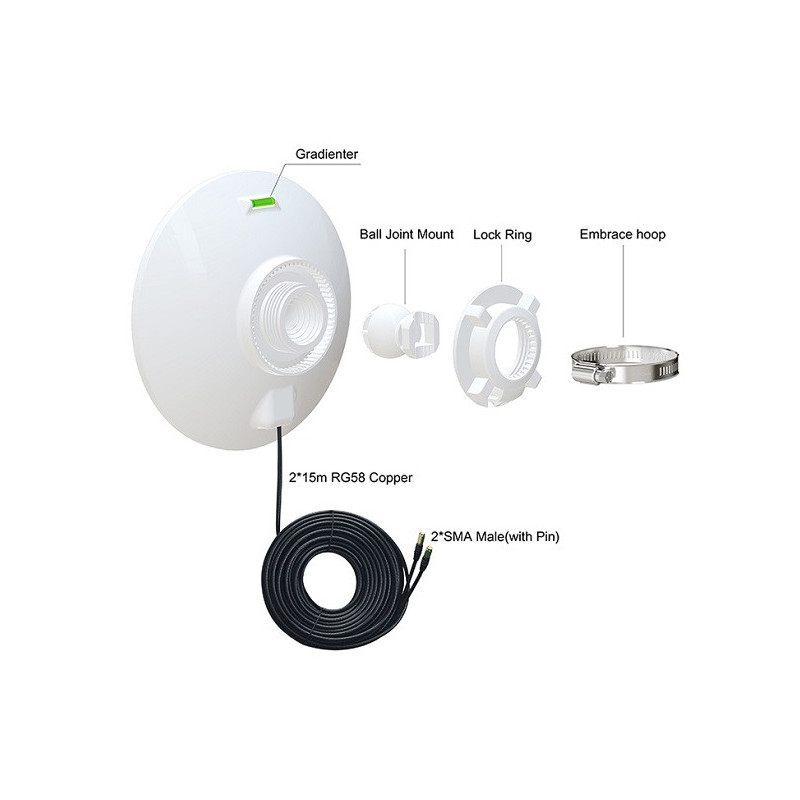

Network Antenna - 5G LTE CBRS 2x2 MIMO Dish 1.7-4.2GHz 2x 12dBi IP67
Product reference:
14-9990000992249
5G/LTE/CBRS 2x2 MIMO dish antenna operates in the 1710-2690MHz and 3300-4200MHz frequency bands, with 2x 12 dBi gain. The kit includes two 15 m cables, the antenna meets the IP67 standard and can operate at temperatures from -40°C to +70°C.
Network Antenna - 5G LTE CBRS 2x2 MIMO Dish 1.7-4.2GHz 2x 12dBi IP67
Product reference:
14-9990000992249
5G/LTE/CBRS 2x2 MIMO dish antenna operates in the 1710-2690MHz and 3300-4200MHz frequency bands, with 2x 12 dBi gain. The kit includes two 15 m cables, the antenna meets the IP67 standard and can operate at temperatures from -40°C to +70°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
5G / LTE / CBRS 2x2 MIMO Dish Antenna, 1.7-4.2GHz, 2x 12dBi, IP67
5G/LTE/CBRS 2x2 MIMO dish antenna operates in the 1710-2690MHz and 3300-4200MHz frequency bands, with 2x 12 dBi gain. The kit includes two 15m long cables, IP67 protection class, and supports a temperature range from -40°C to +70°C.
- Supports LTE, 5G and CBRS applications with dual slope polarization for better performance.
- High 2x 12 dBi gain ensures strong signal reception and transmission.
- Durable IP67 protection class against dust and water, suitable for outdoor use.
- The kit includes two 15m long cables, allowing for flexible antenna installation.
Features | |
|---|---|
| Product type | Networking Antenna |
| Model | 5G / LTE / CBRS 2x2 MIMO Dish Antenna |
Specifications | |
| Frequency band | 1710-2690MHz / 3300-4200MHz |
| Strengthening | 2x 12 dBi |
| VSWR | < 1.5 |
| Impedance | 50 ohms |
| Maximum power per port | 50W |
| Connector | 2x SMA-manager. |
| Cable type | RG58 copper |
| Cable length | 15m |
| Antenna diameter | 120mm |
| Installation | On a pole: diameter 30-50 mm |
| Material | PC, ABS |
| Dimensions | 200 x 200 x 94 mm |
| Polarization | Double slope +/-45° |
| Color | White |
| Weight | 1.34 kg |
| Working temperature | -40°C to +70°C |
| Working humidity | Up to 95% RH |
| Height | 300mm |
| Length | 150mm |
| Weight | 2500g |
| Width | 200mm |
