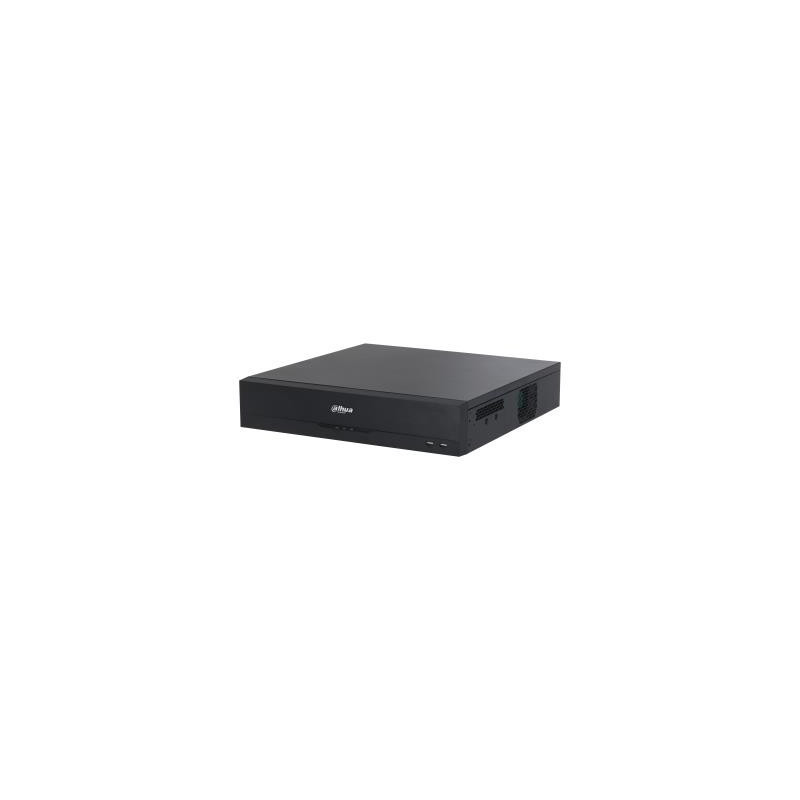

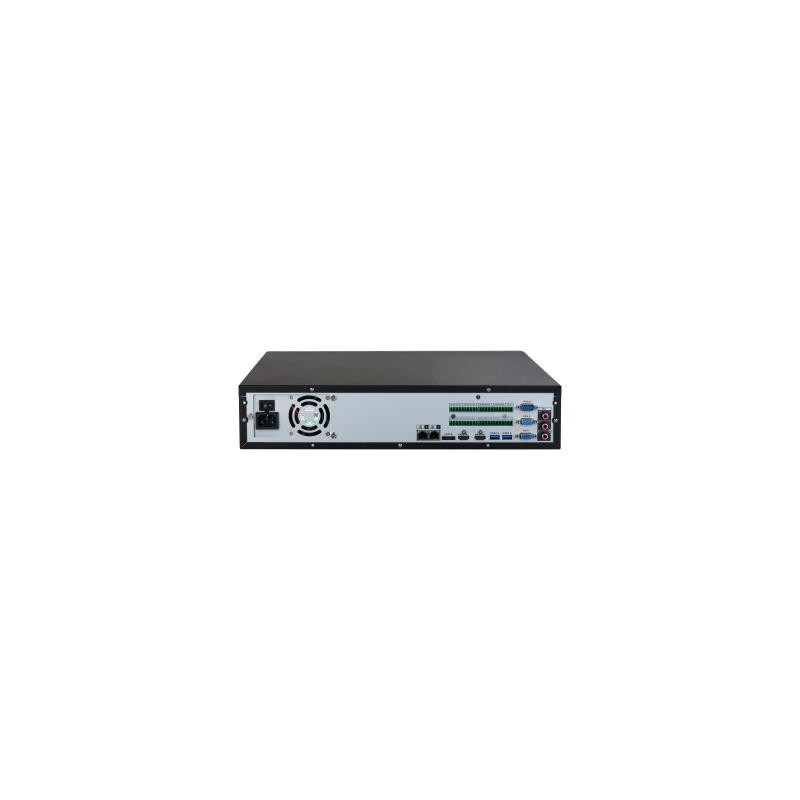

NET VIDEO RECORDER 64CH / NVR5864-EI DAHUA
Product reference:
2-6923172586063
NET VIDEO RECORDER 64CH / NVR5864-EI DAHUA
Product reference:
2-6923172586063
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps
- Support AcuPick with Max. 16-Channel
- Support N+M cluster
- Support Raid0/1/5/6/10
- Max. 384 Mbps incoming/recording/outgoing bandwidth
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
- AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
- Security baseline 2.3
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Backup function | Yes |
| Browser supported | Chrome;IE;Safari;Edge;Firefox |
| Built-in processor | Yes |
| Depth | 457.9 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDD interface | SATA |
| HDMI ports quantity | 2 |
| Height | 89 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum storage capacity | 128 TB |
| Mobile operating systems supported | Android/iOS |
| Model | NVR5864-EI |
| Model name | DHI-NVR5864-EI |
| Number of HDDs supported | 8 |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 570 mm |
| Package height | 226 mm |
| Package weight | 9010 g |
| Package width | 570 mm |
| Product colour | Black |
| Rack mounting | Yes |
| RAID levels | 0/1/10/5/6 |
| RAID support | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 2 |
| Storage temperature (T-T) | -20 - 60 °C |
| Summary | Dahua Technology DHI-NVR5864-EI. Video input channels: 64 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. Maximum storage capacity: 128 TB, HDD interface: SATA, RAID levels: 0, 1, 5, 6, 10. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP;.... Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Supported resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.56 |
| Unit Box Width | 0.57 |
| Unit Calculated Volume | 0.07022 cubm |
| Unit Calculated Weight | 8.9 kg |
| Units per Shipping Box | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI |
| VGA (D-Sub) output ports | 2 |
| Video input channels | 64 channels |
| Video recording modes | 1080p |
| Weight | 6400 g |
| Wi-Fi | No |
| Width | 439.9 mm |
