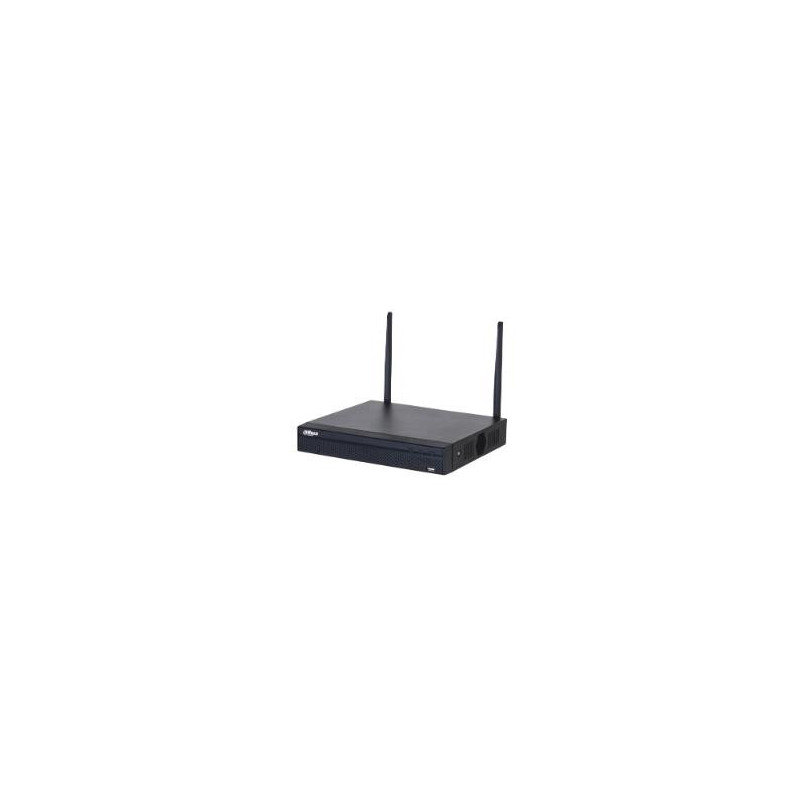

With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
| Audio codecs | PCM; G711A; G711U; G726 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Backup function | Yes |
| Browser supported | Chrome; IE 9 or later; Firefox |
| Built-in processor | Yes |
| Certification | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C |
| DC-in jack | Yes |
| Depth | 247.3 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100 Mbit/s |
| HDD interface | SATA |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Height | 44.7 mm |
| Input bandwidth | 40 Mbit/s |
| LED indicators | HDD/Network/Power |
| Maximum frame rate | 25 fps |
| Maximum storage capacity | 16 TB |
| Mobile operating systems supported | Android/iOS |
| Model | NVR1104HS-W-S2-CE |
| Model name | NVR1104HS-W-S2-CE |
| Number of HDDs installed | 1 |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -10 - 45 °C |
| Output bandwidth | 20 Mbit/s |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Package depth | 117 mm |
| Package height | 308 mm |
| Package weight | 1560 g |
| Package width | 372 mm |
| Product colour | Black |
| Product Net Weight | 0.824 kg |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Recording modes | Manual |
| Shipping Box Depth | 37 cm |
| Shipping Box Height | 11.5 cm |
| Shipping Box Weight | 1.6 kg |
| Shipping Box Width | 30.5 cm |
| Summary | Dahua Technology NVR1104HS-W-S2-CE. Video input channels: 4 channels, Video recording modes: 720p, 1080p, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P. Rack capacity: 1U, LED indicators: HDD, Network, Power, Product colour: Black. Output current: 1.5 A, Output voltage: 12 V |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.305 |
| Unit Calculated Volume | 0.01298 cubm |
| Unit Calculated Weight | 1.6 kg |
| Units per Shipping Box | 1 |
| USB 2.0 ports quantity | 2 |
| Vendor Homepage | https://www.dahuasecurity.com/products/ |
| VGA (D-Sub) output ports | 1 |
| Video codecs | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Video input channels | 4 channels |
| Video motion detection | Yes |
| Video recording modes | 1080p/720p |
| Weight | 824 g |
| Width | 260.3 mm |
