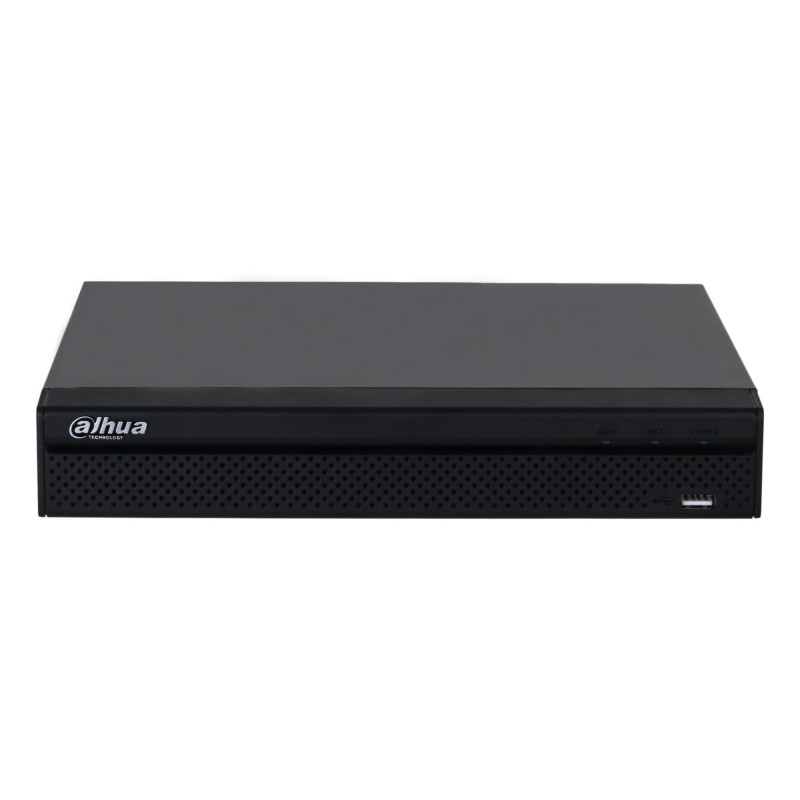

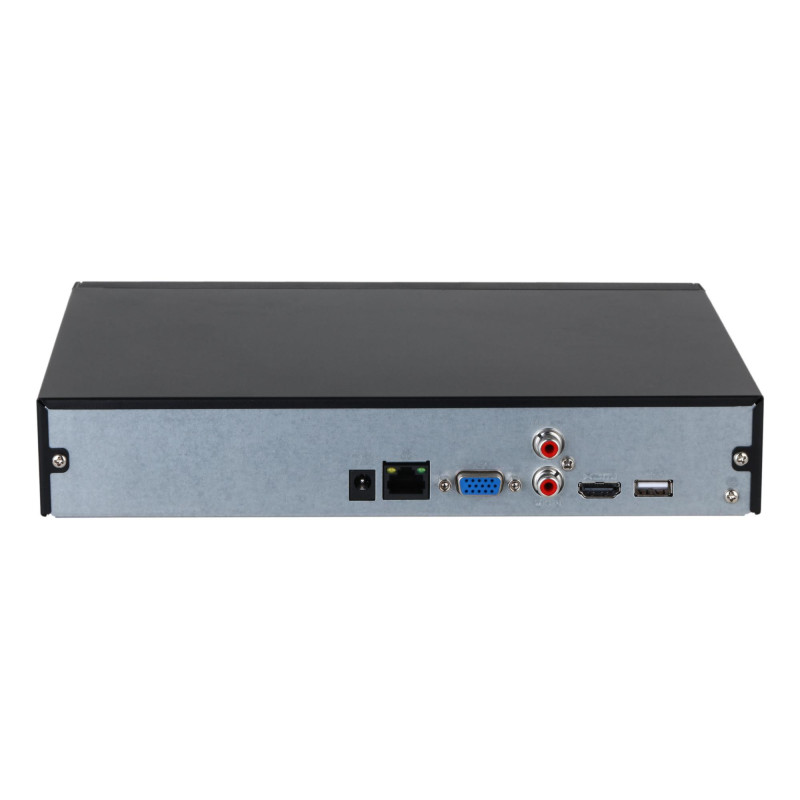

NET VIDEO RECORDER 4CH / NVR2104HS-4KS3 DAHUA
Product reference: 2-6923172575531

NET VIDEO RECORDER 4CH / NVR2104HS-4KS3 DAHUA

Product reference: 2-6923172575531
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
140,03 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.

Functions
- SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

  • Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
  • Max. decoding capability: 6 × 1080p@30 fps
  • Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
  • Supports IP cameras with a resolution up to 12 MP
  • AI by Recorder supports 4-channel SMD
  • AI by Camera supports perimeter protection and SMD
  • Supports one-click arming and disarming

Aukštis 47.6 mm
Bruto svoris 1.5 kg
Darbo santykinės drėgmės diapazonas 10 - 93 %
Darbo temperatūros diapazonas (TT) -10 - 55 °C
Didžiausia atminties apimtis 20 TB
Energijos suvartojimas 10 W
eSATA prievadų skaičius 1
Eterneto LAN duomenų perdavimo norma 10/100 Mbit/ai
Ethernet LAN (RJ-45) portų kiekis 1
Garso RCA išvestys 1
Garso RCA įvestys 1
HDMI portų kiekis 1
Ilgis 232.5 mm
Integruotas procesorius Taip
Išvesties pralaidumas 60 Mbit/ai
Išėjimo srovė 1.5 A
Išėjimo įtampa 12 V
Kietojo disko sąsaja SATA
Maksimali rezoliucija 3840 x 2160 pikseliai
Model name NVR2104HS-4KS3
Neto svoris 0.85 kg
Numatyta operacinė sistema Įdiegta "LINUX"
Paketo svoris 1390 g
Pakuotės aukštis 314 mm
Pakuotės gylis 89 mm
Pakuotės plotis 334 mm
Palaikoma naršyklė Chrome; IE; Safari; Edge; Firefox
Palaikomi audio formatai G.711 µ-law/G.711 A-law/G.726/PCM
Palaikomi tinklo protokolai HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Palaikomi vaizdo formatai H.264/H.264+/H.265/H.265+,
MJPEG
Palaikomos mobiliosios operacinės sistemos Android/iOS
Palaikomos rezoliucijos HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Plotis 260 mm
Produkto spalva Juoda
Rėmo pajėgumas 1U
Sandėliavimo temperatūros norma (T-T) -20 - 60 °C
Sertifikavimas CE-LVD: IEC 62368-1:2014

CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Shipping Box Depth 92.2 cm
Shipping Box Height 34.7 cm
Shipping Box Weight 15 kg
Shipping Box Width 35.6 cm
Stovo montavimas Taip
Summary Dahua Technology Lite NVR2104HS-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: Black, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (typical): 10 W, Output current: 1.5 A, Output voltage: 12 V
Svoris 850 g
Unit Box Height 0.31
Unit Box Length 0.33
Unit Box Width 0.09
Unit Brutto Volume 0.01139 cubm
USB 2.0 portų kiekis 2
Vaizdo judesio detekcija Taip
Vaizdo signalo įvesties kanalai 4 kanalai
Vaizdo įrašymo režimai 1080p/720p/960p
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104HS-4KS3
VGA ("D-Sub") išvesties prievadai 1
Vieneto aukštis 31 cm
Vieneto gylis 33 cm
Vieneto plotis 9 cm
Vienetų skaičius vienoje siuntimo dėžėje 10
Įvesties pralaidumas 80 Mbit/ai
"Wi-Fi" Ne
