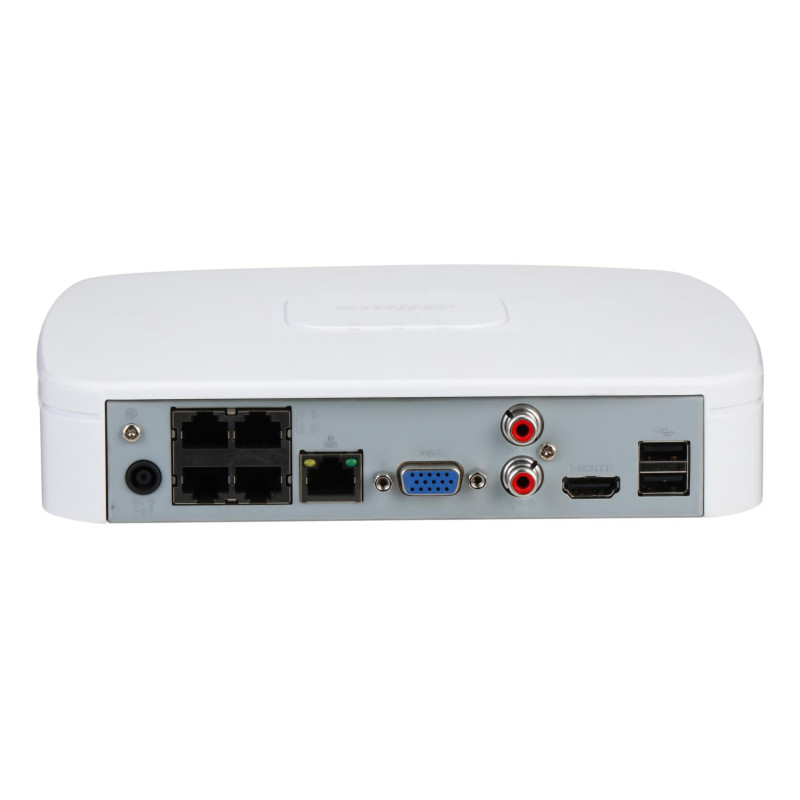

The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both cost- effective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Backup function | Yes |
| Browser supported | Chrome, IE, Safari, Edge, Firefox |
| Built-in processor | Yes |
| DC-in jack | Yes |
| Depth | 206.4 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100 Mbit/s |
| HDD interface | SATA |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Height | 45.6 mm |
| Input bandwidth | 80 Mbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum storage capacity | 20 TB |
| Mobile operating systems supported | Android/iOS |
| Model | NVR2104-P-4KS3 |
| Model name | NVR2104-P-4KS3 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of HDDs supported | 1 |
| Number of simultaneously playbacked channels | 4 channels |
| Operating relative humidity (H-H) | -20 - 60 % |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -10 - 55 °C |
| Output bandwidth | 60 Mbit/s |
| Output current | 1.22 A |
| Output voltage | 53 V |
| Package depth | 96 mm |
| Package height | 261 mm |
| Package weight | 1420 g |
| Package width | 364 mm |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Product colour | White |
| Storage temperature (T-T) | 10 - 93 °C |
| Summary | Dahua Technology Lite NVR2104-P-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Product colour: White. Power consumption (max): 36 W, Power consumption (typical): 10 W, Output current: 1.22 A |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.36 |
| Unit Box Width | 0.09 |
| Unit Calculated Volume | 0.01102 cubm |
| Unit Calculated Weight | 1.51 kg |
| Units per Shipping Box | 10 |
| USB 2.0 ports quantity | 2 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104-P-4KS3 |
| VGA (D-Sub) output ports | 1 |
| Video formats supported | H.264+/H.265/H.265+/M-JPEG |
| Video input channels | 4 channels |
| Video motion detection | Yes |
| Weight | 480 g |
| Wi-Fi | No |
| Width | 204.6 mm |
