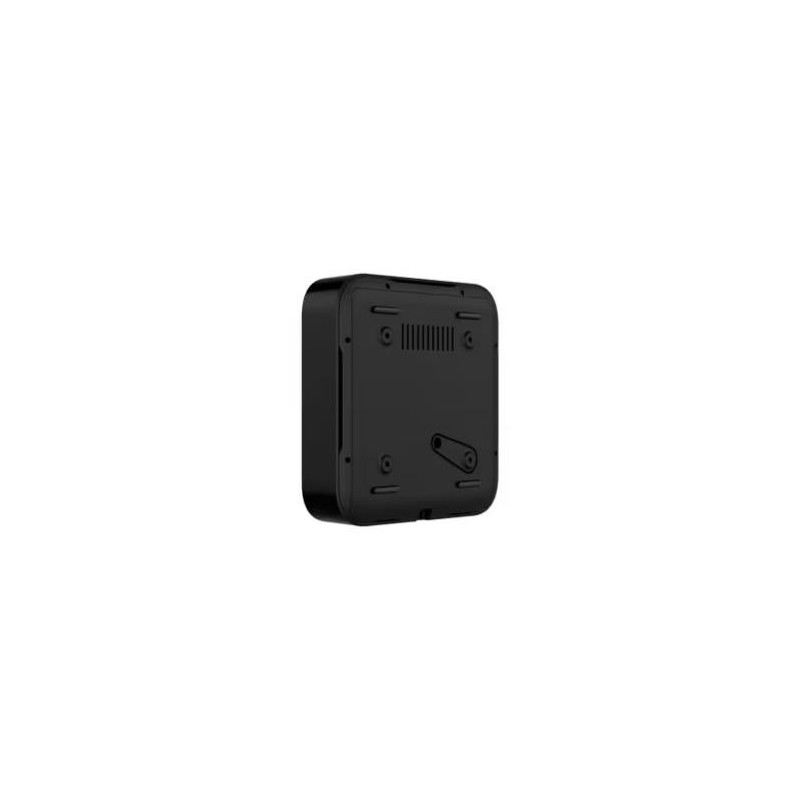

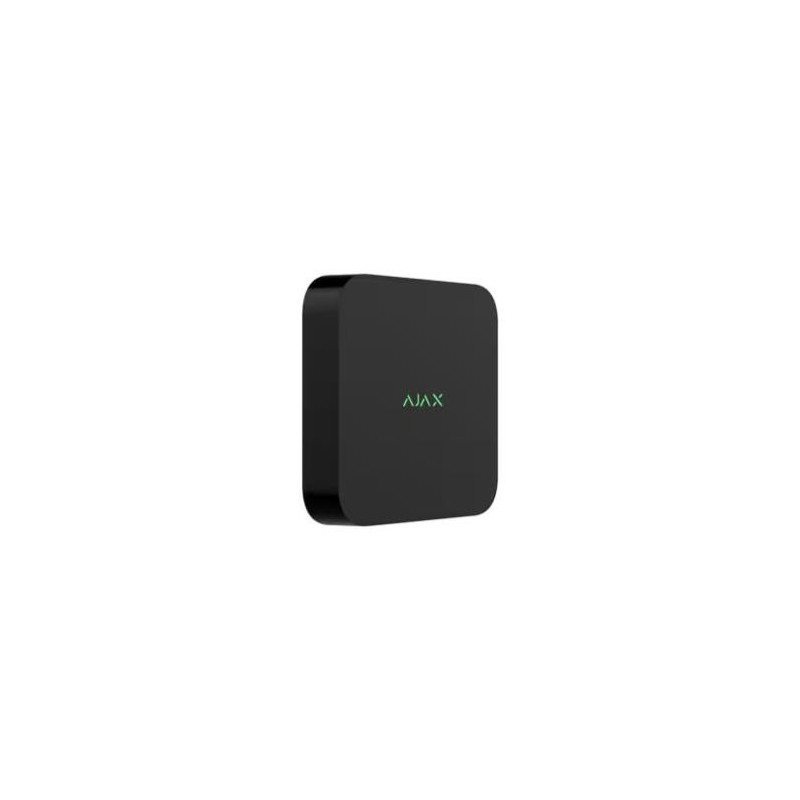

NET VIDEO RECORDER 16CH / BLACK 70935 AJAX
Product reference: 2-4823114044120

NET VIDEO RECORDER 16CH / BLACK 70935 AJAX

Product reference: 2-4823114044120
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
535,26
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Guiding video to top-tier security
NVR brings the synergy of video surveillance and Ajax systems. Experience unparalleled system response speed, ensuring instant access to video archive, even on the go. Wide compatibility makes almost any IP camera integrated with intrusion protection and automation. NVR carries the legacy of a professional security system trusted by millions of users worldwide.

A device with no hidden agenda
All system data is securely stored within the European Union and is in full compliance with European data protection standards.Ajax NVR is NDAA-compliant, with every component sourced from manufacturers trusted and approved by the US government. It is versatile and can be installed in any location. Additionally, Ajax NVR has undergone independent cybersecurity tests to ensure its safety and reliability.

Customizable videowall for simultaneous monitoring
Integrate all your visual data in a streamlined interface. The Videowall tab combines the latest snippets from IP cameras and MotionCam series detectors, offering a comprehensive view of your space. Rearrange tiles according to your preference. The videowall is accessible on both mobile and desktop apps.

Smooth archive search
Effortlessly access the archive by clicking on an event in the notification log, instantly directing you to the precise camera recording at the event's timestamp. Everything is one click away with our advanced features

Rapid and encrypted data transfer
Ajax JetSparrow is the heart and brain of the Ajax video. It is responsible for all the video transmission, storage, and management.

We have developed JetSparrow — our proprietary video transmission technology to deliver an ultra-fast VMS experience. Thanks to this streaming technology, navigating through the local HDD archive feels as smooth as browsing cloud storage. As a result, browsing the archive becomes remarkably efficient, and the live view initiates without any delay.

Built-in motion detection
Optimize your video archive by setting up the pixel movement detection feature. Define specific zones to ensure recordings are triggered only when movement occurs in the selected area. This conserves HDD space and streamlines archive navigation.


AC input frequency 50/60 Hz
AC input voltage 110 - 240 V
Audio formats supported RTSP
Brand compatibility Ajax
Cables included LAN (RJ-45)/Power
Compatible products Hub
Hub Plus
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hub Hybrid (2G)
Hub Hybrid (4G)
Depth 47 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10/100 Mbit/s
HDD interface SATA
HDD size 3.5 "
Height 193 mm
LED indicators Yes
Maximum storage capacity 16 TB
Model name NVR DC (16-ch)
Number of HDDs supported 1
Operating relative humidity (H-H) 0 - 75 %
Operating temperature (T-T) 0 - 40 °C
Output current 0.6 A
Power consumption (max) 24 W
Product colour Black
Quick installation guide Yes
Summary Ajax NVR DC (16-ch). Video input channels: 16 channels, Audio formats supported: RTSP, Video formats supported: H.264, H.265. Maximum storage capacity: 16 TB, HDD interface: SATA, HDD size: 3.5". Ethernet LAN data rates: 10,100 Mbit/s. Brand compatibility: Ajax, Product colour: Black, Compatible products: Hub Hub Plus Hub 2 (2G) Hub 2 (4G) Hub 2 Plus Hub Hybrid (2G) Hub Hybrid (4G). Power consumption (max): 24 W, AC input voltage: 110 - 240 V, AC input frequency: 50/60 Hz
Unit Box Height 0.05
Unit Box Length 0.25
Unit Box Width 0.21
Unit Calculated Volume 0.002625 cubm
Unit Calculated Weight 0.883 kg
Units per Shipping Box 1
Vendor Homepage https://ajax.systems/products/specs/nvr-16-ch-dc/
Video formats supported H.264/H.265
Video input channels 16 channels
Video motion detection Yes
Weight 700 g
Width 193 mm
