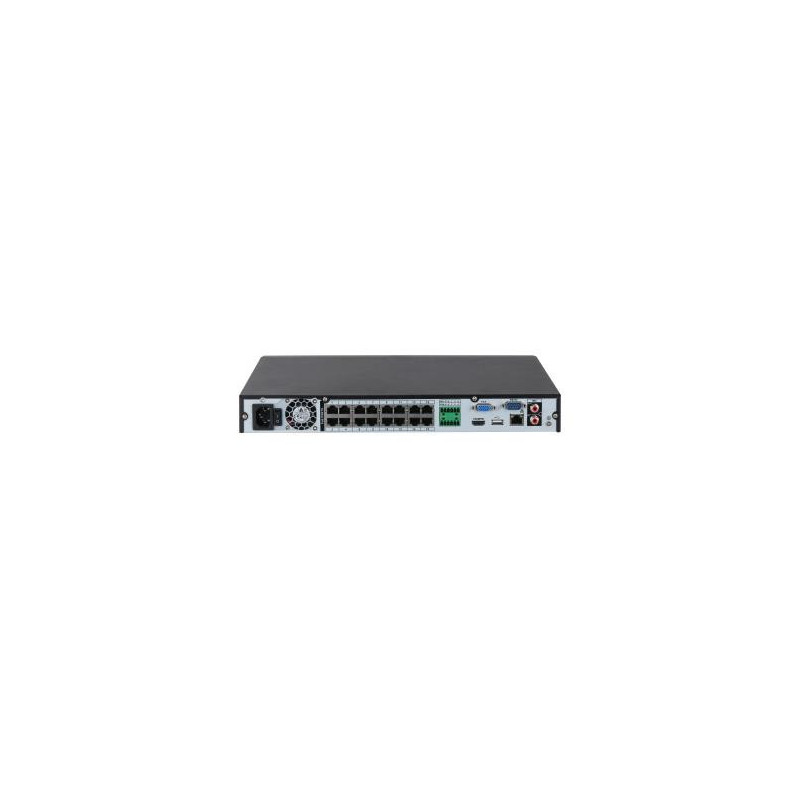

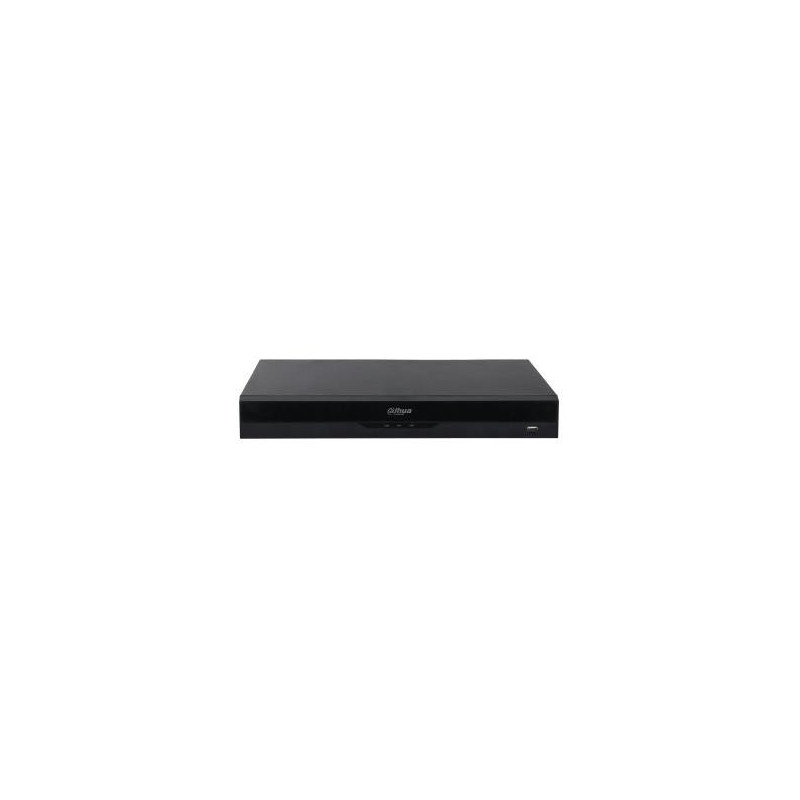

NET VIDEO RECORDER 16CH 16POE / NVR4216-16P-EI DAHUA
Product reference:
2-6923172585790
NET VIDEO RECORDER 16CH 16POE / NVR4216-16P-EI DAHUA
Product reference:
2-6923172585790
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled)
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Backup function | Yes |
| Bit rate | 8192 Kbit/s |
| Brand compatibility | Any brand |
| Built-in processor | Yes |
| Depth | 329.3 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Height | 53 mm |
| Internal SATA ports quantity | 2 |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum storage capacity | 16 TB |
| Mobile operating systems supported | Android/iOS |
| Model | NVR4216-16P-EI |
| Model name | NVR4216-16P-EI |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of HDDs supported | 2 |
| Number of motion detection zones | 396 |
| Number of users | 128 user(s) |
| On Screen Display (OSD) | Yes |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 425 mm |
| Package height | 147 mm |
| Package weight | 3800 g |
| Package width | 451 mm |
| Playback controls | Yes |
| Playback modes | Backup selection,Digital zoom,Forward,Full screen,Next camera,Pause,Play,Previous camera,Repeat,Reverse,Shuffle,Speed Adjust,Stop |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Processor cores | 2 |
| Product colour | Black |
| Product Net Weight | 2.6 kg |
| PTZ control | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Recording modes | Manual,Schedule,Stop |
| Recording time | 120 min |
| RS-232 interface | Yes |
| Shipping Box Depth | 75 cm |
| Shipping Box Height | 44 cm |
| Shipping Box Weight | 21 kg |
| Shipping Box Width | 47 cm |
| Snapshot | Yes |
| Split screen | Yes |
| Storage temperature (T-T) | -20 - 60 °C |
| Summary | Dahua Technology Lite NVR4216-16P-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768. Maximum storage capacity: 16 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP. Rack capacity: 1U, Brand compatibility: Any brand, Product colour: Black. Power consumption (typical): 30 W, AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz |
| Supported network protocols | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP |
| Supported resolutions | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Two-way talk | Yes |
| Unit Box Height | 0.42 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.145 |
| Unit Calculated Volume | 0.03102 cubm |
| Unit Calculated Weight | 4.2 kg |
| Unit Depth | 45.5 cm |
| Unit Height | 42 cm |
| Unit Width | 14.5 cm |
| Units per Shipping Box | 5 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-16P-EI |
| VGA (D-Sub) output ports | 1 |
| Video formats supported | H.264/M-JPEG |
| Video input channels | 16 channels |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Weight | 2600 g |
| Width | 375 mm |
