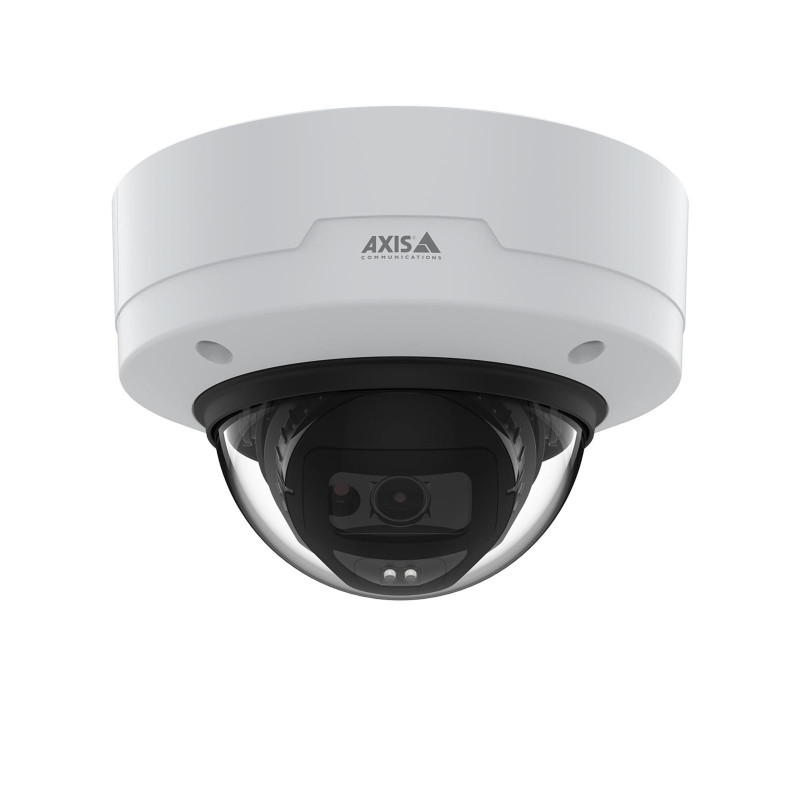

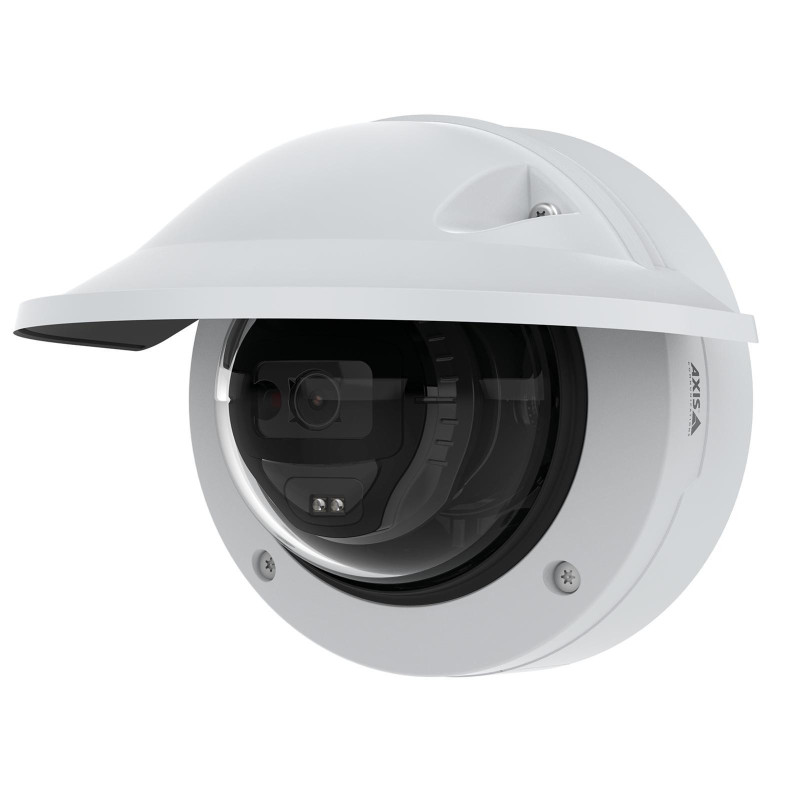

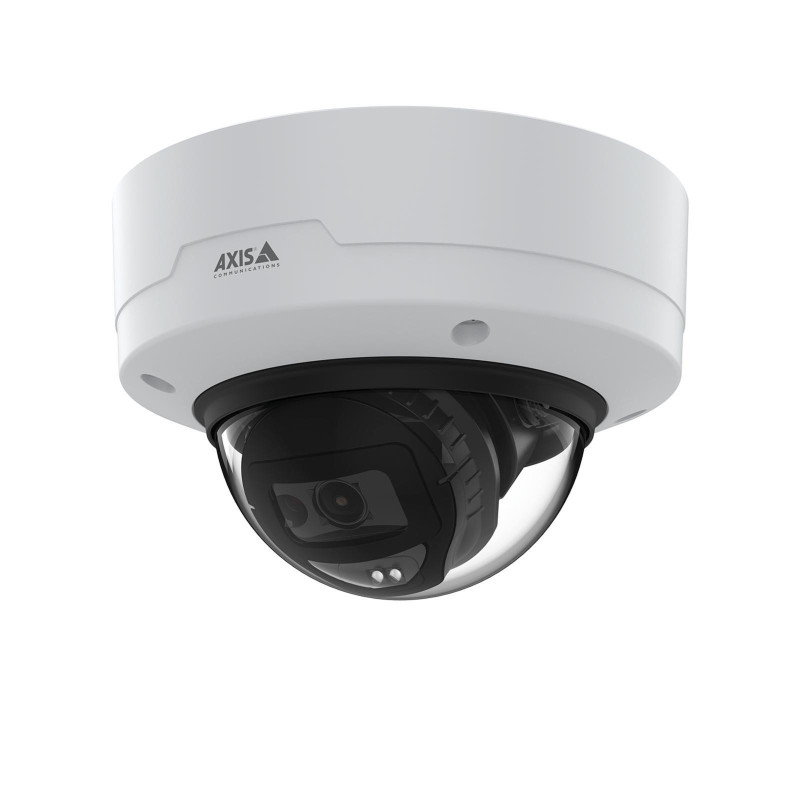

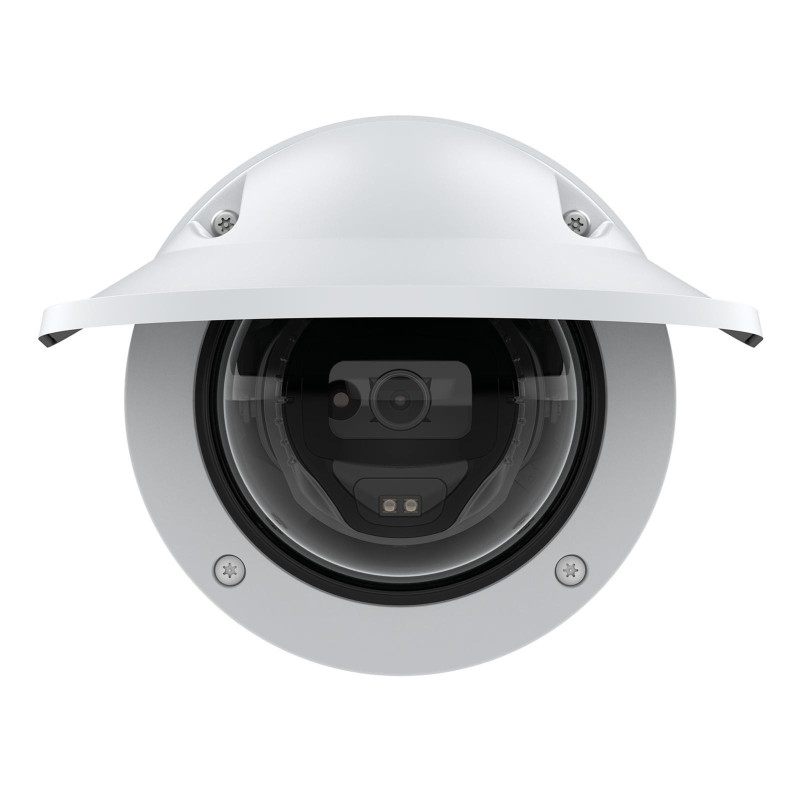

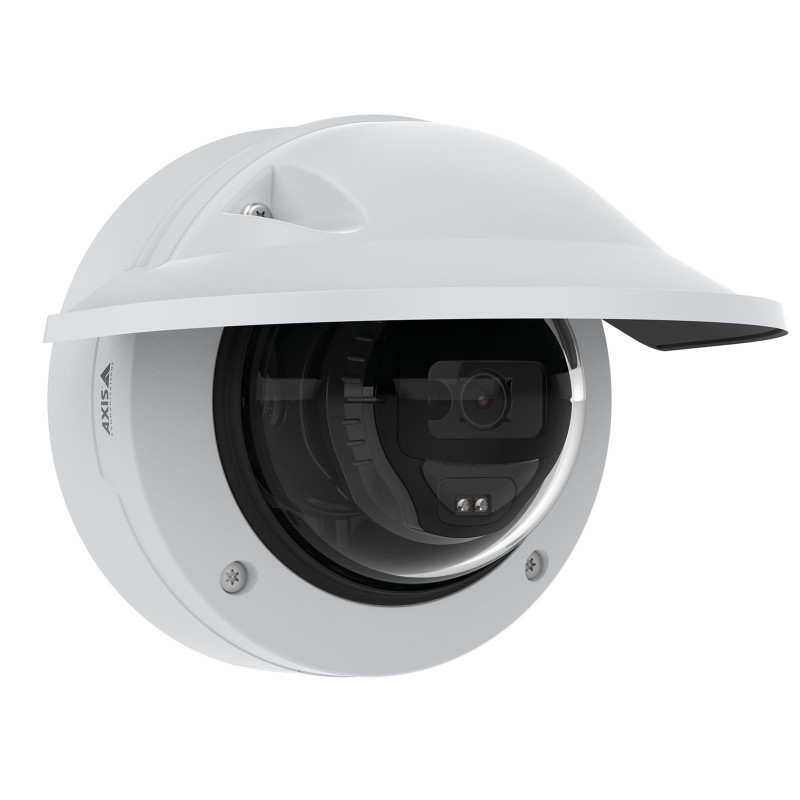

This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.
| Summary | Axis M3216-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.16 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.9 mm, Closest focusing distance: 1 m |
| Vendor Homepage | https://www.axis.com/products/axis-m3216-lve |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.215 |
| Unit Box Width | 0.2 |
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Plastic/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 190 ° |
| Camera shutter speed | 1/50000 - 1/5 s |
| Lens viewing angle, horizontal | 102 ° |
| Lens viewing angle, vertical | 73 ° |
| Minimum illumination | 0.16 lx |
| Pan range | 0 - 190 ° |
| Tilt angle range | -10 - 80 ° |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1 m |
| Fixed focal length | 2.9 mm |
| Minimum aperture number | 2 |
| Zoom capability | Yes |
| LED type | IR |
| Night vision | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 2688 x 1512 pixels |
| Privacy masking | Yes |
| Video compression formats | H.264/H.265 |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 1024 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| HTTPS encryption | Yes |
| Security algorithms | EAP-TLS/HTTPS |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Diameter | 149 mm |
| Height | 102 mm |
| Weight | 791 g |
| Number of cameras | 1 |
| Model | M3216-LVE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00602 cubm |
| Unit Calculated Weight | 1.09 kg |
