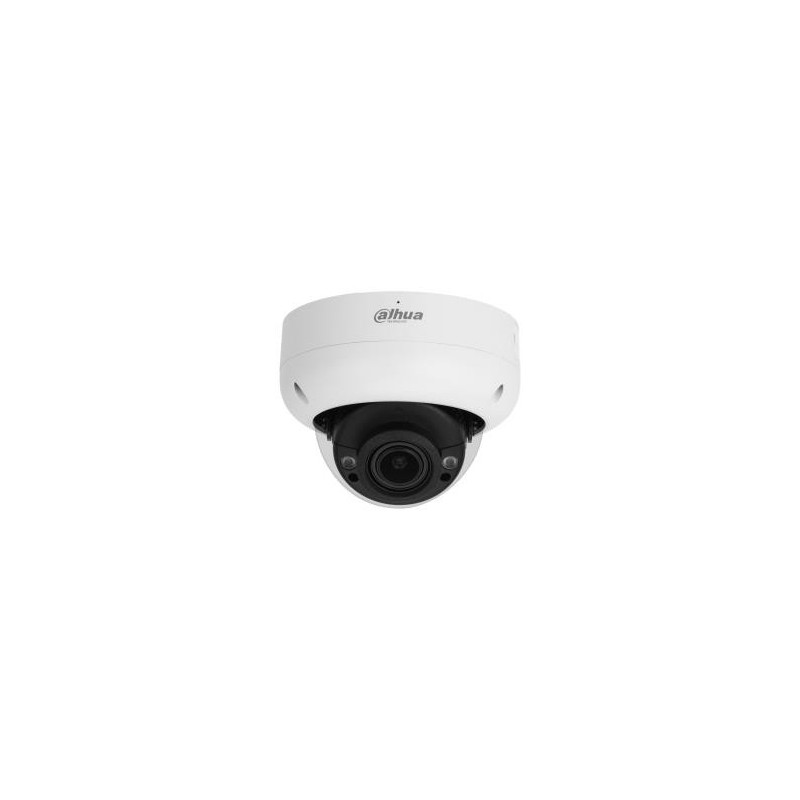

NET CAMERA 8MP IR DOME / IPC-HDBW3841R-ZAS27135S2 DAHUA
Product reference:
2-6923172542328
NET CAMERA 8MP IR DOME / IPC-HDBW3841R-ZAS27135S2 DAHUA
Product reference:
2-6923172542328
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
8MP IR Vari-focal Dome WizSense Network Camera
- 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 8MP (3840 × 2160) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic
- 12 VDC/PoE power supply facilitates installation
- IP67, IK10 protection
- SMD 4.0, AI SSA
| Summary | Dahua Technology WizSense IPC-HDBW3841R-ZAS-S2. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Tilt angle range: 0 - 75°, Pan range: 0 - 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.7 - 13.5 mm, Detect distance (wide): 85.3 m, Detect distance (tele): 280 m |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDBW3841R-ZAS-S2=S2 |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.19 |
| Form factor | Dome |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 355 ° |
| Camera shutter speed | 1/100000 s |
| Camera shutter type | Electronic |
| Pan range | 0 - 355 ° |
| Tilt angle range | 0 - 75 ° |
| White balance | Auto/Custom modes/Lamp/Manual/Natural/Outdoor |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 280 m |
| Detect distance (wide) | 85.3 m |
| Fixed focus | Yes |
| Focal length range | 2.7 - 13.5 mm |
| Identify distance (tele) | 28 m |
| Identify distance (wide) | 8.5 m |
| Maximum aperture number | 1.5 |
| Number of lenses | 1 |
| Observe distance (tele) | 112 m |
| Observe distance (wide) | 34.1 m |
| Recognize distance (tele) | 56 m |
| Recognize distance (wide) | 17 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
| Analog signal format system | NTSC |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.265 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726 |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bit rate range | 3 - 8192 Kbit/s |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Mirror | Yes |
| Password protection | Yes |
| Privacy protection | Yes |
| Video motion detection | No |
| Management software | Smart PSS; DSS; DMSS |
| Web-based management | Yes |
| DC output voltage | 12 |
| Power consumption (typical) | 2.7 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 mm |
| Height | 88.9 mm |
| Weight | 492 g |
| Package weight | 663 g |
| Number of cameras | 1 |
| Model | IPC-HDBW3841R-ZAS27135S2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005776 cubm |
| Unit Calculated Weight | 0.81 kg |
