Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
AcuPick
This industry-leading search technology effectively utilizes both frontend and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
| Active tampering alarm | Yes |
| Alarm input channels | 2 |
| Alarm input/output | Yes |
| Alarm output channels | 1 |
| Angle of rotation | 360 ° |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 - 16384 kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Bluetooth | No |
| Browser supported | IE 11+, Chrome 102+, Firefox 88+ |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Card reader integrated | Yes |
| Closest focusing distance | 0.13 m |
| Compatible memory cards | MicroSD (TransFlash) |
| Compliance certificates | CE |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| DC-in jack | Yes |
| Detect distance (tele) | 189.6 m |
| Detect distance (wide) | 83.4 m |
| Dynamic range | 120 dB |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Focal length range | 2.7 - 12 mm |
| Form factor | Bullet |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Height | 94.9 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Identify distance (tele) | 19 m |
| Identify distance (wide) | 8.3 m |
| IK code | IK10 |
| Image rotation angles | 270 ° |
| Image stabilizer | Yes |
| Image stabilizer type | Electronic Image Stabilization (EIS) |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Intrusion/People counting/Tripwire |
| International Protection (IP) code | IP67 |
| Iris | Yes |
| LED type | IR |
| Length | 279.8 mm |
| Lens distortion correction (LDC) | Yes |
| Lens viewing angle, diagonal | 133 - 53 ° |
| Lens viewing angle, horizontal | 113 - 47 ° |
| Lens viewing angle, vertical | 60 - 23 ° |
| Management software | DSS, DMSS, DoLynk Care |
| Manual | Yes |
| Maximum aperture number | 1.8 |
| Maximum memory card size | 1000 GB |
| Maximum resolution | 3840 x 2160 pixels |
| Minimum illumination | 0.0004 lx |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Motion detection system | SMD 4.0 |
| Mounting type | Pole clamp |
| Network access storage (NAS) | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Night vision | Yes |
| Night vision distance | 60 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of illumination LEDs | 4 |
| Number of lenses | 1 |
| Number of users | 20 user(s) |
| Observe distance (tele) | 75.8 m |
| Observe distance (wide) | 33.4 m |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/1.8 " |
| Package weight | 1390 g |
| Pan range | 0 - 360 ° |
| People counting function | Yes |
| Placement supported | Outdoor |
| Power consumption (max) | 12.9 W |
| Power consumption (Power over Ethernet (PoE)) | 5 W |
| Power consumption (Power over Ethernet (PoE)) (max) | 16.1 W |
| Power consumption (typical) | 3.7 W |
| Power source type | PoE,DC |
| Product colour | White |
| Product Net Weight | 1.09 kg |
| Progressive scan | Yes |
| Protection features | Dustproof/Waterproof |
| Quality of Service (QoS) support | Yes |
| Recognize distance (tele) | 37.9 m |
| Recognize distance (wide) | 16.7 m |
| Region of Interest (ROI) encoding | Yes |
| Rotating | Yes |
| Scene self-adaptation (SSA) | Yes |
| Security algorithms | 256-bit AES/SSL/TLS |
| Sensor type | CMOS |
| Shipping Box Depth | 33.5 cm |
| Shipping Box Height | 14 cm |
| Shipping Box Weight | 1.7 kg |
| Shipping Box Width | 14.5 cm |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Smart IR | Yes |
| Smart search function | Yes |
| Storage temperature (T-T) | -40 - 60 °C |
| Streaming method | Multicast |

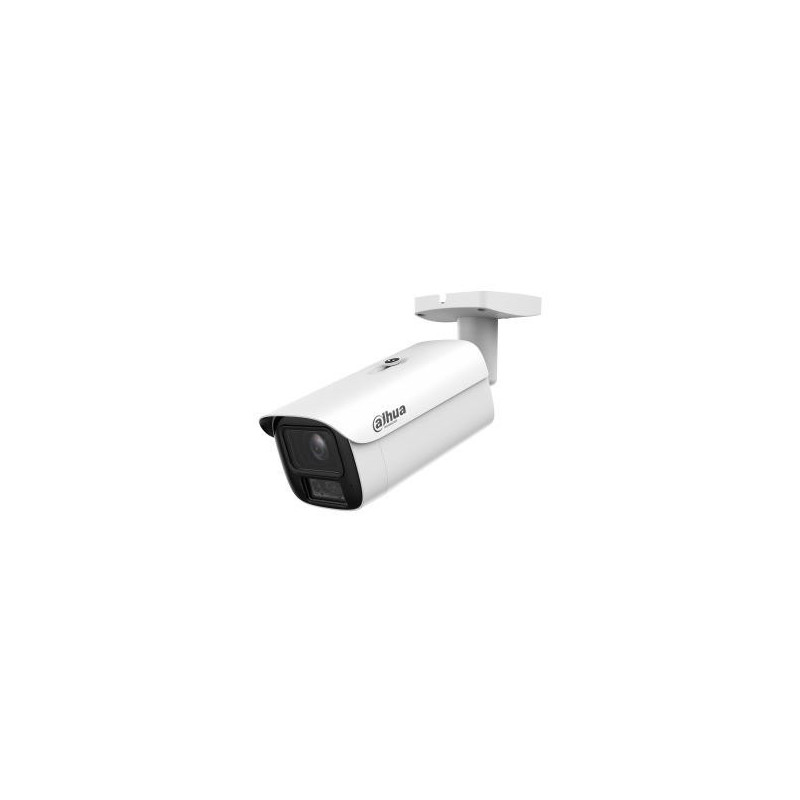

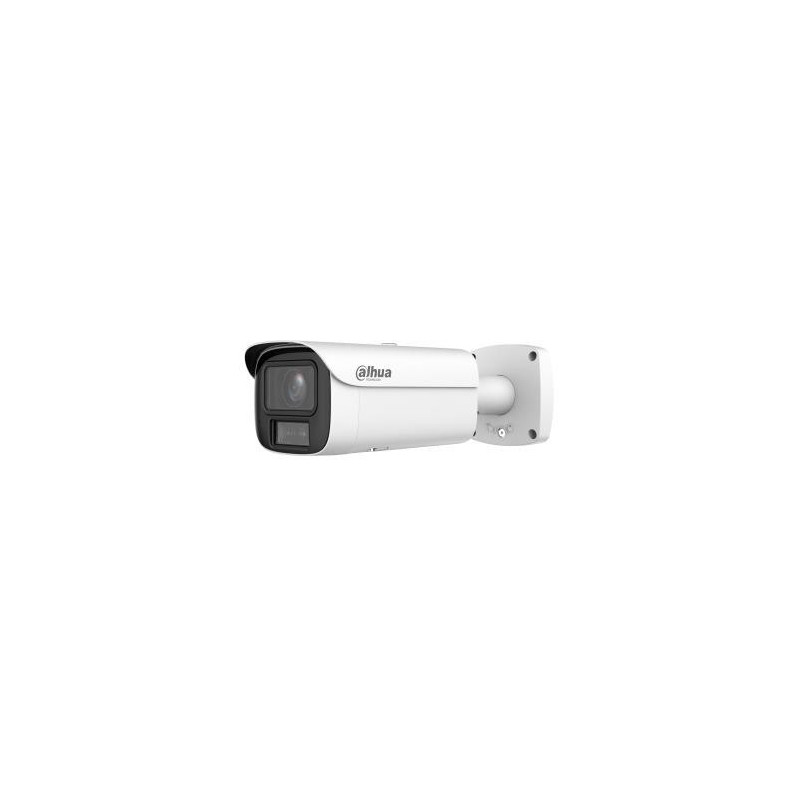

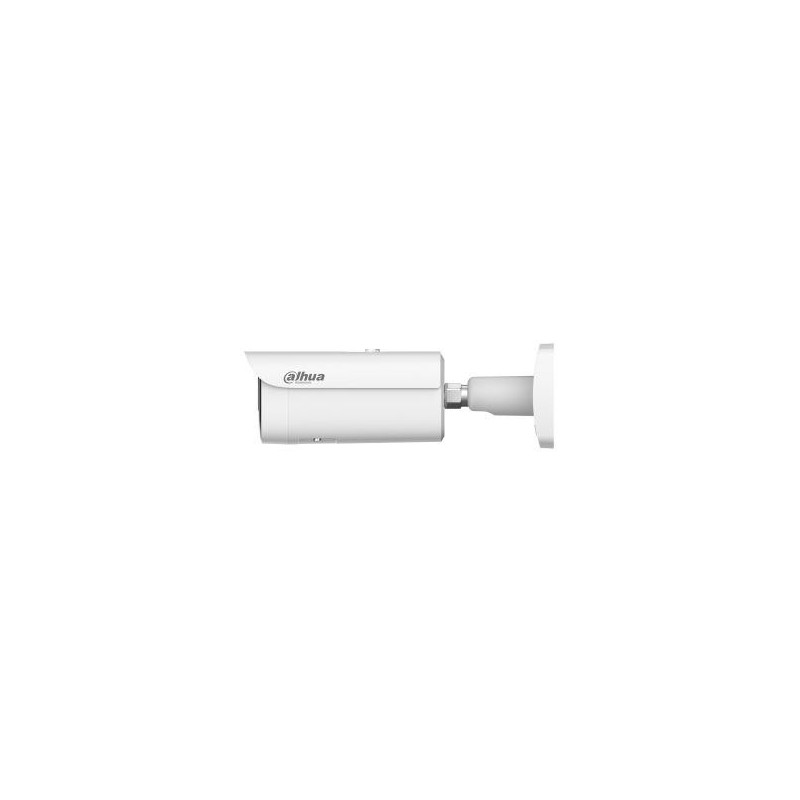

| Summary | Dahua Technology WizMind IPC-HFW5859E1-ZHE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 113 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 83.4 m, Detect distance (tele): 189.6 m |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Tilt angle range | 0 - 90 ° |
| Total megapixels | 8 MP |
| Type | IP security camera |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.145 |
| Unit Calculated Volume | 0.006801 cubm |
| Unit Calculated Weight | 1.7 kg |
| Unit Depth | 33.5 cm |
| Unit Height | 14 cm |
| Unit Width | 14.5 cm |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/network-products/network-cameras/wizmind-5-series/smart-dual-light/8mp/ipc-hfw5859e1-zhe-il |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video motion detection | Yes |
| Video recording | Yes |
| Video streaming | Yes |
| Weight | 1090 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
| Width | 96.7 mm |
