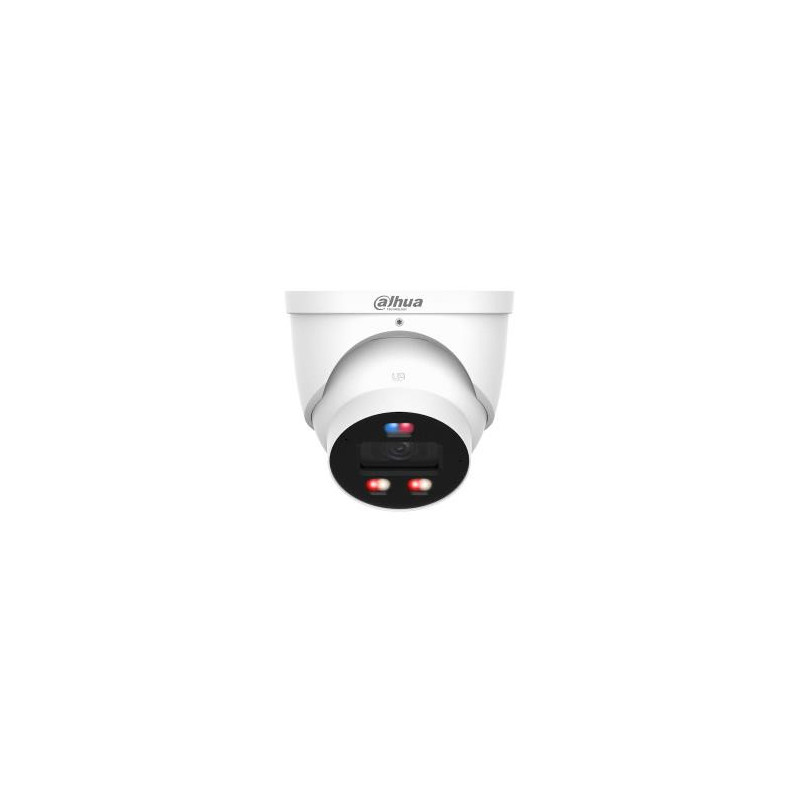

NET CAMERA 6MP IR EYEBALL / HDW3649H-ASPV0280B-PRO DAHUA
Product reference:
2-6939554976247
NET CAMERA 6MP IR EYEBALL / HDW3649H-ASPV0280B-PRO DAHUA
Product reference:
2-6939554976247
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
6MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera
- 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288 × 1850)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- Supports AI SSA and one-tap arming and disarming
- SMD area can be set in warm light areas that support triggering alarms
| Alarm input channels | 1 |
| Alarm input/output | Yes |
| Alarm output channels | 1 |
| Angle of rotation | 360 ° |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Camera shutter speed | 1/100000 s |
| Camera shutter type | Electronic |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Diameter | 122 mm |
| Digital watermark | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Fixed focus | Yes |
| Form factor | Turret |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Height | 110.9 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| International Protection (IP) code | IP67 |
| LED type | IR/White |
| Management software | Smart PSS; DSS; DMSS |
| Maximum memory card size | 256 GB |
| Maximum resolution | 3200 x 1800 pixels |
| Minimum illumination | 0.0003 lx |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Model | HDW3649H-ASPV0280B-PRO |
| Mounting type | Ceiling/wall |
| Night vision | Yes |
| Night vision distance | 30 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of illumination LEDs | 2 |
| Number of lenses | 1 |
| Number of Privacy masking areas | 8 |
| Number of sensors | 1 |
| Number of users | 20 user(s) |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.7 " |
| Package weight | 915 g |
| Pan range | 0 - 360 ° |
| Placement supported | Indoor & outdoor |
| Power consumption (max) | 8.3 W |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power consumption (typical) | 3.7 W |
| Power source type | DC,PoE |
| Product colour | White |
| Product Net Weight | 0.8 kg |
| Progressive scan | Yes |
| RAM capacity | 512 MB |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 128 MB |
| Security algorithms | HTTPS |
| Sensor type | CMOS |
| Shipping Box Depth | 80 cm |
| Shipping Box Height | 31 cm |
| Shipping Box Weight | 21.2999992370605 kg |
| Shipping Box Width | 33 cm |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Smart IR | Yes |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology WizSense HDW3649H-AS-PV-PRO. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0003 lx, Angle of rotation: 360°, Tilt angle range: 0 - 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Night vision distance: 30 m, LED type: IR/White |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1536 x 2048/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/3200 x 1800/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Tilt angle range | 0 - 78 ° |
| Total megapixels | 6 MP |
| Type | IP security camera |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.16 |
| Unit Calculated Volume | 0.004092 cubm |
| Unit Calculated Weight | 1.06 kg |
| Units per Shipping Box | 20 |
| Vendor Homepage | https://www.dahuasecurity.com/la/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3649H-AS-PV-PRO |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video motion detection | Yes |
| Video streaming | Yes |
| Web-based management | Yes |
| Weight | 745 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
