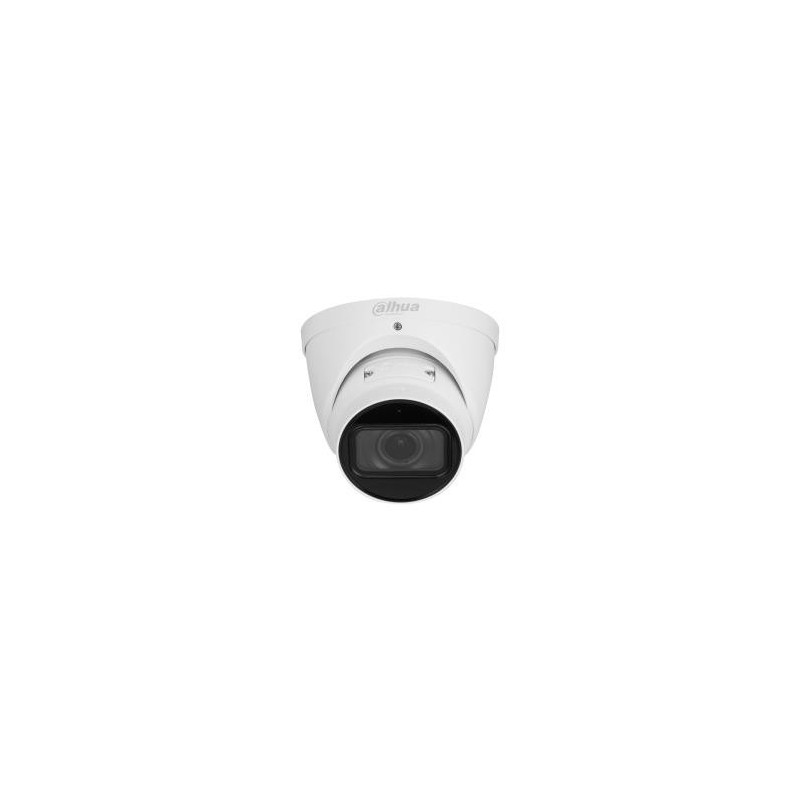

NET CAMERA 5MP IR EYEBALL / IPC-HDW5541T-ZE-27135-S3 DAHUA
Product reference:
2-6923172587497
NET CAMERA 5MP IR EYEBALL / IPC-HDW5541T-ZE-27135-S3 DAHUA
Product reference:
2-6923172587497
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata,
smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI ISP technology and has the Deeplight night vision effect. The camera
is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
- 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 5MP (2960×1668) @25/30 fps
- Built-in IR LED, and the max. illumination distance is 40 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc
- Supports max. 1 TB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 protection
- SMD 3.0
| Summary | Dahua Technology WizMind IPC-HDW5541T-ZE. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 114-32°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2960 x 1668 pixels. Detect distance: 210 m, Observe distance: 84 m, Recognize distance: 42 m |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HDW5541T-ZE=S3 |
| Unit Box Height | 0.136 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.157 |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| People counting function | Yes |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 138-36 ° |
| Lens viewing angle, horizontal | 114-32 ° |
| Lens viewing angle, vertical | 58-17 ° |
| Minimum illumination | 0.0005 lx |
| Number of Privacy masking areas | 8 |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 78 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of effective pixels (H x V) | 2960 x 1668 pixels |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 m |
| Detect distance | 210 m |
| Focal length range | 2.7 - 13.5 mm |
| Identify distance | 21 m |
| Maximum aperture number | 1.5 |
| Observe distance | 84 m |
| Recognize distance | 42 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2960 x 1668 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video recording | Yes |
| Bit rate range | 12 - 16384 Kbit/s |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RAM capacity | 1000 MB |
| ROM capacity | 4000 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital watermark | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 8.5 W |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power consumption (typical) | 3.7 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | -40 - 60 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage temperature (T-T) | 0 - 95 °C |
| Diameter | 122 mm |
| Height | 108.3 mm |
| Weight | 700 g |
| Package weight | 960 g |
| Number of cameras | 1 |
| Model | IPC-HDW5541T-ZE-27135-S3 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00331 cubm |
| Unit Calculated Weight | 0.94 kg |
