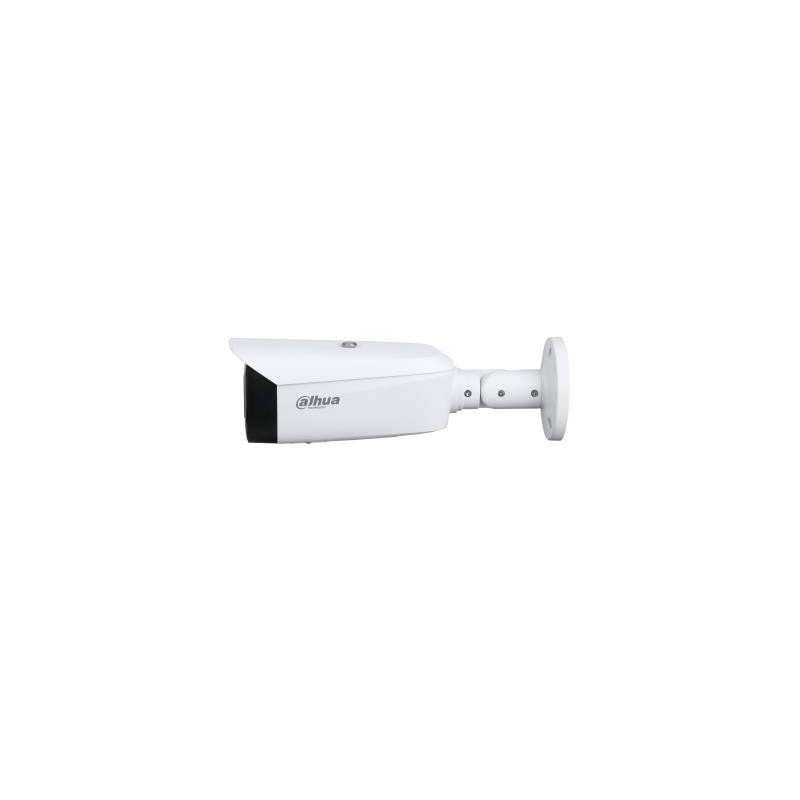

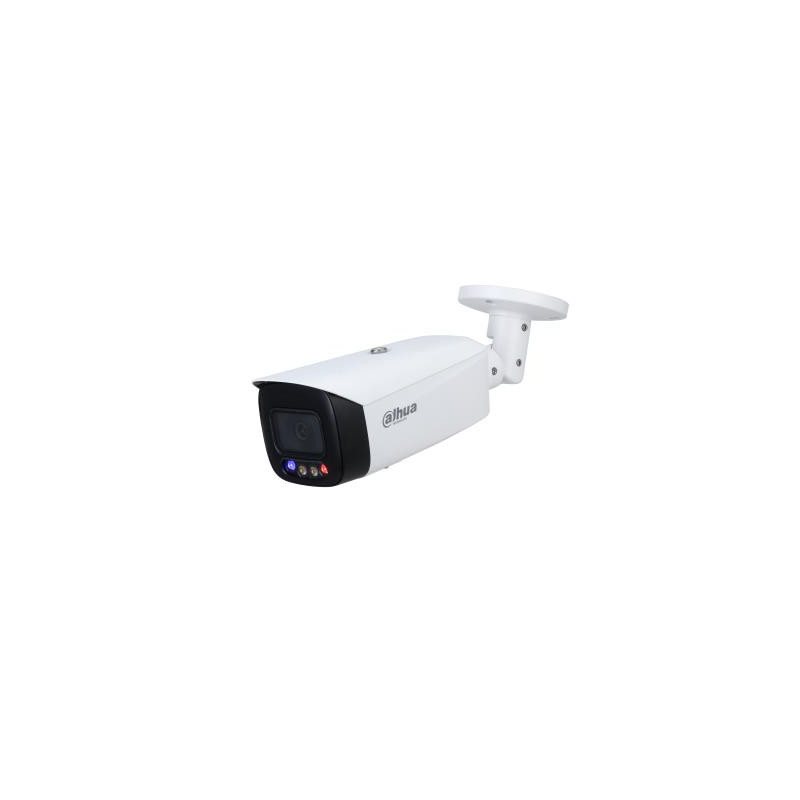

NET CAMERA 5MP IR BULLET AI / HFW3549T1-AS-PV-0280B-S5 DAHUA
Product reference:
2-6923172525536
NET CAMERA 5MP IR BULLET AI / HFW3549T1-AS-PV-0280B-S5 DAHUA
Product reference:
2-6923172525536
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
- 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
| Alarm input/output | Yes |
| Angle of rotation | 360 ° |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 - 8192 Kbps, 12 - 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera tilt control | Yes |
| Certification | CE-LVD: EN62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B |
| Closest focusing distance | 1.2 m |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Depth | 84.7 mm |
| Detect distance | 67.4 m |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fixed focal length | 2.8 mm |
| Form factor | Bullet |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal/Plastic |
| Identify distance | 6.7 m |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Internal memory | 512 MB |
| International Protection (IP) code | IP67 |
| LED type | IR |
| Length | 288.4 mm |
| Lens viewing angle, diagonal | 129 ° |
| Lens viewing angle, horizontal | 98 ° |
| Lens viewing angle, vertical | 71 ° |
| Maximum aperture number | 1 |
| Maximum resolution | 2592 x 1944 pixels |
| Minimum illumination | 0.003 lx |
| Mirror | Yes |
| Mounting type | Ceiling/wall |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Night vision | Yes |
| Night vision distance | 40 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of lenses | 1 |
| Number of sensors | 1 |
| Number of users | 20 user(s) |
| Observe distance | 27 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.7 " |
| Package weight | 1230 g |
| Pan range | 0 - 360 ° |
| Placement supported | Outdoor |
| Power consumption (max) | 2 W |
| Power consumption (Power over Ethernet (PoE)) | 2.6 W |
| Power source type | DC,PoE |
| Privacy masking | Yes |
| Product colour | White |
| Product Net Weight | 1 kg |
| Progressive scan | Yes |
| Quality of Service (QoS) support | Yes |
| Recognize distance | 13.5 m |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 128 MB |
| Sensor type | CMOS |
| Shipping Box Depth | 57.5 cm |
| Shipping Box Height | 32 cm |
| Shipping Box Weight | 11.3 kg |
| Shipping Box Width | 35.5 cm |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology WizSense IPC-HFW3549T1-AS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 98°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 67.4 m, Observe distance: 27 m, Recognize distance: 13.5 m |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Tilt angle range | 0 - 90 ° |
| Total megapixels | 5 MP |
| Type | IP security camera |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.15 |
| Unit Calculated Volume | 0.008165 cubm |
| Unit Calculated Weight | 1.41 kg |
| Units per Shipping Box | 8 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Active-Deterrence/IPC-HFW3549T1-AS-PV |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video motion detection | Yes |
| Video streaming | Yes |
| Voice codecs | AAC/G.711a/G.711Mu/G.723/G.726/PCM |
| Web-based management | Yes |
| Weight | 1000 g |
| White balance | Auto/Custom modes/Manual/Natural/Outdoor |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
| Width | 94.4 mm |
