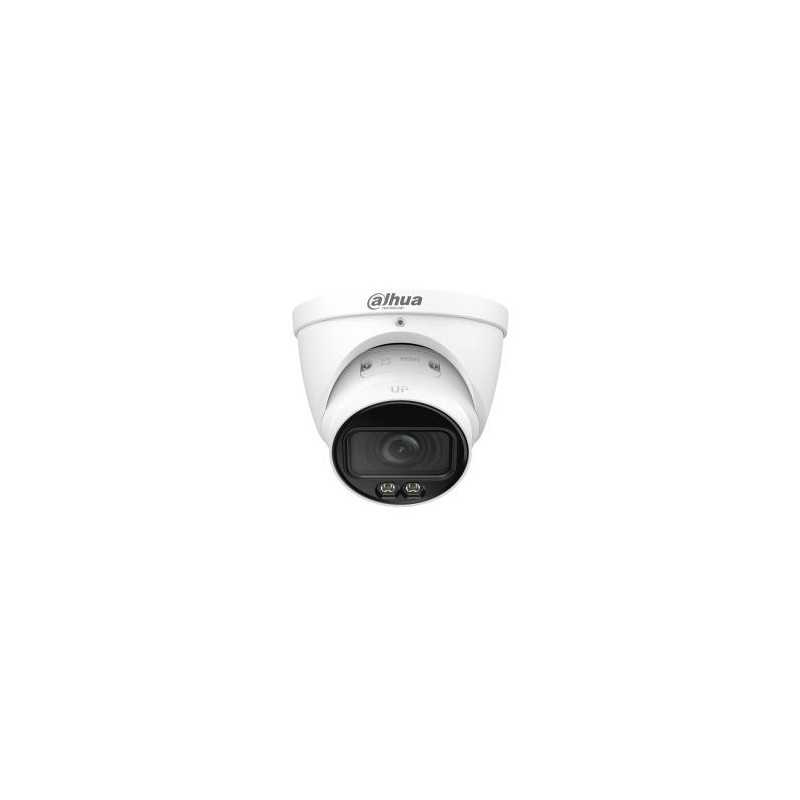

NET CAMERA 5MP EYEBALL / IPC-HDW5559T-ZE-IL-27135 DAHUA
Product reference:
2-6937552412071
NET CAMERA 5MP EYEBALL / IPC-HDW5559T-ZE-IL-27135 DAHUA
Product reference:
2-6937552412071
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- High-Quality Imaging with 5MP Resolution
- Xinghan Vision Models: Comprehensive Enhancement of Target Detection, Imaging
- Longer Detection Distance with Xinghan Vision Models
- Supports Over 7 AI Functions, Applicable for Multi-scenario Targets Detection and Analysis
- Built-in Mic for Real-Time Audio Security
| Angle of rotation | 360 ° |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in light | Yes |
| Built-in microphone | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera tilt control | Yes |
| Card reader integrated | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Closest focusing distance | 0.3 m |
| Compatible memory cards | MicroSD (TransFlash) |
| Compliance certificates | CE |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| DC-in jack | Yes |
| Detect distance (tele) | 202 m |
| Detect distance (wide) | 65.4 m |
| Diameter | 122 mm |
| Digital watermark | Yes |
| Dynamic range | 120 dB |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fixed focal length | 2.8 mm |
| Form factor | Turret |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Identify distance (tele) | 20.2 m |
| Identify distance (wide) | 6.5 m |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| International Protection (IP) code | IP67 |
| LED type | IR |
| Length | 108.3 mm |
| Lens type | Varifocal |
| Lens viewing angle, diagonal | 134 - 37 ° |
| Lens viewing angle, horizontal | 110 - 32 ° |
| Lens viewing angle, vertical | 57 - 18 ° |
| Manual | Yes |
| Maximum aperture number | 1.6 |
| Maximum memory card size | 1000 GB |
| Maximum resolution | 2960 x 1668 pixels |
| Minimum illumination | 0.0005 lx |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Mounting type | Ceiling/Wall/Pole |
| Network access storage (NAS) | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Night vision | Yes |
| Night vision distance | 50 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of users | 20 user(s) |
| Observe distance (tele) | 80.8 m |
| Observe distance (wide) | 26.1 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.7 " |
| Package weight | 960 g |
| Pan range | 0 - 360 ° |
| People counting function | Yes |
| Placement supported | Outdoor |
| Power consumption (max) | 15.2 W |
| Power consumption (Power over Ethernet (PoE)) | 15.9 W |
| Power consumption (typical) | 6.6 W |
| Power source type | DC |
| Product colour | White |
| Progressive scan | Yes |
| Protection features | Dustproof/Waterproof |
| Quality of Service (QoS) support | Yes |
| RAM capacity | 2000 MB |
| Recognize distance (tele) | 40.4 m |
| Recognize distance (wide) | 13.1 m |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 4000 MB |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Smart IR | Yes |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Streaming method | Multicast |
| Summary | Dahua Technology IPC-HDW5559T-ZE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 110 – 32. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.8 mm, Detect distance (wide): 65.4 m, Detect distance (tele): 202 m |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Tilt angle range | 0 - 78 ° |
| Total megapixels | 5 MP |
| Type | IP security camera |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.16 |
| Unit Calculated Volume | 0.003456 cubm |
| Unit Calculated Weight | 0.92 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/network-products/network-cameras/wizmind-5-series/smart-dual-light/5mp/ipc-hdw5559t-ze-il |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video motion detection | Yes |
| Video recording | Yes |
| Video streaming | Yes |
| Weight | 700 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
