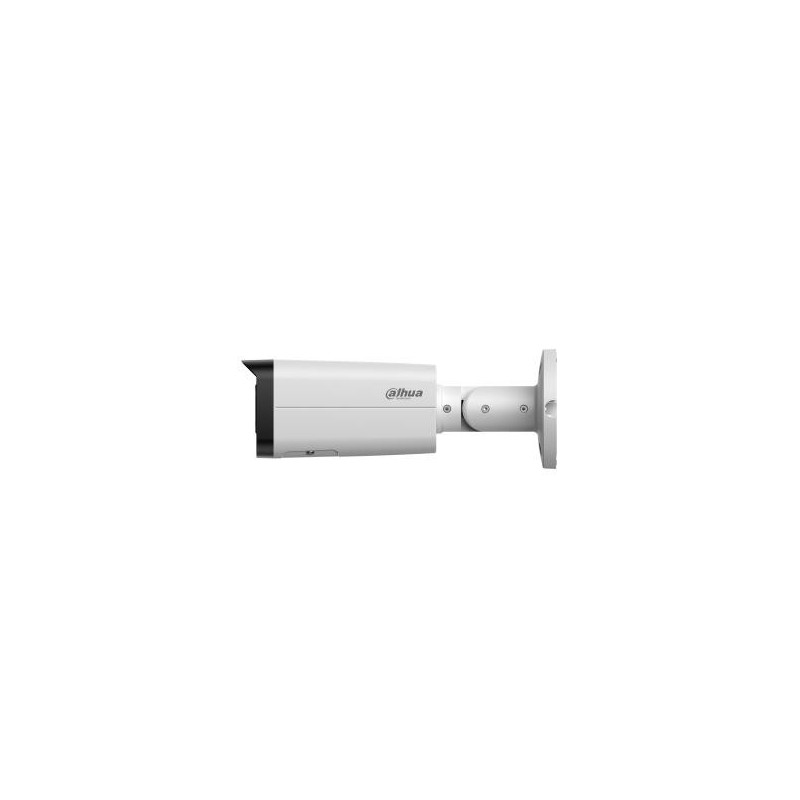

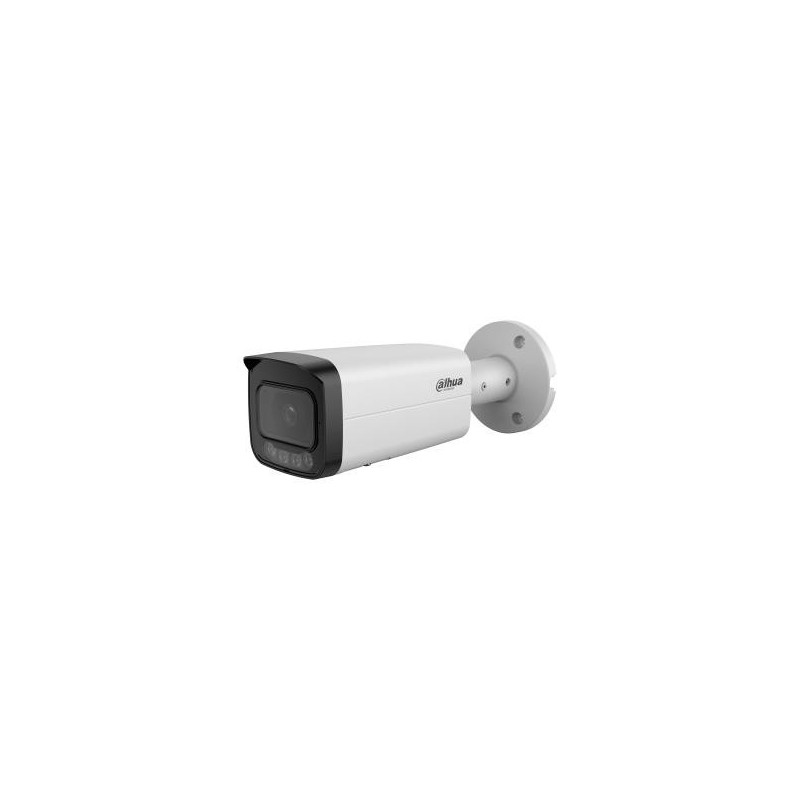

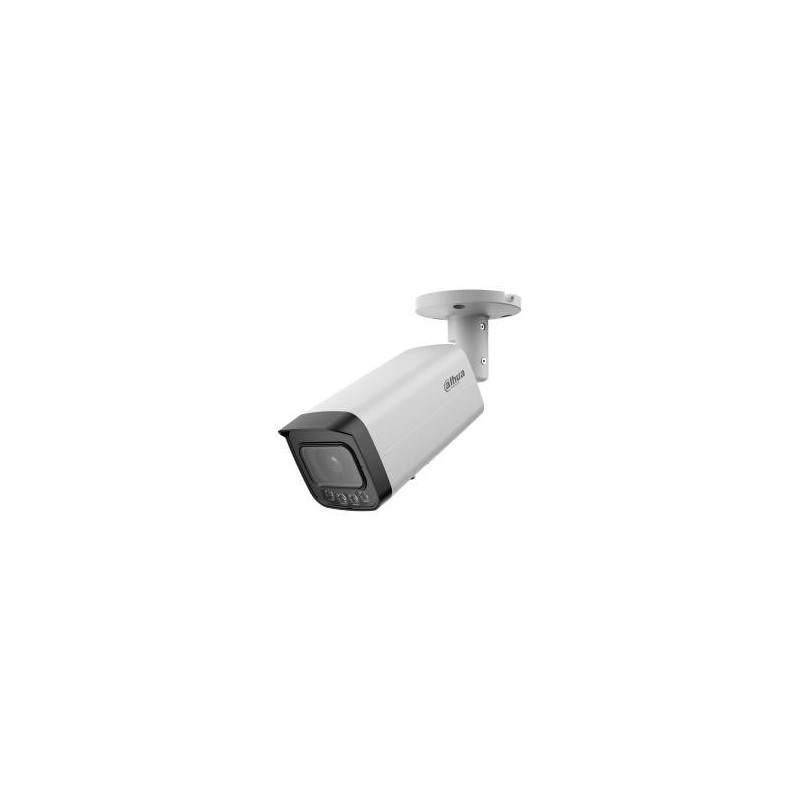

NET CAMERA 5MP BULLET / HFW5559T-ASE-IL-0280B DAHUA
Product reference:
2-6937552411340
NET CAMERA 5MP BULLET / HFW5559T-ASE-IL-0280B DAHUA
Product reference:
2-6937552411340
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- High-Quality Imaging with 5MP Resolution
- Xinghan Vision Models: Comprehensive Enhancement of Target Detection, Imaging
- Longer Detection Distance with Xinghan Vision Models
- Supports Over 7 AI Functions, Applicable for Multi-scenario Targets Detection and Analysis
- Built-in Mic for Real-Time Audio Security
| Alarm input channels | 1 |
| Alarm input/output | Yes |
| Alarm output channels | 1 |
| Angle of rotation | 360 ° |
| Audio formats supported | DSS |
| Audio input | 1 channel (RCA) |
| Audio input channels | 1.0 channels |
| Audio output | 1 channel (RCA) |
| Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 3 kbps-16384 kbps, H.265: 3 kbps-16384 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in light | Yes |
| Built-in microphone | Yes |
| Cabling technology | 10/100Base-T(X) |
| Camera shutter speed | 1/3 - 1/100,000 s |
| Card reader integrated | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
| Closest focusing distance | 1 m |
| Cloud-managed | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Depth | 238 mm |
| Detect distance | 61.6 m |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fixed focus | Yes |
| Focal length range | 2.8 mm |
| Form factor | Bullet |
| Frame rate | 25 fps |
| Gain control type | Auto/Manual |
| Height | 90.7 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| Identify distance | 6.2 m |
| IK code | IK10 |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Intrusion/People counting/Tripwire |
| International Protection (IP) code | IP67 |
| LED type | IR |
| Lens mount interface | M12 |
| Lens viewing angle, diagonal | 127.1 ° |
| Lens viewing angle, horizontal | 108.4 ° |
| Lens viewing angle, vertical | 60 ° |
| Maximum aperture number | 1.6 |
| Maximum memory card size | 1000 GB |
| Maximum resolution | 2960 x 1668 pixels |
| Minimum illumination | 0.0009 lx |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Mounting type | Ceiling/wall |
| Night vision | Yes |
| Night vision distance | 80 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of microphones | 1 |
| Number of Privacy masking areas | 4 |
| Observe distance | 24.6 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.7 " |
| Package type | Box |
| Package weight | 1090 g |
| Pan range | 0 - 360 ° |
| People counting function | Yes |
| Placement supported | Outdoor |
| Power consumption (max) | 13.3 W |
| Power consumption (Power over Ethernet (PoE)) | 15.6 W |
| Power source type | PoE,DC |
| Privacy masking | Yes |
| Product colour | White |
| Progressive scan | Yes |
| RAM capacity | 2000 MB |
| Recognize distance | 12.3 m |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 4000 MB |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology IPC-HFW5559T-ASE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0009 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.6 m, Observe distance: 24.6 m, Recognize distance: 12.3 m |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Tilt angle range | 0 - 90 ° |
| Total megapixels | 5 MP |
| Type | IP security camera |
| Unit Box Height | 0.111 |
| Unit Box Length | 0.299 |
| Unit Box Width | 0.119 |
| Unit Calculated Volume | 0.005054 cubm |
| Unit Calculated Weight | 1.14 kg |
| Units per Shipping Box | 10 |
| Vendor Homepage | https://www.dahuasecurity.com/products/network-products/network-cameras/wizmind-5-series/smart-dual-light/5mp/ipc-hfw5559t-ase-il |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Video streaming | Yes |
| Voice codecs | G.711a/G.711Mu/G.723/G.726/PCM |
| Web browser | Yes |
| Weight | 835 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
| Width | 90.7 mm |
