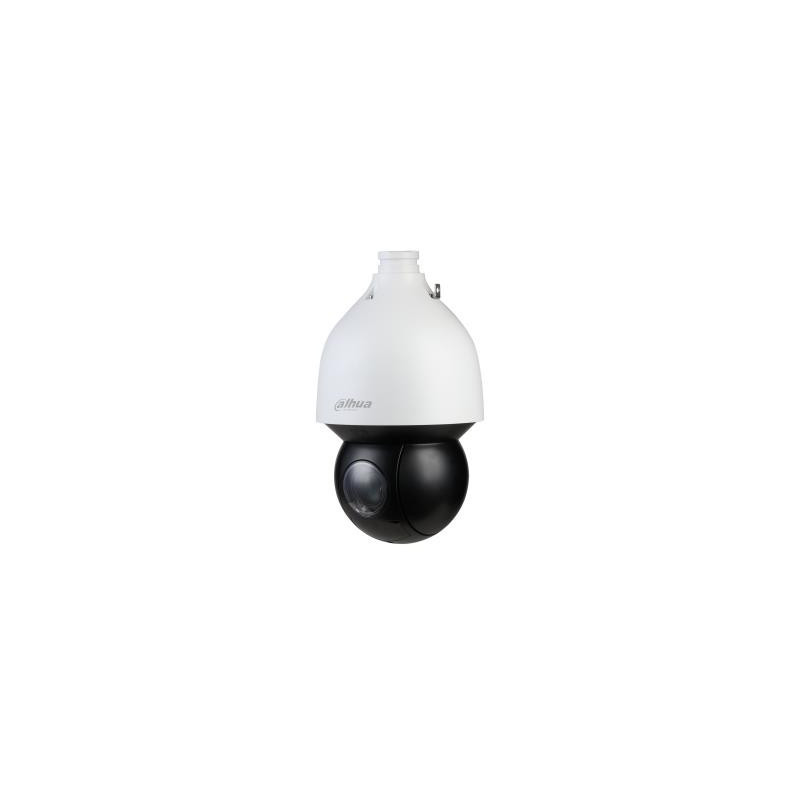

NET CAMERA 4MP PTZ IR DOME AI / SD5A425GB-HNR DAHUA
Product reference: 2-6923172599735

NET CAMERA 4MP PTZ IR DOME AI / SD5A425GB-HNR DAHUA

Product reference: 2-6923172599735
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
820,39
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview
Unique and elegant, the black semicircular sphere discreetly monitorsfrom a distance without drawing undue attention to itself. It has a powerful optical zoom, and accurate pan, tilt and zoom capabilities, providing an all in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions. The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the day, and True WDR for locations with direct sunlight and glare.

Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experienceю

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, face mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.

Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Protection (IP67, TVS 6000 V)
IP67, TVS 6000 V lightning proof, surge protection, and voltage transient protection.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

  • Powerful 25× optical zoom
  • Starlight Technology
  • Max. 25/30fps@4MP
  • IR distance up to 150 m
  • Deep-learning-based perimeter protection
  • Auto-tracking 3.0 and IVS
  • SMD 4.0

AC input voltage 24 V
Alarm input/output Yes
Audio formats supported AAC/PCM
Back Light Compensation (BLC) Yes
Bit rate 32- 8192Kbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bluetooth No
Built-in HDD No
Camera pan control Yes
Camera tilt control Yes
Card reader integrated Yes
Certification CE: EN55032/EN55024/EN50130-4
FCC: 15 B,ANSI C63.4- 2014
Closest focusing distance 0.1 m
Compatible memory cards MicroSD (TransFlash)
Connectivity technology Wired
Day/night mode Yes
Detect distance 1724 m
Diameter 190 mm
Digital zoom 16 x
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Focal length range 5.8 - 145 mm
Focus Motorized/Manual
Form factor Dome
Frame rate 30 fps
Gain control type Auto/Manual
Headphone outputs 1
Height 332 mm
Highlight Compensation (HLC) Yes
Housing material Metal
Identify distance 172 m
IK code IK10
Image stabilizer Yes
Intelligent Video Surveillance (IVS) system features Abandoned object/Intrusion/Missing object/Scene change/Tripwire
Internal memory 1024 MB
International Protection (IP) code IP67
LED type IR
Lens viewing angle, diagonal 63.3 °
Lens viewing angle, horizontal 59.8 °
Lens viewing angle, vertical 33.7 °
Maximum aperture number 4
Maximum memory card size 256 GB
Maximum resolution 2560 x 1440 pixels
Microphone in Yes
Minimum aperture number 1.6
Model DH-SD5A425GB-HNR
Mounting type Ceiling/wall
Networking standards IEEE 802.1x
Night vision Yes
Night vision distance 150 m
Noise reduction Yes
Noise reduction technology 3D noise reduction
Number of cameras 1
Number of illumination LEDs 4
Number of lenses 1
Number of sensors 1
Number of users 20 user(s)
Observe distance 689 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 70 °C
Optical sensor size 1/1.8 "
Optical zoom 25 x
Package weight 8000 g
Pan preset speed 400 °/sec
Pan range 0 - 360 °
Pan speed 300 °/sec
Placement supported Outdoor
Power consumption (max) 20 W
Power source type AC,PoE
Privacy masking Yes
Product colour White
Product Net Weight 4.7 kg
Progressive scan Yes
PTZ control Yes
PTZ modes 8 Tour/Preset point
Quality of Service (QoS) support Yes
Recognize distance 344 m
ROM capacity 4000 MB
Sensor type CMOS
Shipping Box Depth 55 cm
Shipping Box Height 29 cm
Shipping Box Weight 14.8999996185303 kg
Shipping Box Width 54 cm
Streaming method Multicast/Unicast
Summary Dahua Technology DH-SD5A425GB-HNR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 59.8°, Lens viewing angle, vertical: 33.7°, Lens viewing angle, diagonal: 63.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 25x, Digital zoom: 16x, Detect distance: 1724 m
Supported graphics resolutions 1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/352 x 240/352 x 288/704 x 480/704 x 576
Supported network protocols IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Tilt angle range -15 - 90 °
Tilt speed 200 °/sec
Total megapixels 4 MP
Type IP security camera
Unit Box Height 0.505
Unit Box Length 0.26
Unit Box Width 0.265
Unit Calculated Volume 0.04306 cubm
Unit Calculated Weight 7.45 kg
Units per Shipping Box 2
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD5/SD5A425GB-HNR
Video compression formats H.264/H.264+/H.265/H.265+/M-JPEG
Video motion detection Yes
Video streaming Yes
Voice codecs G.711a/G.711Mu/G.722.1/G.723/G.726/G.729
Web browser Yes
Web-based management Yes
Weight 4700 g
White balance Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp
Wi-Fi No
Wide Dynamic Range (WDR) Yes
Zoom capability Yes
