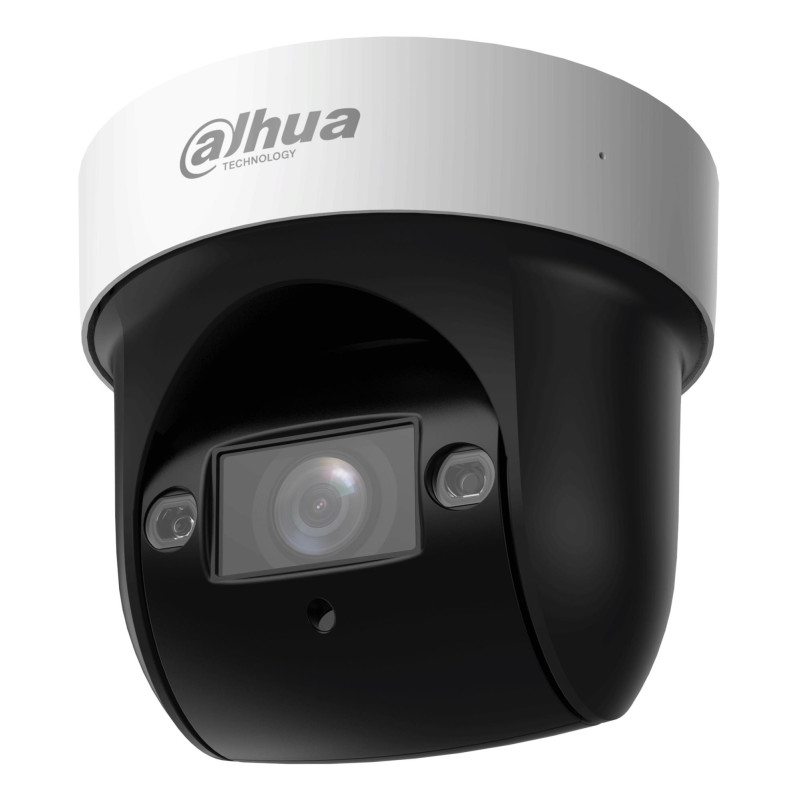

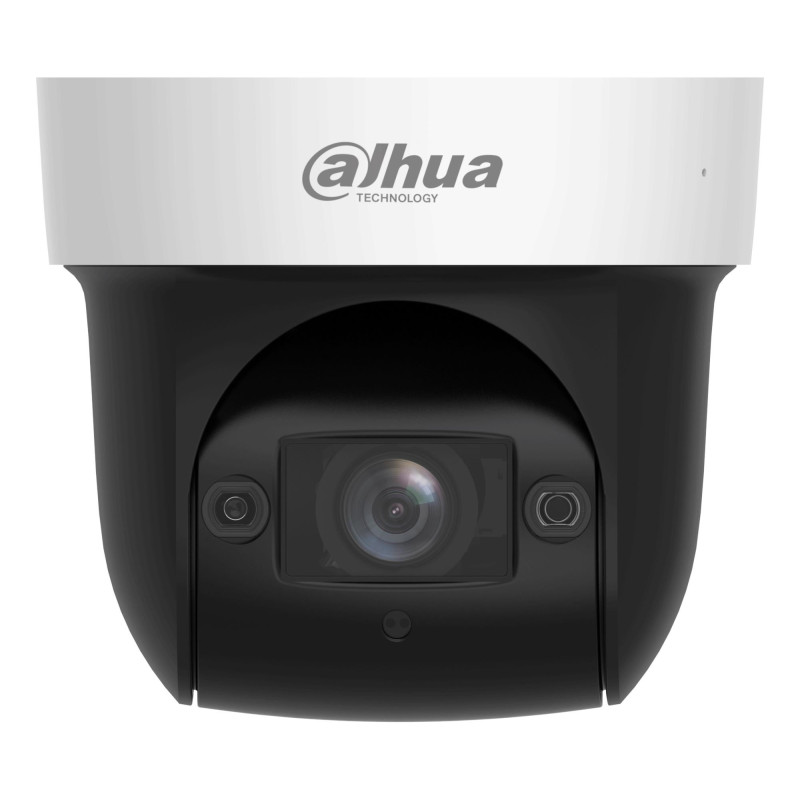

NET CAMERA 4MP PTZ DOME / SD29404DB-GNY DAHUA
Product reference: 2-6923172569080

NET CAMERA 4MP PTZ DOME / SD29404DB-GNY DAHUA

Product reference: 2-6923172569080
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
34636
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a
flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart
H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.

System Overview
Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

SMD 3.0
Empowered by Deep-Learning Algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.

Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology. For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.

  • 1/2.8" 4Megapixel CMOS
  • Max. 25/30fps@4MP
  • IR distance up to 50 m
  • 4x optical zoom
  • WDR
  • SMD 3.0
  • Built-in Mic
  • PoE

Summary Dahua Technology DH-SD29404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle range: 0 - 90°, Tilt speed: 60 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 171 m
Vendor Homepage https://www.dahuasecurity.com/search/products?keyword=DH-SD29404DB-GNY
Unit Box Height 0.17
Unit Box Length 0.175
Unit Box Width 0.175
Fog proof Yes
Form factor Dome
Mounting type Ceiling/wall
Product colour Black/White
Certification CE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/
EN61000-3-3
Connectivity technology Wired
Day/night mode Yes
Placement supported Indoor & outdoor
PTZ control Yes
PTZ modes 5 Pattern/5 Scan/8 Tour
PTZ protocols DH-SD
Type IP security camera
Wide Dynamic Range (WDR) Yes
Camera shutter speed 1/1 - 1/30000 s
Camera shutter type Electronic
Minimum illumination 0.0005 lx
Pan preset speed 100 °/sec
Pan range 0 - 360 °
Pan speed 100 °/sec
Preset programs quantity 300
Tilt angle range 0 - 90 °
Tilt preset speed 60 °/sec
Tilt speed 60 °/sec
White balance Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Optical sensor size 1/2.8 "
Progressive scan Yes
Sensor type CMOS
Closest focusing distance 1.5 m
Detect distance 171 m
Digital zoom 16 x
Focal length range 2.8 - 12 mm
Focus Motorized/Manual
Identify distance 17 m
Maximum aperture number 1.6
Observe distance 67 m
Optical zoom 4 x
Recognize distance 34 m
Zoom capability Yes
Night vision Yes
Night vision distance 50 m
Automatic gain control Yes
Back Light Compensation (BLC) Yes
Bit rate H264: 24 Kbps-13056 Kbps H265: 9 Kbps-7936 Kbps
Bit rate control Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate 30 fps
Gain control type Auto/Manual
Highlight Compensation (HLC) Yes
Maximum resolution 2560 x 1440 pixels
Noise reduction Yes
Noise reduction technology 2D noise reduction,3D noise reduction
Region of Interest (ROI) encoding Yes
Supported graphics resolutions 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes 1080p/720p
Total megapixels 2 MP
Video compression formats H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming Yes
Audio codecs G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Built-in microphone Yes
Bluetooth No
Cabling technology 10/100Base-T(X)
Client interoperability CGI; SDK; ONVIF (Profile S&G&T); P2P
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Networking standards IEEE 802.3af
Number of users 20 user(s)
Quality of Service (QoS) support Yes
Streaming method Multicast/Unicast
Supported network protocols FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Wi-Fi No
Built-in HDD No
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash)
Internal memory 512 MB
ROM capacity 128 MB
Interface RJ-45
Intelligent Video Surveillance (IVS) system features Abandoned object/Face detection/Intrusion/Missing object/Tripwire
Motion sensor Yes
Management software Smart PSS, DSS
Web browser Yes
Power consumption (max) 10 W
Power consumption (typical) 5 W
Power over Ethernet (PoE) Yes
Power source type PoE
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -30 - 50 °C
Mobile operating systems supported Android/iOS
Diameter 132.1 mm
Height 117.4 mm
Weight 713 g
Package weight 1000 g
Number of cameras 1
Browser supported IE, Chrome, Firefox, Safari
Number of video streams 3
Model SD29404DB-GNY
Units per Shipping Box 10
Unit Calculated Volume 0.006512 cubm
Unit Calculated Weight 1.09 kg
