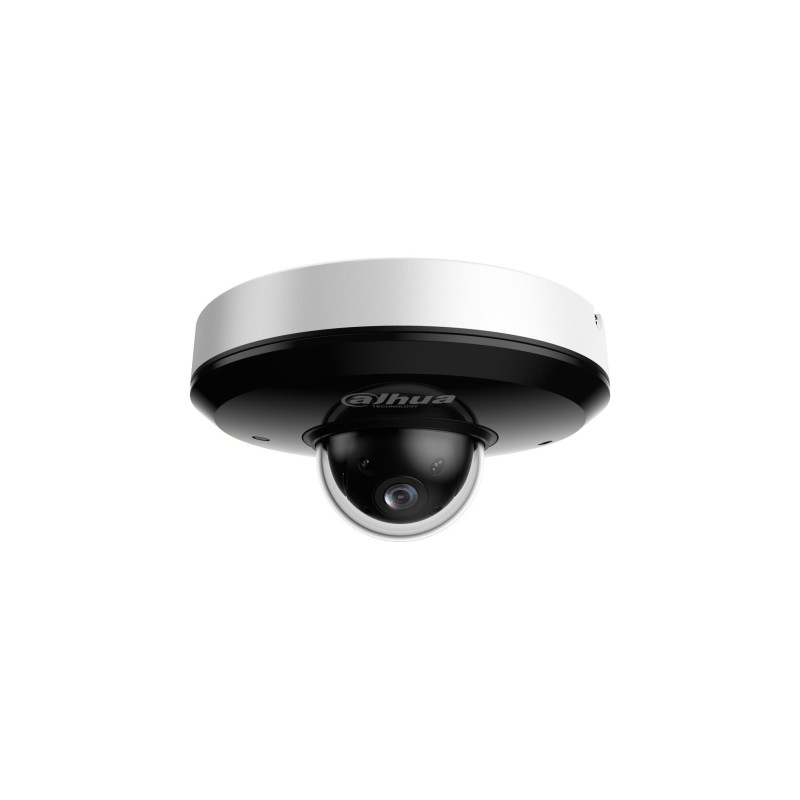

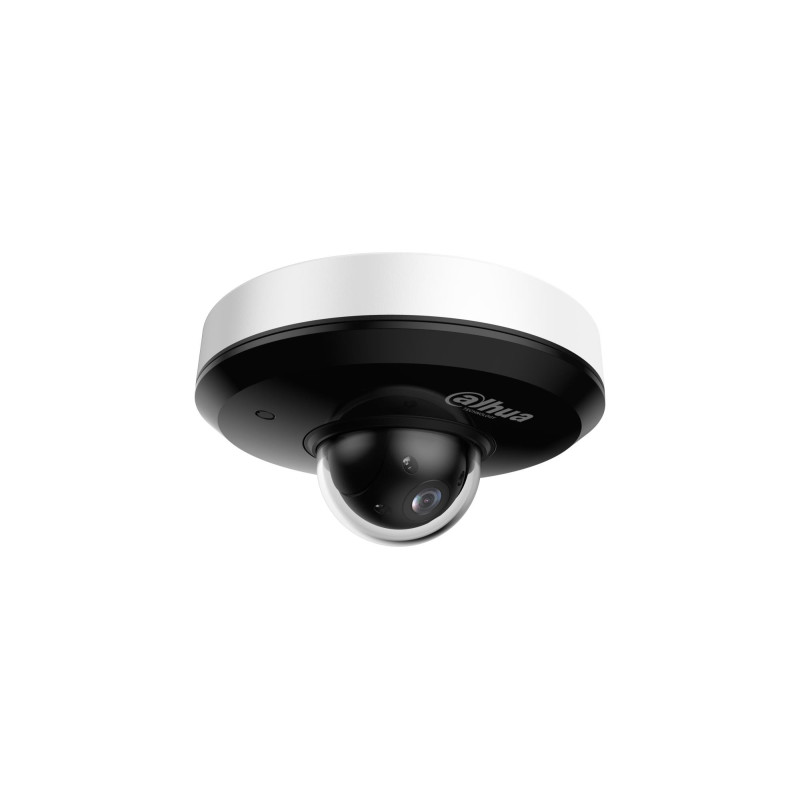

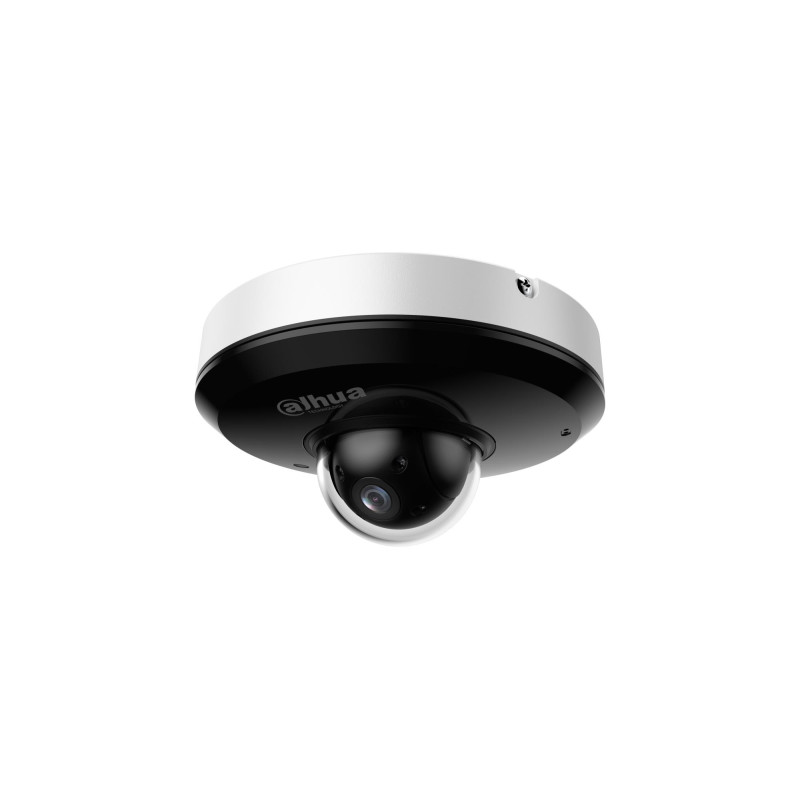

NET CAMERA 4MP PTZ DOME / SD1A404DB-GNY DAHUA
Product reference:
2-6923172590367
NET CAMERA 4MP PTZ DOME / SD1A404DB-GNY DAHUA
Product reference:
2-6923172590367
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- 1/2.8" 4Megapixel CMOS
- 4x optical zoom
- Starlight technology
- Max. 25/30 fps@4MP
- IR distance up to 20 m
- Perimeter protection
- Face detection
- SMD 3.0
- Built-in Mic
- IP66; IK08
| Summary | Dahua Technology SD1A404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle range: 5 - 90°, Tilt preset speed: 0.1 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 28 mm (1 / 28"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD1/SD1A404DB-GNY |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.155 |
| Form factor | Dome |
| IK code | IK08 |
| International Protection (IP) code | IP66 |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Alarm input/output | Yes |
| Certification | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | 8 Tour/Preset point |
| PTZ protocols | DH-SD |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1 - 1/30000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Minimum illumination | 0.0005 lx |
| Pan manual speed | 0.1 - 70 °/sec |
| Pan preset speed | 0.1 °/sec |
| Pan range | 0 - 355 ° |
| Tilt angle range | 5 - 90 ° |
| Tilt manual speed | 0.1 - 30 °/sec |
| Tilt preset speed | 0.1 °/sec |
| White balance | Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp |
| Optical sensor size | 1/28 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Auto focus | Yes |
| Closest focusing distance | 0.2 m |
| Detect distance (wide) | 240 m |
| Digital zoom | 16 x |
| Focal length range | 2.8 - 12 mm |
| Focus | Motorized/Manual |
| Identify distance (wide) | 24 m |
| Maximum aperture number | 2.7 |
| Minimum aperture number | 1.8 |
| Number of lenses | 1 |
| Observe distance (wide) | 94.8 m |
| Optical zoom | 4 x |
| Recognize distance (wide) | 48 m |
| Infra-red LEDs life | 3 h |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2560 x 1440 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio detection | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| RAM capacity | 512 MB |
| ROM capacity | 256 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Crossing line/Face detection/Missing object/Tripwire |
| Video motion detection | Yes |
| Management software | DMSS; DSS Pro |
| Web-based management | Yes |
| Power consumption (max) | 13 W |
| Power consumption (typical) | 4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 128 mm |
| Height | 65.7 mm |
| Weight | 500 g |
| Package weight | 700 g |
| Number of cameras | 1 |
| Model | SD1A404DB-GNY |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003243 cubm |
| Unit Calculated Weight | 0.74 kg |
