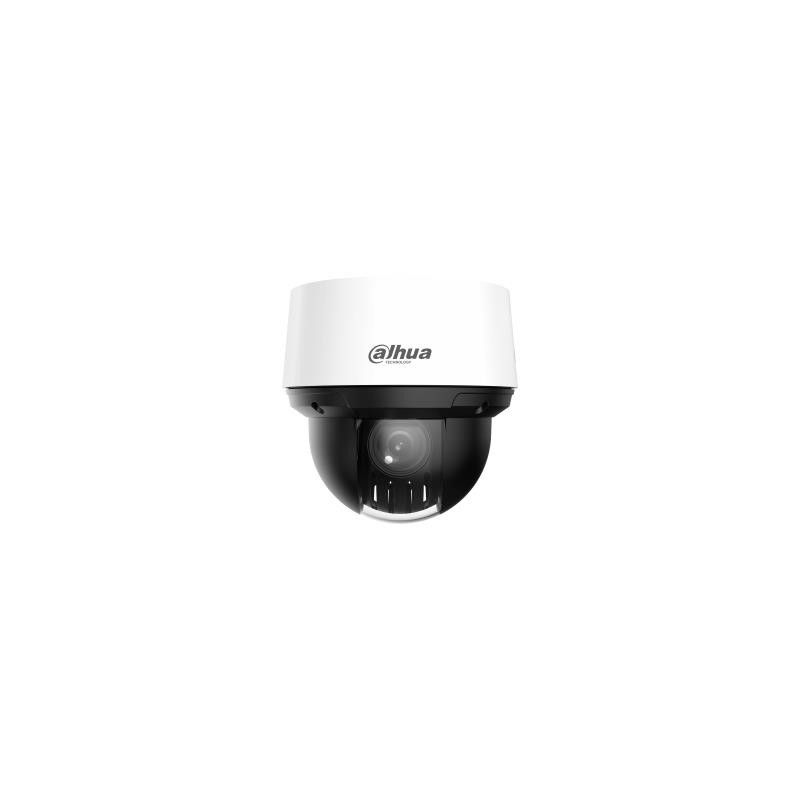

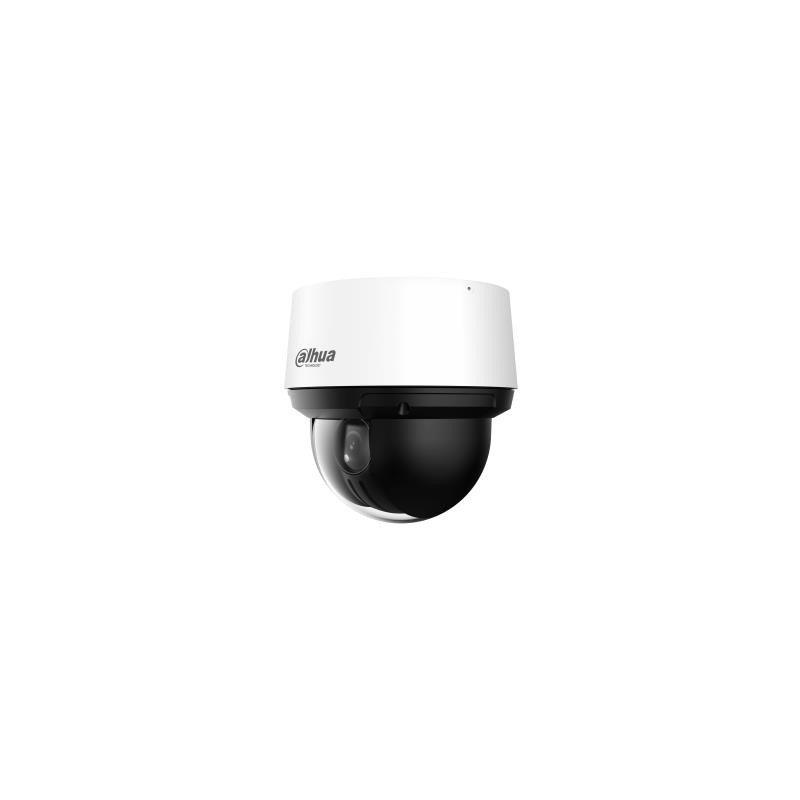

NET CAMERA 4MP IR PTZ DOME / SD4A425DB-HNY DAHUA
Product reference:
2-6923169706207
NET CAMERA 4MP IR PTZ DOME / SD4A425DB-HNY DAHUA
Product reference:
2-6923169706207
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
With its powerful optical zoom, and accurate pan and tilt capabilities, the PTZ camera provides an all-in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions. The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the
day.
- 1/2.8" 4Megapixel STARVIS™ CMOS
- 25x optical zoom
- Starlight technology
- Max. 25/30fps@4MP
- IR distance up to 100 m
- Auto-tracking 1.0
- Perimeter protection
- Face detection
- SMD 3.0
- IP66
| Alarm input channels | 2 |
| Alarm input/output | Yes |
| Alarm output channels | 1 |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Auto focus | Yes |
| Auto-tracking | Yes |
| Built-in HDD | No |
| Built-in light | Yes |
| Built-in microphone | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1 - 1/30000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Cloud-managed | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| DC-in jack | Yes |
| Detect distance | 2500 m |
| Diameter | 171.1 mm |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Focal length range | 5 - 125 mm |
| Focus | Motorized |
| Form factor | Spherical |
| Frame rate | 25 fps |
| Height | 170.4 mm |
| Identify distance | 250 m |
| International Protection (IP) code | IP66 |
| LED type | IR |
| Lens viewing angle, diagonal | 63.1 ° |
| Lens viewing angle, horizontal | 51.9 ° |
| Lens viewing angle, vertical | 39.7 ° |
| Live view | Yes |
| Maximum resolution | 3860 x 2160 pixels |
| Minimum illumination | 0.0005 lx |
| Mounting type | Ceiling |
| Night vision | Yes |
| Night vision distance | 100 m |
| Number of cameras | 1 |
| Number of illumination LEDs | 6 |
| Number of lenses | 1 |
| Number of Privacy masking areas | 24 |
| Number of users | 20 user(s) |
| Observe distance | 987.5 m |
| Operating temperature (T-T) | -40 - 65 °C |
| Optical sensor size | 1/2.8 " |
| Package weight | 3200 g |
| Pan manual speed | 0.1 - 240 °/sec |
| Pan preset speed | 240 °/sec |
| Pan range | 0 - 360 ° |
| Placement supported | Indoor & outdoor |
| Power consumption (Power over Ethernet (PoE)) | 21.5 W |
| Power consumption (typical) | 9.5 W |
| Power source type | DC,PoE |
| Product colour | White |
| Product Net Weight | 2.5 kg |
| Progressive scan | Yes |
| RAM capacity | 512 MB |
| Recognize distance | 500 m |
| ROM capacity | 128 MB |
| Sensor type | CMOS |
| Shipping Box Depth | 47.5 cm |
| Shipping Box Height | 31.5 cm |
| Shipping Box Weight | 13.8000001907349 kg |
| Shipping Box Width | 45.5 cm |
| Siren noise level | 55 dB |
| Streaming method | Multicast/Unicast |
| Summary | Dahua Technology SD4A425DB-HNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Spherical. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 51.9°, Lens viewing angle, vertical: 39.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 2500 m, Observe distance: 987.5 m, Recognize distance: 500 m |
| Supported network protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NFS, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SAMBA, SMTP, SNMP, SSL, TCP/ IP, UDP, UPnP, 802.1X |
| Tilt angle range | -5 - 90 ° |
| Tilt manual speed | 0.1 - 160 °/sec |
| Tilt preset speed | 160 °/sec |
| Total megapixels | 4 MP |
| Type | IP security camera |
| Unit Box Height | 0.29 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.21 |
| Unit Calculated Volume | 0.01702 cubm |
| Unit Calculated Weight | 3.45 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD4/SD4A425DB-HNY |
| Video formats supported | H.264+/H.265+ |
| Voice codecs | G.711a/G.711Mu/G.723/G.726/PCM |
| Web-based management | Yes |
| Weight | 2500 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Sodium lamp/Street lamp |
| Wide Dynamic Range (WDR) | Yes |
