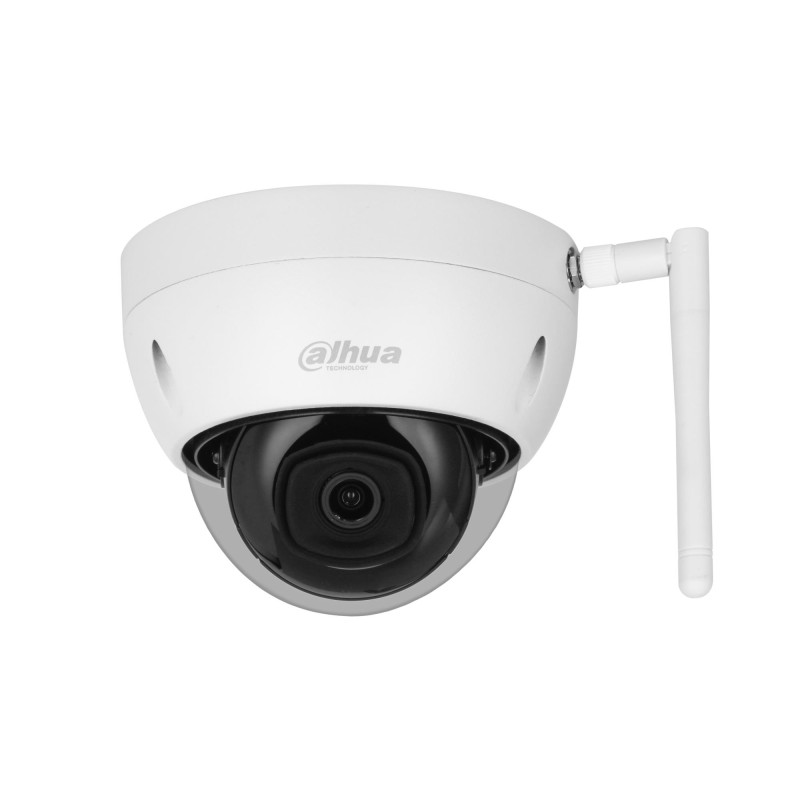

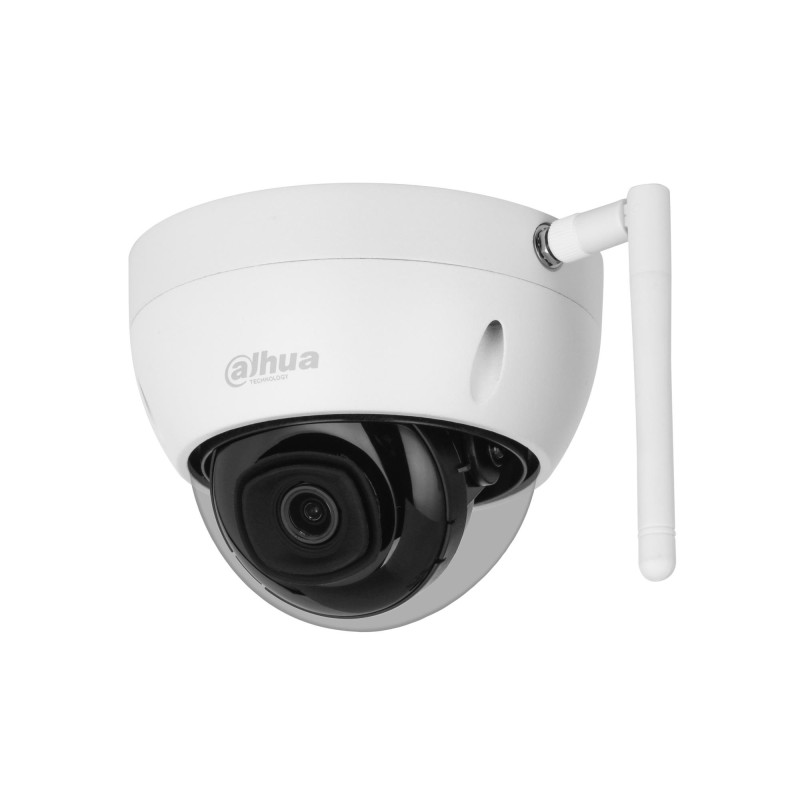

NET CAMERA 4MP IR DOME WIFI / IPC-HDBW1430DE-SW-0280B DAHUA
Product reference:
2-6923172539984
NET CAMERA 4MP IR DOME WIFI / IPC-HDBW1430DE-SW-0280B DAHUA
Product reference:
2-6923172539984
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED
- SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
- Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
- Supports max. 256 G Micro SD card
- 12 VDC power supply
- IP67, IK10 protection
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 355 ° |
| Antenna type | External |
| Antennas quantity | 1 |
| Audio codecs | G.711a; G.711Mu; PCM; G.726; G.723 |
| Audio system | 1-way |
| Audio system full duplex | Yes |
| Auto focus | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 Kbps - 20480 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Card reader integrated | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
| Compatible memory cards | MicroSD (TransFlash) |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Detect distance | 68 m |
| Detection distance | 80 m |
| Diameter | 110.7 mm |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fixed focal length (thermal module) | 2.8 mm |
| Form factor | Dome |
| Frame rate | 30 fps |
| Height | 88.7 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| Identify distance | 6.8 m |
| IK code | IK10 |
| Intelligent Video Surveillance (IVS) system features | Intrusion |
| Internal memory | 64 MB |
| International Protection (IP) code | IP67 |
| LED type | IR |
| Lens viewing angle, horizontal | 90 ° |
| Maximum aperture number | 2 |
| Maximum memory card size | 256 GB |
| Maximum resolution | 2560 x 1440 pixels |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Mounting type | Ceiling |
| Night vision | Yes |
| Night vision distance | 30 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of illumination LEDs | 3 |
| Number of lenses | 1 |
| Number of sensors | 1 |
| Number of users | 6 user(s) |
| Observe distance | 27.2 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/3 " |
| Package weight | 592 g |
| Pan range | 0 - 355 ° |
| Placement supported | Indoor & outdoor |
| Power source type | DC,PoE |
| Product colour | White |
| Product Net Weight | 0.414 kg |
| Progressive scan | Yes |
| Recognize distance | 13.6 m |
| Remote viewing | Yes |
| ROM capacity | 16 MB |
| Sensor type | CMOS |
| Shipping Box Depth | 14 cm |
| Shipping Box Height | 14.5 cm |
| Shipping Box Weight | 0.639 kg |
| Shipping Box Width | 12.5 cm |
| Smart IR | Yes |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 90°, Tilt angle range: 0 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440 |
| Supported video modes | 1080p/720p |
| Tilt angle range | 0 - 75 ° |
| Total megapixels | 4 MP |
| Type | IP security camera |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.002537 cubm |
| Unit Calculated Weight | 0.639 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDBW1430DE-SW |
| Video compression formats | H.264+/H.264H/H.265+ |
| Video formats supported | H.264/H.264B/H.265 |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Video streaming | Yes |
| Web browser | Yes |
| Weight | 414 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Wide Dynamic Range (WDR) | Yes |
