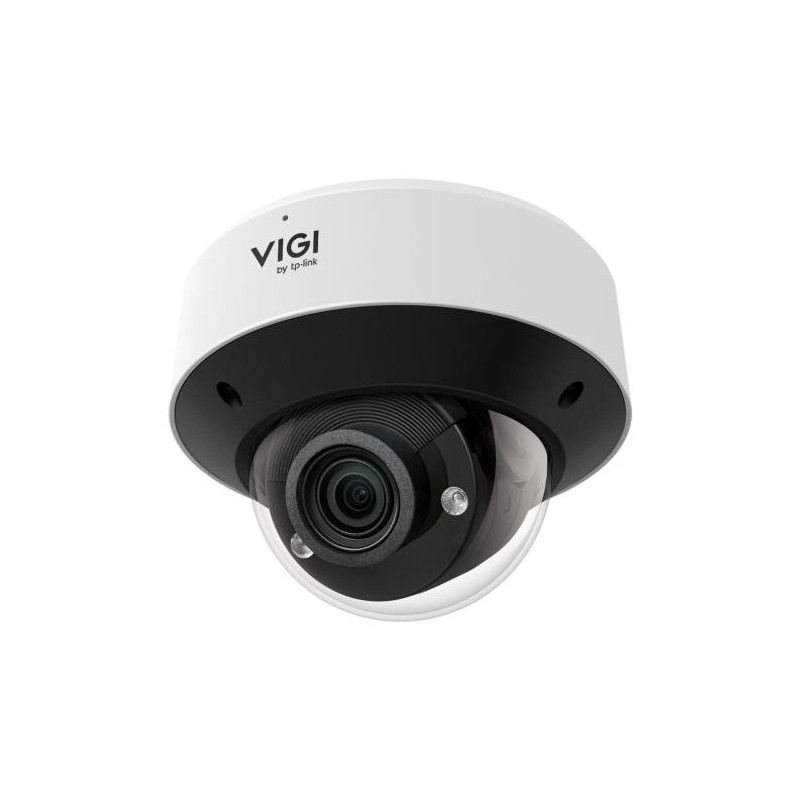

NET CAMERA 4MP IR DOME / VIGI INSIGHT S245ZI TP-LINK
Product reference: 2-8885020623598

NET CAMERA 4MP IR DOME / VIGI INSIGHT S245ZI TP-LINK

Product reference: 2-8885020623598
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
323,14
Last product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

  • 5X Optical Zoom for Easy Installation and Monitoring
  • 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP67 Weatherproof and IK10 Vandal Proof
  • H.265+ Compression Technology

Alert notification type Push notification
Audio formats supported G.711 A-law
Audio input channels 1.0 channels
Audio output channels 1.0 channels
Audio system 2-way
Auto focus Yes
Back Light Compensation (BLC) Yes
Bit rate Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range 0 - 64 Kbit/s
Bluetooth No
Built-in microphone Yes
Built-in siren Yes
Built-in speaker(s) Yes
Camera pan control Yes
Camera shutter speed 1/3 to 1/10000 s
Camera tilt control Yes
Cloud-managed Yes
Compatible memory cards MicroSD (TransFlash)
Connectivity technology Wired
Day/night mode Yes
DC output voltage 12
DC-in jack Yes
Depth 129.9 mm
Detect distance 200 m
Detection distance 200 m
Digest authentication Yes
Digital Wide Dynamic Range (DWDR) Yes
Dynamic range 120 dB
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Focus Motorized
Form factor Dome
Height 102.5 mm
Highlight Compensation (HLC) Yes
Housing material Metal
HTTPS encryption Yes
Human and vehicle targets classification Yes
Identify distance 21 m
IK code IK10
Image quality adjustment Brightness/Contrast/Mirror/Saturation/Sharpness
Infrared (IR) cut-off filter Yes
Intelligent Video Surveillance (IVS) system features Abnormal sound detection/Crossing line/Human detection/Intrusion/Line crossing detection/Moving object/Region entrance detection/Region exiting detection/Scene change/Vehicle detection
International Protection (IP) code IP67
IP address filtering Yes
LED type IR/White
Lens viewing angle, diagonal 34.1 - 122.8 °
Lens viewing angle, horizontal 29.6 - 102 °
Lens viewing angle, vertical 16.8 - 53.8 °
Live view Yes
Manual Yes
Maximum aperture number 1.6
Maximum memory card size 512 GB
Maximum operating distance 200 m
Maximum resolution 2688 x 1520 pixels
Mirror Yes
Model InSight S245ZI
Motion sensor Yes
Mounting type Ceiling
Networking standards IEEE 802.3af/IEEE 802.3at
Night vision Yes
Number of cameras 1
Number of microphones 1
Observe distance 84 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -30 - 60 °C
Optical sensor size 1/2.9 "
Optical zoom 5 x
Package type Box
Parameter Level 3
Password protection Yes
Placement supported Outdoor
Power consumption (max) 10.8 W
Power consumption (Power over Ethernet (PoE)) 12 W
Power source type DC,PoE
Product colour White
Product Net Weight 0.775 kg
Progressive scan Yes
Protection features Waterproof
Recognize distance 40 m
Remote viewing Yes
Reset button Yes
Sample rate 8 kHz
Sensor type CMOS
Shipping Box Depth 17 cm
Shipping Box Height 17.5 cm
Shipping Box Weight 1.11300003528595 kg
Shipping Box Width 17 cm
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 60 °C
Summary TP-Link VIGI InSight S245ZI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 29.6 - 102°, Lens viewing angle, vertical: 16.8 - 53.8°, Lens viewing angle, diagonal: 34.1 - 122.8°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 5x, Detect distance: 200 m, Observe distance: 84 m
Supported graphics resolutions 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Tilt angle range 0 - 75 °
Total megapixels 4 MP
Type IP security camera
Unit Box Height 0.175
Unit Box Length 0.17
Unit Box Width 0.17
Unit Calculated Volume 0.005058 cubm
Unit Calculated Weight 1.11 kg
Units per Shipping Box 1
Vendor Homepage https://www.tp-link.com/en/business-networking/vigi-network-camera/insight-s245zi/
Video compression formats H.264/H.264+/H.265/H.265+
Video motion detection Yes
Video recording Yes
Weatherproof Yes
Web browser Yes
Web-based management Yes
Weight 775 g
Wi-Fi No
Wide Dynamic Range (WDR) Yes
Width 129.9 mm
