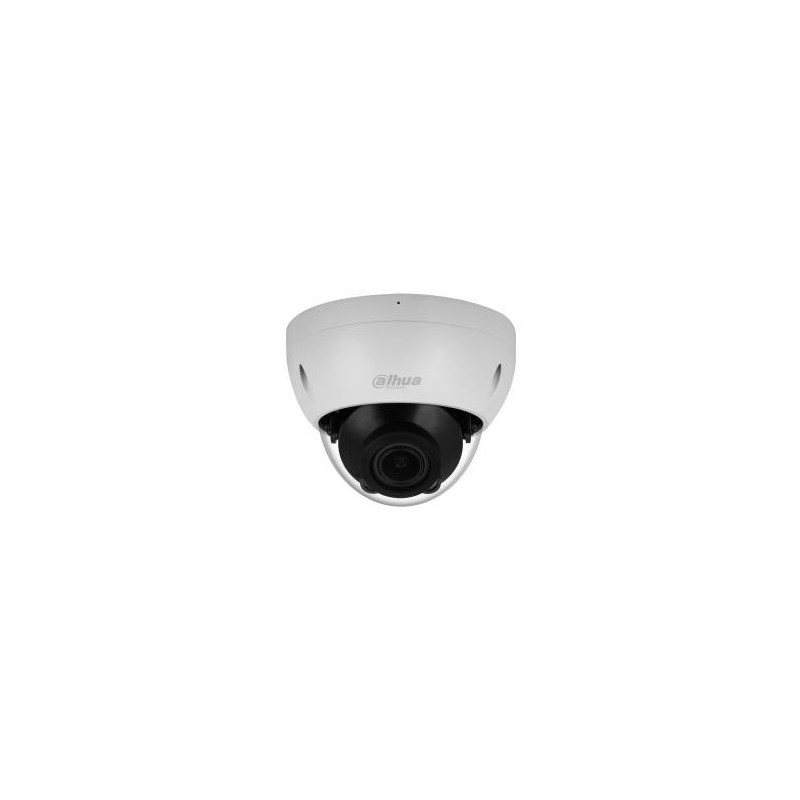

NET CAMERA 4MP IR DOME / IPC-HDBW2441R-ZAS-27135 DAHUA
Product reference:
2-6923172545671
NET CAMERA 4MP IR DOME / IPC-HDBW2441R-ZAS-27135 DAHUA
Product reference:
2-6923172545671
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, and the max. illumination distance is 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 and IK10 protection
- SMD Plus
| Adjustment shutter speed | Auto/Manual |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Angle of rotation | 355 ° |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 12 kbps-6144 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Card reader integrated | Yes |
| Closest focusing distance | 0.8 m |
| Compatible memory cards | MicroSD (TransFlash) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Detect distance (tele) | 210 m |
| Detect distance (wide) | 64 m |
| Diameter | 122 mm |
| Dynamic range | 120 dB |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Flash memory | 128 MB |
| Focal length range | 2.7 - 13.5 mm |
| Form factor | Dome |
| Gain control type | Auto/Manual |
| Height | 93.4 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| Identify distance (tele) | 21 m |
| Identify distance (wide) | 6.4 m |
| IK code | IK10 |
| Internal memory | 128 MB |
| International Protection (IP) code | IP67 |
| LED type | IR |
| Lens viewing angle, diagonal | 125 - 34 ° |
| Lens viewing angle, horizontal | 104 - 29 ° |
| Lens viewing angle, vertical | 54 - 16 ° |
| Management software | Smart PSS; DSS; DMSS |
| Maximum memory card size | 256 GB |
| Maximum resolution | 2688 x 1520 pixels |
| Minimum aperture number | 1.5 |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Model | IPC-HDBW2441R-ZAS-27135 |
| Mounting type | Ceiling |
| Night vision | Yes |
| Night vision distance | 40 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of illumination LEDs | 2 |
| Number of Privacy masking areas | 4 |
| Number of users | 6 user(s) |
| Observe distance (tele) | 84 m |
| Observe distance (wide) | 25.6 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Optical sensor size | 1/2.9 " |
| Package weight | 680 g |
| Pan range | 0 - 355 ° |
| Parameter Level | 3 |
| Placement supported | Outdoor |
| Power consumption (max) | 6.5 W |
| Power consumption (Power over Ethernet (PoE)) | 3.2 W |
| Power consumption (typical) | 2.3 W |
| Power source type | DC,PoE |
| Product colour | White |
| Product Net Weight | 0.52 kg |
| Progressive scan | Yes |
| Recognize distance (tele) | 42 m |
| Recognize distance (wide) | 12.8 m |
| Sensor type | CMOS |
| Shipping Box Depth | 16 cm |
| Shipping Box Height | 14 cm |
| Shipping Box Weight | 0.68 kg |
| Shipping Box Width | 16 cm |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology WizSense IPC-HDBW2441R-ZAS-27135. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 104 - 29°, Lens viewing angle, vertical: 54 - 16°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 2.7 - 13.5 mm, Detect distance (wide): 64 m, Detect distance (tele): 210 m |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Tilt angle range | 0 - 75 ° |
| Total megapixels | 4 MP |
| Type | IP security camera |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.16 |
| Unit Calculated Volume | 0.003584 cubm |
| Unit Calculated Weight | 0.68 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441R-ZAS |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video motion detection | Yes |
| Web browser | No |
| Weight | 520 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
