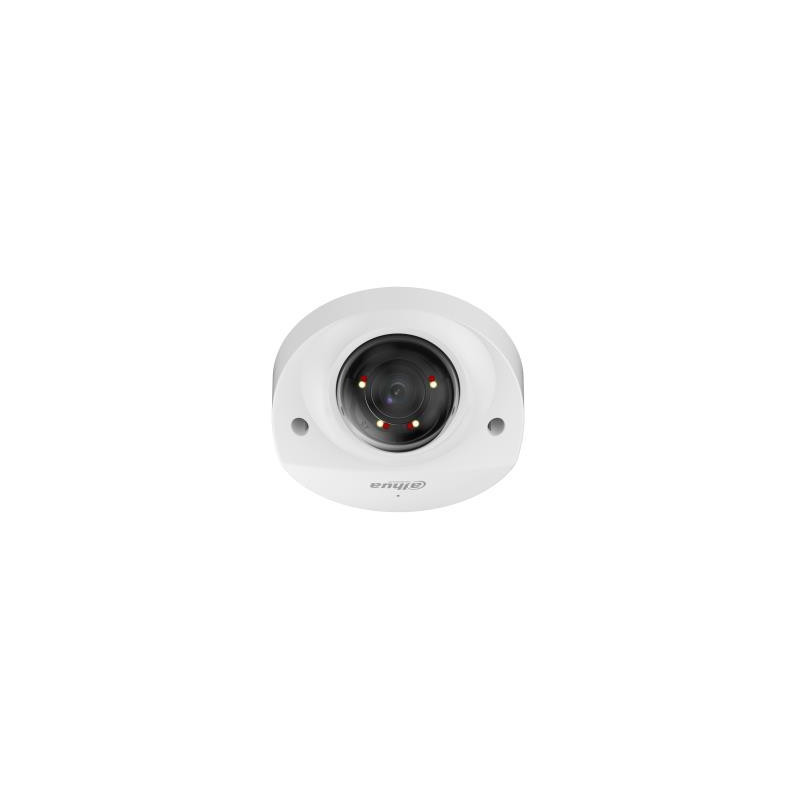

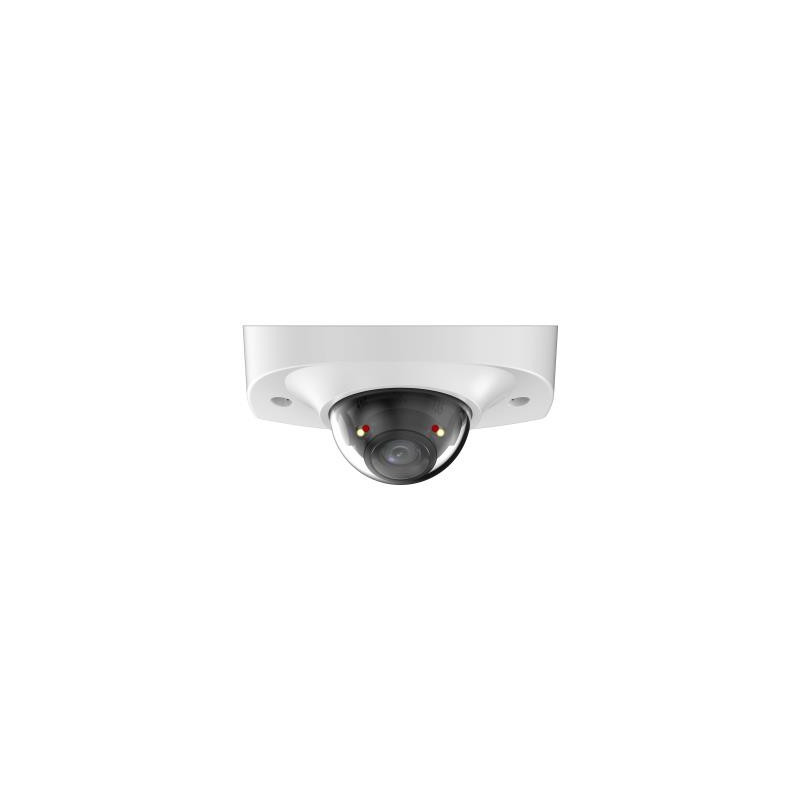

NET CAMERA 4MP DOME / IPC-HDBW2449F-AS-IL0280B DAHUA
Product reference: 2-6923172526922

NET CAMERA 4MP DOME / IPC-HDBW2449F-AS-IL0280B DAHUA

Product reference: 2-6923172526922
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
175,99 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in Mic
  • 12 VDC/PoE power supply, easy for installation
  • IP67 and IK10 protection
  • SMD Plus

Aktyvi įsilaužimo signalizacija Taip
Aptikties atstumas 63.6 m
Apšvietimo LED diodų skaičius 4
Atpažinimo atstumas 12.7 m
Atvirkštinis ir veidrodinis vaizdas Taip
Aukštis 55 mm
Balso kodekai G.711a/G.711Mu/G.726/PCM
Baltos spalvos balansas Automatinis/Lauke/Natūralus/Rankinis/Regional custom/Street lamp
Bitų sparta H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
Bitų spartos kontrolė Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bluetooth Ne
Bruto svoris 0.54 kg
Darbo santykinės drėgmės diapazonas 0 - 95 %
Darbo temperatūros diapazonas (TT) -40 - 60 °C
DC išeigos įtampa 12
Energijos suvartojimas 2.3 W
Ethernet LAN (RJ-45) portų kiekis 1
Ethernet LAN jungtis Taip
Fiksuotas fokusavimas Taip
Fiksuotas židinio nuotolis 2.8 mm
Foninio apšvietimo kompensavimas Taip
Forma Skliautas
Fotoaparatų skaičius 1
Galios suvartojimas (maitinimas per Eternetą (PoE)) 3.8 W
Galios suvartojimas (maks.) 8.5 W
Garso išvesties kanalai 1.0 kanalai
Garso įvesties kanalai 1.0 kanalai
Identifikavimo atstumas 6.4 m
IK kodas IK10
Infraraudonųjų spindulių (IR) atjungimo filtras Taip
Integruotas kietasis diskas Ne
Integruotas kortelių skaitytuvas Taip
Iš viso megapikselių 4 MP
Išplėstinis dinaminis diapazonas (WDR) Taip
Jutiklio tipas CMOS
Kameros užrakto greitis 1/3 - 1/100000 s
Korpuso medžiaga Metalas
LED tipas Infraraudonieji / balti
Lęšių skaičius 1
Maitinimo šaltinio tipas DC,PoE
Maksimali rezoliucija 2688 x 1520 pikseliai
Maksimalus atminties kortelės dydis 256 GB
Mažiausias fokusavimo atstumas 1.7 m
Minimalus apšviestumas 0.0006 lx
Model IPC-HDBW2449F-AS-IL-0280B
Montavimo tipas Ant lubų / sienos / stulpo
Naktinio matymo atstumas 30 m
Naktinis matymas Taip
Neto svoris 0.41 kg
Objektyvo vaizdo kampas, horizontalus 101 °
Objektyvo vaizdo kampas, vertikalus 54 °
Objektyvo vaizdo kampas, įstrižainė 120 °
Optinio sensoriaus dydis 1/2.9 "
Paketo svoris 550 g
Palaikomi tinklo protokolai IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Palaikomos grafikos rezoliucijos 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Pažangios vaizdo stebėjimo (IVS) sistemos savybės Įsibrovimas/Reakcija į pastebėtą objektą/Transporto priemonių aptikimas/Žmonių aptikimas
Posvyrio kampo intervalas 0 - 80 °
Privatumo apsauga Taip
Privatumo maskavimo sričių skaičius 4
Produkto spalva Balta
Progresyvus nuskaitymas Taip
RAM talpa 128 MB
ROM talpa 128 MB
Ryšio technologija Vielinis
Sandėliavimo santykinis drėgmės diapazonas 0 - 95 %
Sandėliavimo temperatūros norma (T-T) -40 - 60 °C
Shipping Box Depth 14 cm
Shipping Box Height 8.5 cm
Shipping Box Weight 0.54 kg
Shipping Box Width 13.5 cm
Signalo ir triukšmo santykis (SNR) 56 dB
Signalo išvesties kanalai 1
Signalo įvesties kanalai 1
Signalo įvestis / išvestis Taip
Skersmuo 108.9 mm
Stebėjimo atstumas 25.4 m
Suderinamos atminties kortelės MicroSD (TransFlash)
Sukimosi kampas 360 °
Summary Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m
Svoris 410 g
Talpinimas palaikomas Lauke
Tarptautinės apsaugos (IP) kodas IP67
Tipas IP apsaugos kamera
Tiriamosios srities (ROI) užkodavimas Taip
Triukšmo mažinimas Taip
Triukšmo sumažinimo technologija 3D triukšmo mažinimas
Unit Box Height 0.085
Unit Box Length 0.14
Unit Box Width 0.135
Unit Brutto Volume 0.001607 cubm
Vaizdo judesio detekcija Taip
Vaizdo transliavimas Taip
Valdymo sustiprinimo tipas Automatinis / rankinis
Vartotojų skaičius 6 vartotojas(ai)
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2449F-AS-IL
Video suspaudimo formatai H.264/H.264B/H.264H/H.265/M-JPEG
Vieneto aukštis 8.5 cm
Vieneto gylis 14 cm
Vieneto plotis 13.5 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Viso diapozonas -30 - 30 °
Web pagrįstas valdymas Taip
Įmontuota lemputė Taip
Įmontuotas mikrofonas Taip
Šviesos efekto kompensavimas (HLC) Taip
"Wi-Fi" Ne
