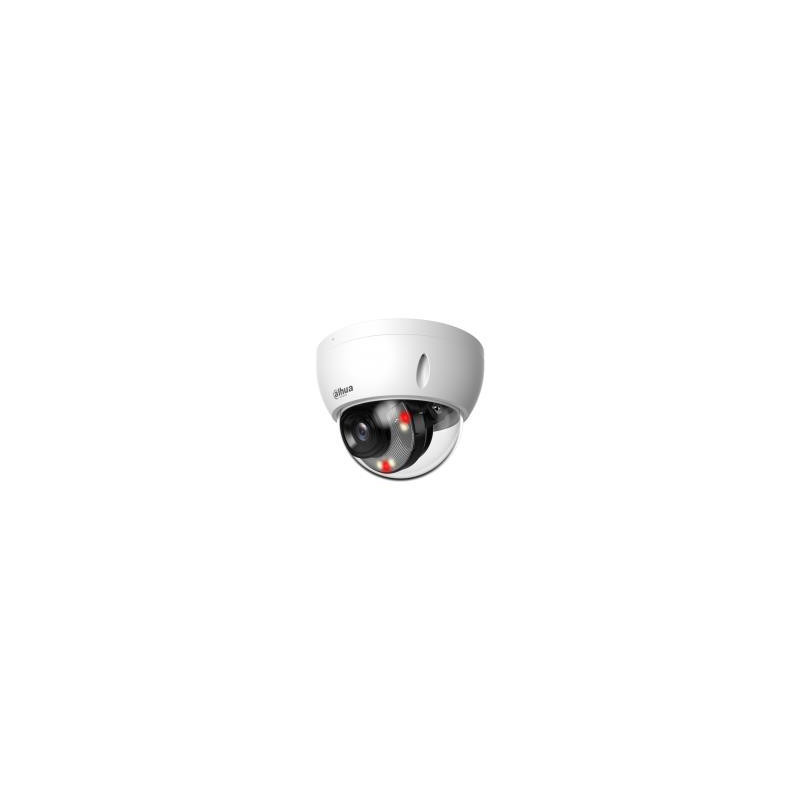

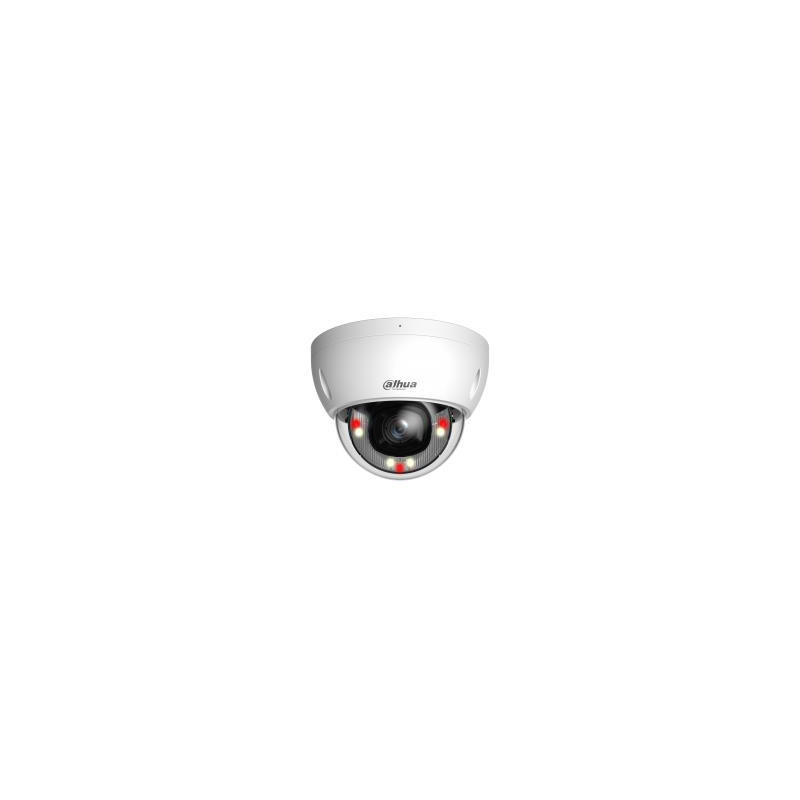

NET CAMERA 4MP DOME / IPC-HDBW2449E-S-IL-0280B DAHUA
Product reference:
2-6923172514202
NET CAMERA 4MP DOME / IPC-HDBW2449E-S-IL-0280B DAHUA
Product reference:
2-6923172514202
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
- IP67, IK10 protection
- SMD Plus
| Angle of rotation | 355 ° |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Card reader integrated | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Closest focusing distance | 1.1 m |
| Compatible memory cards | MicroSD (TransFlash) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| Detect distance | 63.6 m |
| Diameter | 109.9 mm |
| Dynamic range | 120 dB |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fixed focal length | 2.8 mm |
| Form factor | Dome |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Height | 81 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal |
| Identify distance | 6.4 m |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| LED type | IR/White |
| Lens viewing angle, diagonal | 120 ° |
| Lens viewing angle, horizontal | 101 ° |
| Lens viewing angle, vertical | 54 ° |
| Management software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Maximum memory card size | 256 GB |
| Maximum resolution | 2688 x 1520 pixels |
| Mirror | Yes |
| Mobile operating systems supported | Android/iOS |
| Model | IPC-HDBW2449E-S-IL-0280B |
| Mounting type | Ceiling/Wall/Pole |
| Networking standards | IEEE 802.3af |
| Night vision | Yes |
| Night vision distance | 30 m |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of users | 6 user(s) |
| Observe distance | 25.4 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.9 " |
| Package weight | 500 g |
| Pan range | 0 - 355 ° |
| Placement supported | Outdoor |
| Power consumption (max) | 7.9 W |
| Power consumption (typical) | 2.4 W |
| Power source type | DC,PoE |
| Product colour | White |
| Progressive scan | Yes |
| RAM capacity | 128 MB |
| Recognize distance | 12.7 m |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 128 MB |
| Sensor type | CMOS |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology WizSense IPC-HDBW2449E-S-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 101°, Lens viewing angle, vertical: 54°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Tilt angle range | 0 - 65 ° |
| Total megapixels | 4 MP |
| Type | IP security camera |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.138 |
| Unit Box Width | 0.137 |
| Unit Calculated Volume | 0.002769 cubm |
| Unit Calculated Weight | 0.54 kg |
| Units per Shipping Box | 20 |
| Vendor Homepage | https://www.dahuasecurity.com/ro/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDBW2449E-S-IL |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video motion detection | Yes |
| Video streaming | Yes |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Web browser | Yes |
| Weight | 350 g |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Wi-Fi | No |
