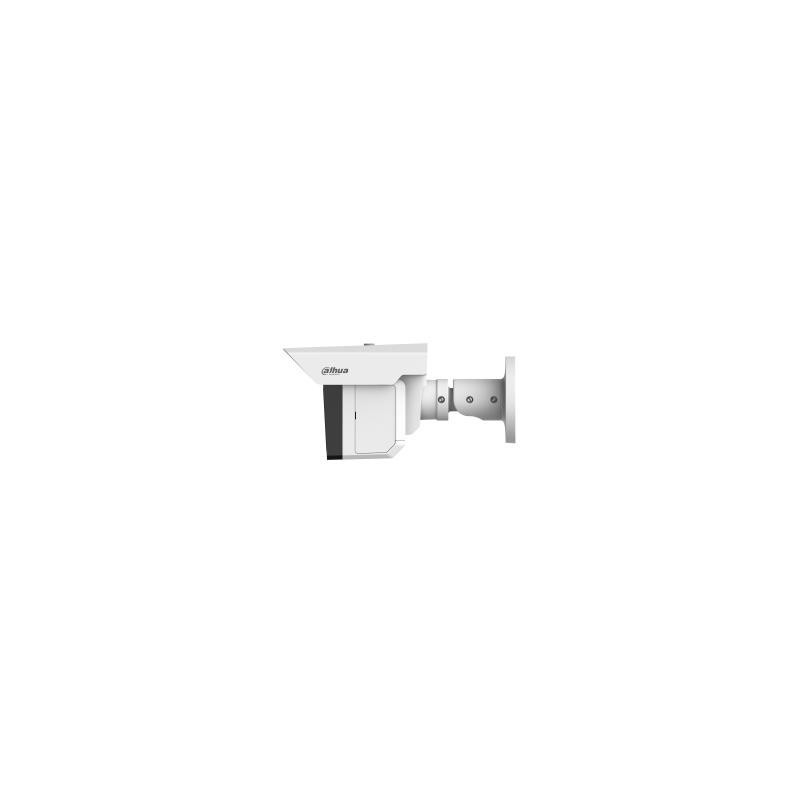

NET CAMERA 3X2MP IR BULLET / IPC-MFW5241T2-E3-ASE DAHUA
Product reference: 2-6939554941702

NET CAMERA 3X2MP IR BULLET / IPC-MFW5241T2-E3-ASE DAHUA

Product reference: 2-6939554941702
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
73466
Product in warehouse

Guarantee
36 month

Delivery from Europe in
5 - 7
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

The Triple-Sight Long Range Perimeter Protection Bullet WizMind Network Camera leverages its deep learning algorithms and multichannel ultra-long-range perimeter detection technology to accurately detect targets over long ranges and accurately classify humans and vehicles. By employing Micro-PTZ and illumination by area technology, the monitoring range and illumination can be precisely adjusted, enhancing the quality of images and the effectiveness of intelligent detection. The camera is dustproof, waterproof and vandal-proof, and has IP67 and IK10 certification.

Long-Range Perimeter Protection
The camera features long-range perimeter protection that reaches up to 100 meters by leveraging multi-channel fusion and illumination by area technology. With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire and intrusion) are largely reduced.

Illumination by Area
This technology allows you to independently control the lighting in multiple areas of the image, enabling the device to easily adapt to different scenes, save power and perform more efficiently.

AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from
compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • H.265 codec, high compression rate, ultra-low bit rate
  • · Built-in 8 IR LEDs, and the max. illumination distance is up to 100 m
  • · Supports long-range perimeter protection. The camera can detect humans and vehicles up to 100 m away and more
  • · WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • · With deep learning algorithm, it supports Perimeter Protection, including Intrusion and tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • · Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card; built-in dual Mic and speaker, supports two-way talk
  • · ePoE
  • · IP67 and IK10 protection

Summary Dahua Technology WizMind DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 58.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8, 3.6 mm, Identify distance: 6.4 m, Detect distance (wide): 63.8 m
Vendor Homepage https://www.dahuasecurity.com/ceen/search/products?keyword=DH-IPC-MFW5241T2P-E3-ASE-0360%2F1200%2F2500B
Unit Box Height 0.19
Unit Box Length 0.35
Unit Box Width 0.19
Form factor Turret
Housing material Metal/Plastic
International Protection (IP) code IP67
Mounting type Ceiling
Product colour White
Certification CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Connectivity technology Wired
Day/night mode Yes
Placement supported Indoor & outdoor
Type IP security camera
Wide Dynamic Range (WDR) Yes
Adjustment shutter speed Auto/Manual
Angle of rotation 360 °
Camera pan control Yes
Camera shutter speed 1/3 - 1/100000 s
Camera shutter type Electronic
Camera tilt control Yes
Lens viewing angle, diagonal 136 °
Lens viewing angle, horizontal 111 °
Lens viewing angle, vertical 58.5 °
Pan range 0 - 360 °
Tilt angle range 0 - 78 °
White balance Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of sensors 1
Optical sensor size 1/2.7 "
Progressive scan Yes
Sensor type CMOS
Detect distance (tele) 77.8 m
Detect distance (wide) 63.8 m
Focal length range 2.8, 3.6 mm
Identify distance 6.4 m
Identify distance (tele) 7.8 m
Identify distance (wide) 6.4 m
Maximum aperture number 1
Number of lenses 1
Observe distance (tele) 31.1 m
Observe distance (wide) 25.5 m
Recognize distance (tele) 15.6 m
Recognize distance (wide) 12.8 m
LED type IR/White
Night vision Yes
Night vision distance 30 m
Number of illumination LEDs 2
Back Light Compensation (BLC) Yes
Bit rate 32 Kbps - 8192 Kbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate 30 fps
Gain control type Auto/Manual
Highlight Compensation (HLC) Yes
Maximum resolution 2960 x 1688 pixels
Noise reduction Yes
Noise reduction technology 3D noise reduction
Privacy masking Yes
Region of Interest (ROI) encoding Yes
Smart IR Yes
Supported graphics resolutions 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes 1080p/720p
Total megapixels 5 MP
Video compression formats H.264/H.264B/H.264H/H.265/M-JPEG
Video streaming Yes
Signal-to-Noise Ratio (SNR) 56 dB
Bluetooth No
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Number of users 20 user(s)
Quality of Service (QoS) support Yes
Streaming method Multicast
Supported network protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P2P; PPPoE; Bonjour; auto registration
Wi-Fi No
Built-in HDD No
Compatible memory cards MicroSD (TransFlash)
Maximum memory card size 256 GB
ROM capacity 128 MB
Ethernet LAN (RJ-45) ports 1
Active tampering alarm Yes
Intelligent Video Surveillance (IVS) system features Intrusion/Tripwire
Mirror Yes
Video motion detection Yes
Web browser Yes
DC output voltage 12
Power consumption (typical) 2.2 W
Power source type DC,PoE
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 60 °C
Storage temperature (T-T) -40 - 60 °C
Mobile operating systems supported Android/iOS
Diameter 121.9 mm
Length 99.1 mm
Weight 480 g
Package weight 620 g
Number of cameras 1
Model IPC-MFW5241T2-E3-ASE
Units per Shipping Box 1
Unit Calculated Volume 0.01264 cubm
Unit Calculated Weight 3.23 kg
