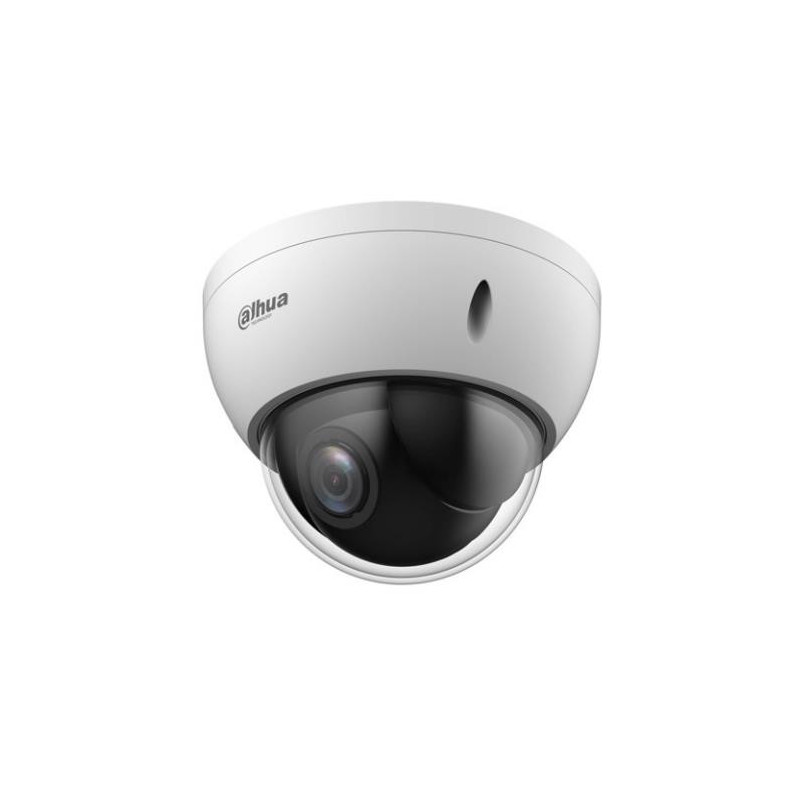

NET CAMERA 2MP PTZ DOME / SD22204DB-GC DAHUA
Product reference: 2-6923172591319

NET CAMERA 2MP PTZ DOME / SD22204DB-GC DAHUA

Product reference: 2-6923172591319
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
308,70 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Number of active pixels (height x width)1920 x 1080 pixels
Detection distance151.7 m
Recognition distance30.3 m
Height88.9 mm
White balanceATW/Auto/Outdoor/Manual/Indoor
Bit rate448K - 8192Kbps, 5120K - 10240Kbps
Bitrate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
BluetoothYes
BNC output ports1
Gross weight0.7 kg
Operating relative humidity range0 - 95 %
Operating temperature range (TT)-30 - 60 °C
DC output current1 A
DC output voltage12
DC input jackYes
Day/night modeYes
Energy consumption7 W
Ethernet LAN connectionYes
FocusesMotorized / manual
Backlight compensationYes
FormVault
Number of cameras1
Power consumption (max.)9 W
Identification distance15.2 m
IC codeIK10
Integrated hard driveYes
Preset pan speed100 °/sec
Predefined pointsYes
Total megapixels2 MP
Wide Dynamic Range (WDR)Yes
Sensor typeCMOS
Frame rate30 fps
Camera shutter typeElectronic
Camera lift controlYes
Camera panning controlYes
Camera shutter speed1/1 - 1/30000 s
LED typeAND
Power supply typeDC
Maximum resolution1920 x 1080 pixels
Minimum illumination0.0005 lx
ModelSD22204DB-GC
Mounting typeAbsolutely
Night visionYes
Net weight0.6 kg
Lens angle of view, horizontal99.1 °
Lens angle of view, vertical53.4 °
Lens angle of view, diagonal117.7 °
Optical sensor size1/2.8 "
Optical reduction4 x
Package weight650 g
Packaging type"Box"
Supported video modes1080p/720p
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/352 x 240/352 x 288/704 x 480/704 x 576
Panning speed100 °/sec
Tilt angle range0 - 90 °
Zoom optionYes
Product colorWhite
Progressive scanYes
PTZ controlYes
PTZ protocolsPelco-P/D
PTZ modes8 locations/Preset sequence
ROM file128 MB
RS-485 ports1
Communication technologyWired
Storage relative humidity range0 - 95 %
Storage temperature norm (TT)-30 - 60 °C
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part 15
subpart B, ANSI C63.4-2014 UL:
UL60950-1+CAN/CSA C22.2, No.60950-1
Shipping Box Depth16 cm
Shipping Box Height14 cm
Shipping Box Weight0.7 kg
Shipping Box Width16 cm
Signal-to-noise ratio (SNR)50 dB
Digital Wide Dynamic Range (DWDR)Yes
Digital zoom16 x
Diameter122 mm
Observation distance59.9 m
SummaryDahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 99.1°, Lens viewing angle, vertical: 53.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Optical zoom: 4x, Digital zoom: 16x, Detect distance: 151.7 m
Weight600 g
Hosting supportedIndoor and outdoor
International Protection (IP) CodeIP66
Tilt speed60 °/sec
TypeCCTV surveillance camera
Region of Interest (ROI) encodingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Unit Box Height0.14
Unit Box Length0.16
Unit Box Width0.16
Unit Ugly Volume0.003584 cubm
Video motion detectionYes
Video streamingYes
Control amplification typeAutomatic/manual
Vendor Homepagewww.dahuasecurity.com/ceen/products/All-Products/PTZ-Cameras/HDCVI-PTZ-Cameras/SD2/SD22204DB-GC
Video compression formatsH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Internal memory256 MB
Unit height14 cm
Unit depth16 cm
Unit width16 cm
Number of units per shipping box1
Total range0 - 355 °
Light Effect Compensation (HLC)Yes
Focal length2.7 - 11 mm
"Wi-Fi"Yes
