Multifunctional keyboard with RFID card reader and integrated controller

Multifunctional keyboard with proximity card reader and integrated controller 125KHz EM or 13.56MHz Mifare, IP66.
Features:

• This is a compact standalone access control with a keypad and a proximity card reader.


• The RFID access control controller is designed for extreme weather conditions (-40°C~+60°C), has IP66 water and dust resistance, suitable for outdoor or indoor use.


• Optionally, 125KHz EM or 13.56MHz Mifare cards are supported.


• Backlit keyboard, convenient to use in the dark.


• Supports 10 visitors, who are allowed to enter from 1 to 10 times.


• Access control in 3 ways: card, PIN code or card+PIN.

Technical data:

• Number of users (cards/PIN codes): 1000 (990 permanent + 10 visitors).


• PIN code length: 4-6 digits.


• Supported card frequencies: 125KHz EM or 13.56MHz Mifare.


• Voltage: DC 9~18V.


• Power consumption - standby / working: <50mA / <80mA..


• Card scanning distance: 3~6 cm.


• Number of doors supported: 1.

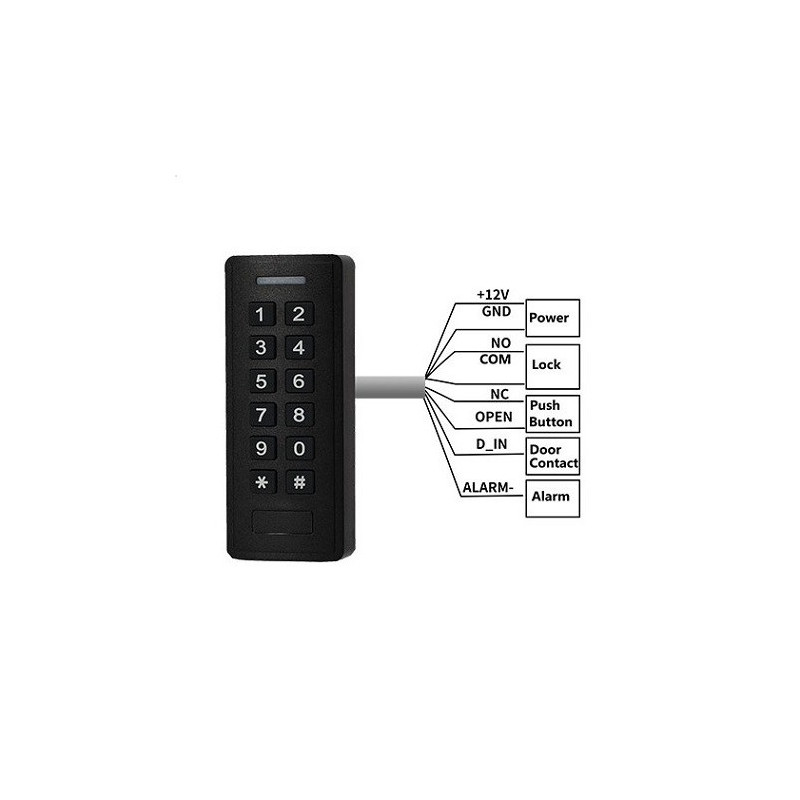

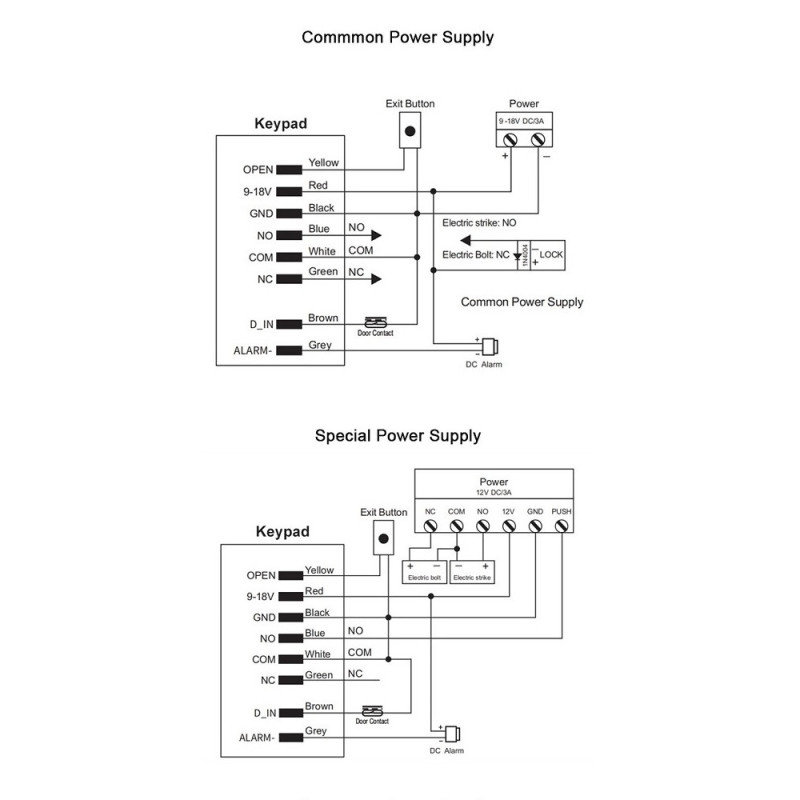

• Wire connections: for lock, exit button, door sensor, alarm.


• Relay: 1 (for lock, No, Nc, Com contacts).


• Adjustable relay activation time: 0-99 seconds (5 seconds by default).


• Safety class: IP66.


• Mounting: on the wall.


• Material: ABS.


• Operating temperature: -40°C~+60°C.


• Relative humidity: 10%~90%RH.


• Dimensions: 120x 50x 21 mm.


• Weight: 150g.
