Multifunctional keyboard with proximity card reader and integrated controller

Multifunctional keyboard with proximity card reader and integrated controller BC2000, 125KHz EM.
Features:

• This is a compact standalone access control with a keypad and a proximity card reader.


• The access control controller is designed for outdoor conditions (-40°C~+60°C), suitable for outdoor or indoor use.


• Optional 125KHz EM cards are supported.


• Backlit keyboard (3 LEDs), convenient for use in the dark.


• EPROM memory.


• Built-in anti-tamper protection.

Technical data:

• Number of users (cards/PIN codes): 1000.


• PIN code length: 4-6 digits.


• Operating frequency of supported cards: 125KHz (EM).


• Power supply voltage: DC 12V.


• Standby power consumption: <20mA.


• Card scanning distance: 3~6 cm.


• Card scanning speed: <0.1s.


• Number of doors supported: 1.

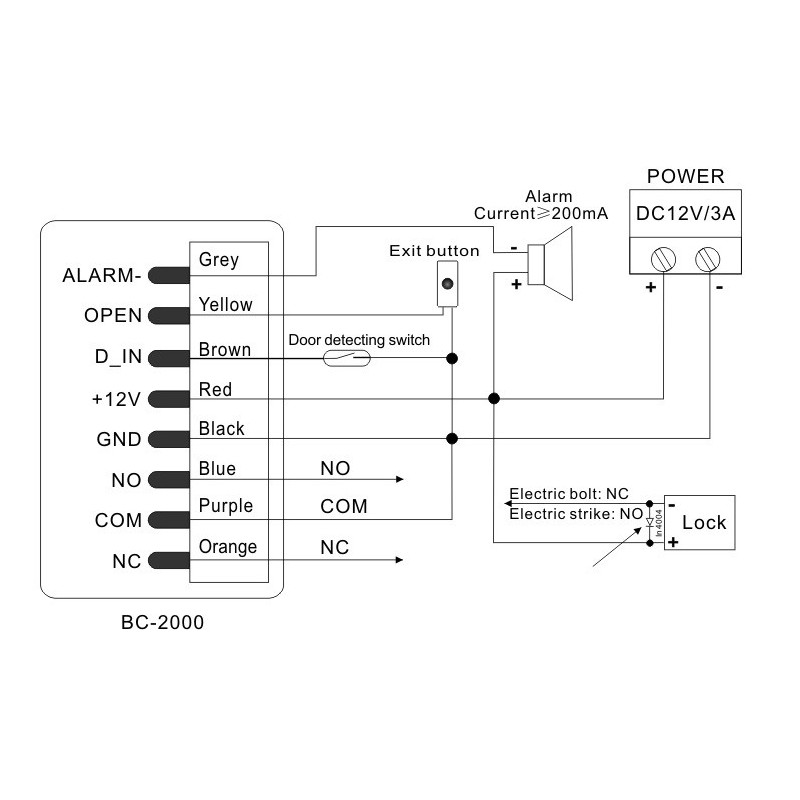

• Wire connections: for lock, exit button, door sensor, alarm.


• Relay: 1 (for lock, No, Nc, Com contacts).


• Adjustable relay activation time: 0-99 seconds.


• Mounting: on the wall.


• Material: zinc alloy.


• Operating temperature: -40°C~+60°C.


• Relative humidity: 0%~95%RH.


• Dimensions: 128x 82x 28 mm.


• Weight: 550g.
