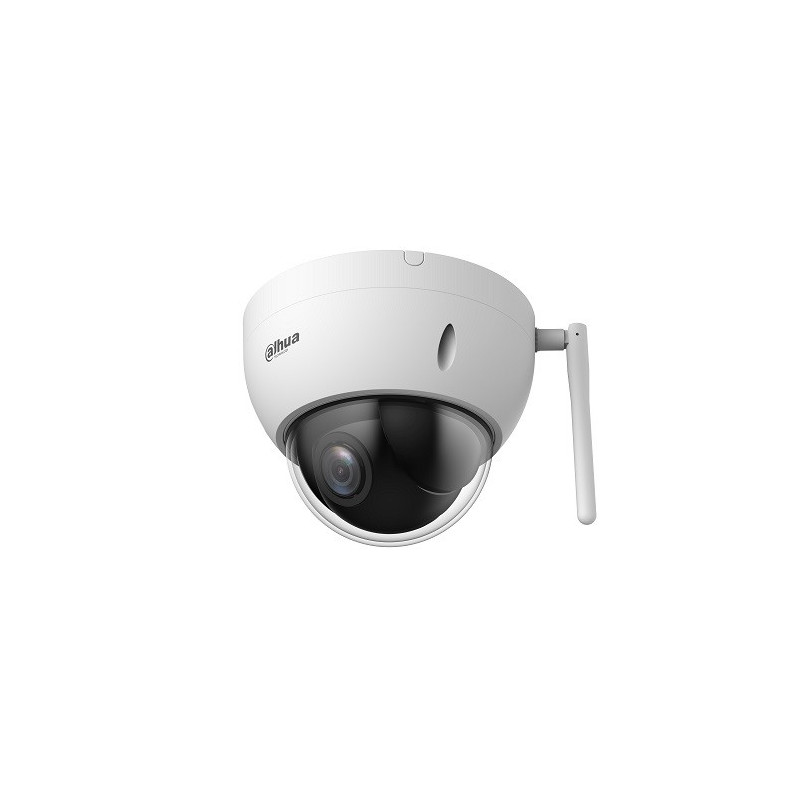

PTZ Camera - Dahua SD22404DB-GNY-W 4 MP Wireless PTZ Dome Camera 2.8-12 mm 4× Optical Zoom 2,560 × 1,440 2.4 GHz 512 GB
Product reference: 14-6923172536402

4 MP wireless PTZ dome camera with 2.8-12 mm lens, 4x optical zoom and 2560 × 1440 resolution. Supports 2.4 GHz wireless, microSD card up to 512 GB and features IP66 and IK10 protection.

PTZ Camera - Dahua SD22404DB-GNY-W 4 MP Wireless PTZ Dome Camera 2.8-12 mm 4× Optical Zoom 2,560 × 1,440 2.4 GHz 512 GB

Product reference: 14-6923172536402

4 MP wireless PTZ dome camera with 2.8-12 mm lens, 4x optical zoom and 2560 × 1440 resolution. Supports 2.4 GHz wireless, microSD card up to 512 GB and features IP66 and IK10 protection.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
348,12 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Dahua SD22404DB-GNY-W 4 MP "Wi-Fi" PTZ dome camera


4 MP Wi-Fi PTZ dome camera with 2.8-12 mm lens, 4x optical zoom and 2560 × 1440 resolution. Supports 2.4 GHz wireless, up to 512 GB microSD memory, IP66 and IK10 protection.


  • 4 MP PTZ dome camera with 2,560 × 1,440 resolution for detailed video surveillance.
  • 4x optical zoom, motorized 2.8-12 mm lens, 355° pan and 90° tilt.
  • 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet, ONVIF support for convenient installation.
  • Smart surveillance features: perimeter protection, face detection, SMD and up to 512 GB microSD memory.

Product information

Product type Wi-Fi PTZ Dome Network Camera
Brand Dahua
Model SD22404DB-GNY-W
Color Black
Main purpose Remote video monitoring with pan, tilt and zoom functions

Image and lens

Image sensor 1/2.8 inch CMOS
Minimum illumination Color: 0.005 lux at F1.6; B/W: 0.0005 lux at F1.6
Maximum aperture F1.6-F3.0
Horizontal viewing angle 90.3°-29.4°
Vertical viewing angle 48.5°-16.6°
Oblique viewing angle 105.7°-33.6°
Focus control Automatic, semi-automatic or manual
Minimum focusing distance 1.5m
DORI distance Detection: 240 m; tracking: 94.8 m; recognition: 48 m; identification: 24 m

PTZ functions

Rotation range 0°-355°
Tilt range 0°-90°
Manual rotation speed 0.1°-100° per second
Manual tilt speed 0.1°-60° per second
Preset speed Pan: 100° per second; Tilt: 60° per second
Presets 300
Routes 8 routes, each with up to 32 presets
Templates 5
Actions during inactivity Template, preset, or route

Image and smart features

Video streams 3
Supported resolutions 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, VGA and CIF
Frame rate Up to 25/30 frames per second, depending on resolution and stream
Image compression H.264, H.265, Smart H.264+, Smart H.265+ and MJPEG for additional streaming
Speed control CBR or VBR
Day and night mode Automatic ICR, color or black and white
Dynamic range Digital WDR
Image processing Backlight compensation, highlight compensation, 2D/3D noise reduction, image stabilization, electronic defog and 180° image rotation
Digital zoom 16 times
Smart detection Perimeter protection, virtual line, intrusion, fence crossing, presence in the zone, abandoned or missing object, fast moving object, parking, gathering of people and separation of people and vehicles
Face detection Face detection, tracking, snapshots, image enhancement and face cutting
Smart motion detection Supported
Motion detection Supported
Area of interest Supported

Communication and memory

Ethernet RJ-45, 10/100Mbps
Wireless standards IEEE 802.11b/g/n
Wireless transmission rate Up to 150Mbps
Supported protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, UPnP, SNMP, RTP, RTCP, PPPoE, RTMP, Bonjour, SAMBA and NFS
Compatibility ONVIF S, G and T profiles; P2P, CGI and SDK
Streaming Unicast or multicast
Local memory MicroSD card up to 512 GB
Additional memory FTP or NAS
Management software DSS and DMSS
Compatibility with mobile devices iOS and Android

Power supply and construction

Power source 12V DC, 1A ±10%
Energy consumption Basic: 2.7 W; Peak: 4.8 W
Operating temperature −30°C-+60°C
Operating humidity Up to 95%
Protection class IP66 dust and water protection; IK10 impact protection
Dimensions 89 × 122 mm
Net weight 0.5 kg

Safety information

Safety warning For monitoring purposes only. Install and use the camera in accordance with the manufacturer's instructions. Use the specified 12 V DC power supply, ensure secure mounting, protect cable connections from water, and comply with applicable privacy and data protection laws. Installation and electrical connections must be performed by a qualified professional.

Height150mm
Length200mm
Weight700g
Width150mm
