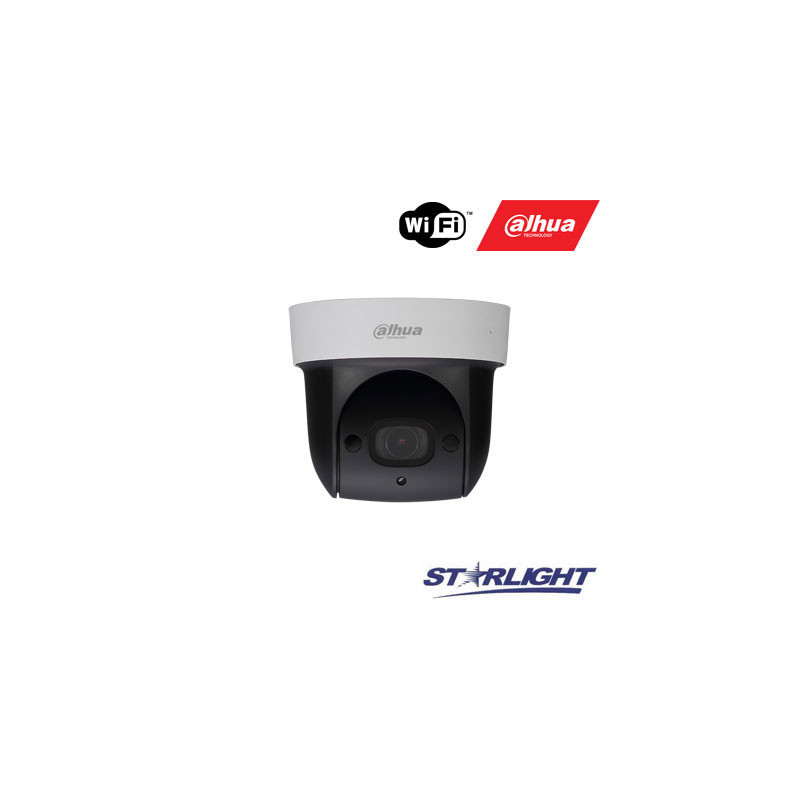

Mini IP controlled camera 2MP with IR illumination up to 30m, WIFI, 1/2.7 inch SONY sensor, 4x zoom

Mini IP controlled camera 2MP with IR illumination up to 30m, WIFI, 1/2.7 inch SONY sensor, 4x zoom

Short description:MINI IP controlled camera STARLIGHT 2MP 1080P(1920×1080), high-speed, 1/2.8' Day/Night, IR illumination up to 30 m., integrated microphone, ambarella DSP processor, SONY STARVIS™ CMOS sensor, 2MP(1~25fps), video compression H.265/H.264/MJPEG, WDR (120dB), 3DNR, Zoom: x4 Optical, x16 Digital, integrated WIFI network, for indoor use only, supports ONVIF Profile SG, API standardsBrief technical characteristics:• 2.0 megapixel MINI FULL HD high-speed controllable (PTZ) IP Day/Night STARLIGHT camera with IR illumination; • IVS functions: line crossing, perimeter intrusion, image change, missing object detection; • Integrated microphone; • Audio compression: G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2; • 1/2.8' 2MP SONY STARVIS™ CMOS sensor; • Zoom: x4 Optical, x16 Digital; • Video compression H.265/H.264/MJPEG(Sub Stream); • High-performance Ambarella DSP processor; • Video format PAL; • Operating system LINUX; • Integrated web server; • Remote control and live monitoring via Ethernet (WEB):IE, chrome, firefox, safari; • Free software for camera control (PSS/SMART PSS), video viewing and archiving, using a computer network or the Internet; • Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer; • Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.; • IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, Kentima Solutions AB, LuxRiot AH Software House, Inc., Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.. ; • Effective pixel count 1920(H) x 1080(V); • Video resolution options: 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240); • Compression rate: main stream: 1080P/720P/D1 (1 ~ 25/fps), second stream: D1/CIF(1 ~ 25fps), third stream 720P/D1/CIF (1 ~ 25fps) • Bit rate: H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~10240Kbps; • Support multiple streams simultaneously; • 4pcs. 3rd generation high power IR LEDs (SMART-IR) 850 nm; • Illumination distance 30m.; • Pan: 0° ~ 355° infinite; Tilt: -0° ~ 90°, auto flip 180°; • Angular viewing angle: : 112.5° (Wide) ~ 30° (Tele); • Focal length: 2.7mm (Wide) ~ 11mm (Tele) 4x Optical zoom, F1.6; • Pan/Tilt speed: 'Preset': 100°/sec.; Manual horizontal : 0.1° ~100° /s, manual vertical: 0.1° ~60° /s Depending on zoom); • Focus: Auto / Manual, auto iris; • D/W: switches from color operation to black and white at a certain light intensity; • Min. illumination: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; • Electronic shutter: Auto/Manual, 1/1s~1/30,000s; • White balance: Auto/Manual/ AWB; • BLC / HLC / WDR (120dB); • Ultra DNR (2D/3D): noise reduction technology; • Removable IR filter for Day Night function; • Preset: 300 Preset (Label, camera settings); • Pattern: 5, tours 8; • Motion detection function for presets; • Integrated WIFI network (802.11b/g/n); • Other functions: Auto 'rollover', Auto Parking, Action memory after power recovery; • 10/100 Mb/s network socket (Ethernet -RJ45); • Network protocols: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, Onvif 2.4, PSIA, CGI; • Remote control: Monitoring, PTZ control, system settings, File download, Preview, software upgrade; • 3D position control; • Internal memory: SD/SDHC memory port Max 128GB; • Operating temperature: -30°C ~ 60°C (suitable for indoor conditions only); • Humidity: 10%~90%; • Power supply: DC 12V/1.5A; • Power:10W,13W (IR on); • Dimensions: 132.7 (mm) x 117.9 (mm); • Weight: 0.95kg.

Compatible mounts

• PFB302S; • PFA103; • PFB300C; • PFA150; • PFA151.
