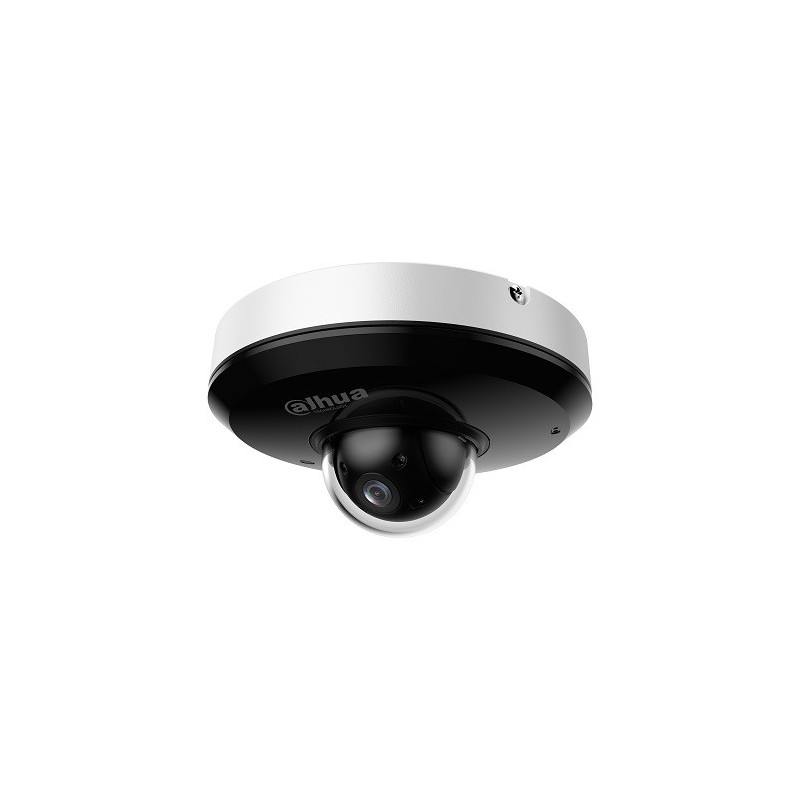

Mini IP camera 4MP 1/2.8 inch with IR up to 20m, 2.8mm~12mm, IK08, IP66,

Mini IP camera 4MP 1/2.8 inch with IR up to 20m, 2.8mm~12mm, IK08, IP66,

Short description:IP dome camera; 4MP(2560 × 1440)@ 1~25fps, STARLIGHT; 1/2.8' inch CMOS sensor; PoE, IR illumination up to 20m; integrated microphone. BLC / HLC / DWDR; IVS, 3D NR, SMD3.0. Min. illumination: Color: 0.005Lux@F1.8; 0.0005Lux@F1.8 B/W; 0Lux IR. Video compression H.265+/ H.264. SD memory port max. 512GB. Zoom: x4 Optical, x16 Digital. Waterproof IP66 (for outdoor use); shockproof IK08, TVS 6000V lightning protection. Supports CGI, SDK, ONVIF (Profile SGT) standards. WizSense; model: SD1A404DB-GNY.Brief technical characteristics:• IVS functions: crossing the line, intrusion into the perimeter, image change, missing object detection. • Smart Motion Detection (SMD3.0), Human tracking function, face detection, people counting function, perimeter protection. • 1/2.8' 4MP CMOS sensor. • Zoom: x4 Optical, x16 Digital. • Video compression: H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+. • Audio compression: PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1. • ROM 256GB, RAM 512GB. • Scanning system: Progressive. • Remote control and live monitoring via Ethernet (WEB): IE 9+, Chrome 41+, Firefox 50+, Safari 10+. • Supported programs: DMSS, DSS Pro. • Free program that allows the user to monitor, view recordings from cameras from different objects, the program allows you to record images to a computer. • Free program for monitoring via mobile phone or handheld computer (iOS, Android) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc. • IP camera can be used with software from other companies. • Number of effective pixels: 2560 (H) × 1440 (V). • Available image resolution options: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240). • Compression rate: Main stream: 4M/ 3M/ 1080p/ 1.3M/ 720p @(1~25/fps), Second stream: D1/ VGA/ CIF @(1~25fps), Third stream 720p@(1~25fps). • Bit rate: H.264: 96 Kbps-14,848 Kbps; H.265: 38 Kbps-8,960 Kbps. • Multi-stream support: 3 streams. • Pan: 0°-355°, Tilt 5°-90°. • Viewing angle: H: 96.9°-31.6°; V: 51.4°-17.8°; D: 116.2°-36.4°. • Focal length: 2.8 mm -12 mm, F1.8-F2.7. • Manual control speed: Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s. • Preset (label) speed: Pan: 0.1°/s-80°/s; Tilt: 0.1°/s-40°/s. • Preset: 300 Preset (Label, camera settings). • Tours 8. • Focus: Auto / manual, semi-automatic. • D/N: switches from color to black and white at a certain light intensity. • Min. illumination: 0.005Lux@F1.8; 0.0005Lux@F1.8 B/W; 0Lux IR. • 3pcs. IR LEDs. • Illumination distance 20m. • Electronic Shutter: Auto/Manual, 1/1s~1/30,000s. • White Balance: Auto/Manual, Tracking, Indoor, Outdoor, Natural Light, Street Light, etc. • (EIS- Electronic Image Stabilization) electronic image stabilization. • Defog function: electronic. • S/N ratio > 55dB. • BLC / HLC / WDR 120dB. • NR (2D/3D): noise reduction technology. • Motion detection function for presets. • 10/100 Mb/s network port (Ethernet RJ-45). • Network protocols: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP; ONVIF (Profile S Profile G Profile T); CGI; SDK. • Remote control: monitoring, PTZ control (DH-SD), system settings, file download, preview, software upgrade. • Maximum simultaneous user connection: 20 (total flow 64M). • Recording: to FTP, SFTP or NAS servers. • Audio input 1 channel. • Audio output 1 channel. • Waterproof IP67. • Internal memory: micro SD port max. 512GB. • Operating temperature: -30°C ~60°C. • Humidity: <95%. • Power supply: DC 12 V/ 2A (±10%), PoE (802.3af). • Power: basic 4W, max. 13W. • Dimensions: 65.4 mm x 128 mm. • Weight: 500g.Compatible mounts:• PFA120. • PFB305W. • PFB220C. • PFA150. • PFA140. • PFA151. • PFA107.
