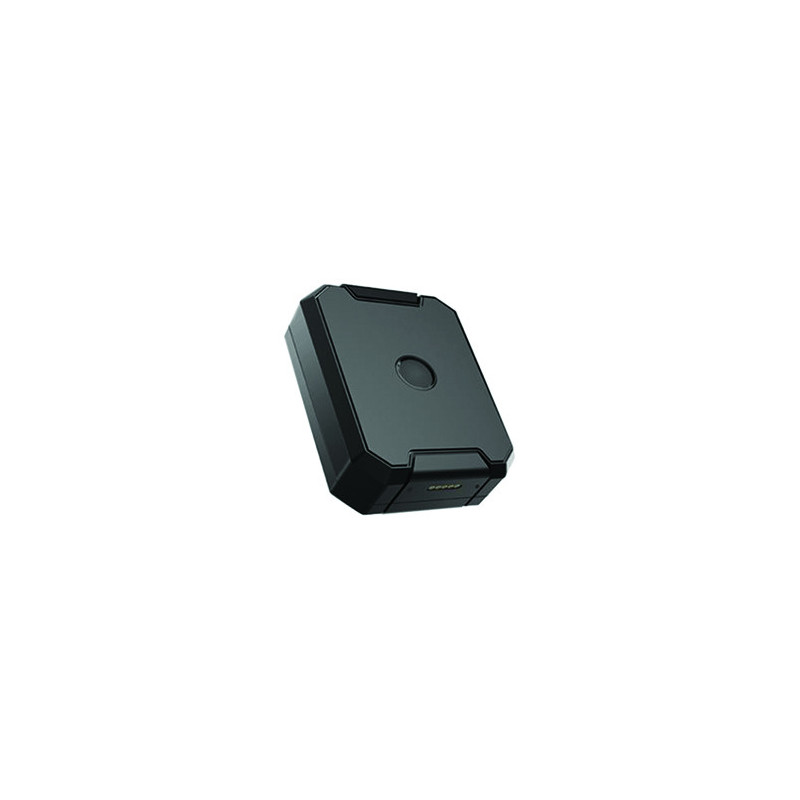

Magnetic GPS tracking device

Magnetic GPS tracking device

No more cables or external power sources. This rechargeable GPS device has a 6000mAh internal battery that allows the device to work in standby mode for up to 25 days. The small and easy-to-mount GPS device can be used to ensure the security and tracking of vehicles, cargo, and high-value assets.The tracker requires a SIM card with internet data. The SIM card is not included.
Features:

• Location determination by GPS, LBS and Wi-Fi


• Disconnection alarm


• 6000mAh rechargeable battery


• Strong magnet


• Dust and water resistant (IP65)


• Sound detection alarm (from 50 decibels)


• GSM card is not included in the package.


• Location mapping on Google Maps

GSM technical data:

• GSM frequency: 850/900/1800/1900MHz


• GPRS: Class 12, TCP/IP


• Memory: 32+32Mb


• Phase error: RMSPE<5,PPE<20


• Maximum frequency error: ±0.1ppm

GPS technical data:

• GPS chip: MTK high sensitivity chip


• Frequency: L1, 1575.42MHz C/A code


• GPS channels: 32


• Location detection: <10 meters


• Tracking sensitivity: -165dBm


• Minimum signal level required for setpoint during cold start: -148dBm

Time to first fix (TTFF):

• Coordinate acquisition time when time and last location coordinate are known (hot start) <1 sec.


• Coordinate acquisition time when the initial coordinate and time are not known (cold start) <32 sec.

Other technical data:

• Integrated GPS, Wi-Fi antenna


• LED: Power (red), GPS (blue), GSM (green)


• Operating temperature: -20C~ +70C


• Operating voltage: 3.7V/60mA


• Standby time: 25 days


• Battery: 6000mAh/3.7V lithium polymer battery


• Operating voltage: 9-36VDC/32mA (12VDC)


• Size: 85.0×58.0×29.00mm


• Weight: 161g;230g (with magnetic cover)


• Working mode: 100 hours (GPS data uploaded every 10 seconds)

Coordinated and tested operation with the Tracksolid.com operating platform on Windows, Android, iOS systems.Free use for one year. There is an option to purchase further use of the platform. The app allows you to configure the device and monitor all collected information - location, time, status, etc.
