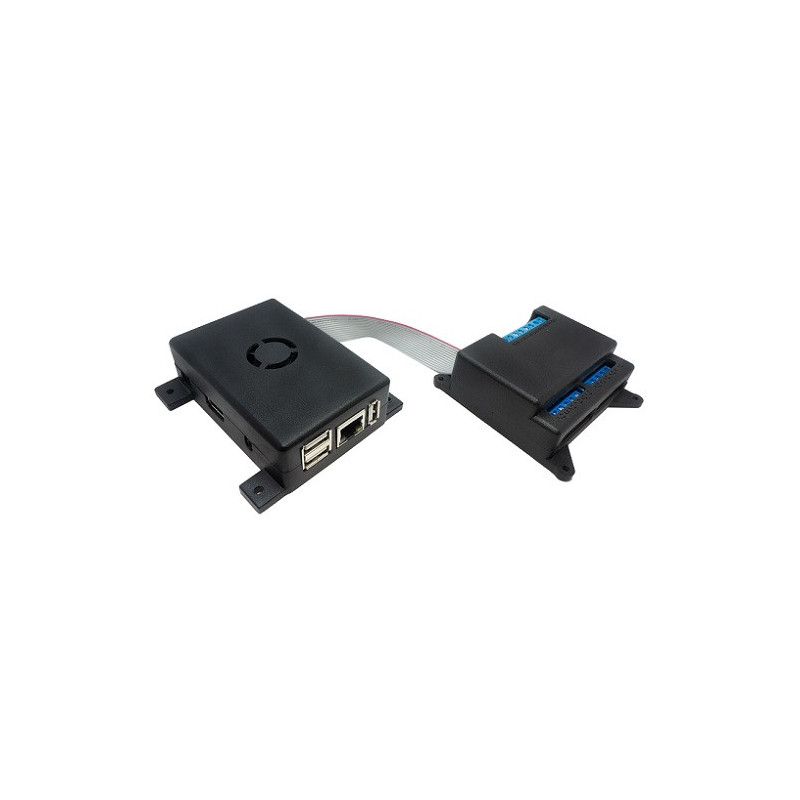

LPR Box ORTHUS device for car license plate recognition. Works with 2 IP cameras.

LPR ORTHUS is a device designed for automatic license plate recognition.

Features:

• LPR computers are autonomous devices with quad-core processors and the Android operating system. These devices are designed for automatic vehicle license plate recognition and barrier control. Modern license plate recognition algorithms allow this system to recognize license plates quickly, thus reducing the time cars spend at barriers.


• LPR ORTHUS is a vehicle license plate recognition device with an additional relay block for controlling the barrier. This device allows for the automation of vehicle entry and exit checks at one-way checkpoints.


• LPR ORTHUS works with 2 IP cameras.


• Capture and identification of vehicle license plates. Recognition accuracy of more than 98%. Recognition of license plates from more than 35 countries of the world and the ability to add new ones. Recognition of colored license plates.


• Supports RTSP protocol. WEB program for configuration and monitoring. Monitoring the number of cars entering and leaving via the Internet. Remote control and alerts via Telegram.


• It is possible to connect an external data storage device (HDD).


• Visual confirmation of license plate recognition and vehicle entry into the parking lot.


• License plate whitelists. The system shows in the WEB application with a green or red frame whether a vehicle is allowed to enter or not. This allows you to quickly find out if a vehicle is included in the whitelist. Possibility to set a parking space limit to control the flow of cars.


• Possibility of creating license plate groups.


• Generates reports based on a specific license plate, time or selected period (screenshot of vehicle and license plate, arrival/departure time) with the ability to export to xlsx csv format.


• Small dimensions: relay block: 85x80x30 mm, Orthus computer: 85x90x30 mm. Robust and durable housing, VESA compliant 75x75. Easy installation.

Application:

• Parking lots.


• Garage and yard gates.


• Barriers.

Technical specification:

• CPU: Quad-core Cortex A7.


• Number of supported cameras: 2.


• Compression algorithm: H.264.


• Resolution: 1080p@30fps.


• Security: Password protection.


• Barrier control: 4 relay outputs.


• Network interface: 10/100 Ethernet RJ45.


• Memory card: MicroSD up to 32Gb.


• Video output: HDMI.


• USB: USB 2.0.


• Relay: 10A 250V AC.


• Catering: 5V DC.
