Livestock GPS tracking device

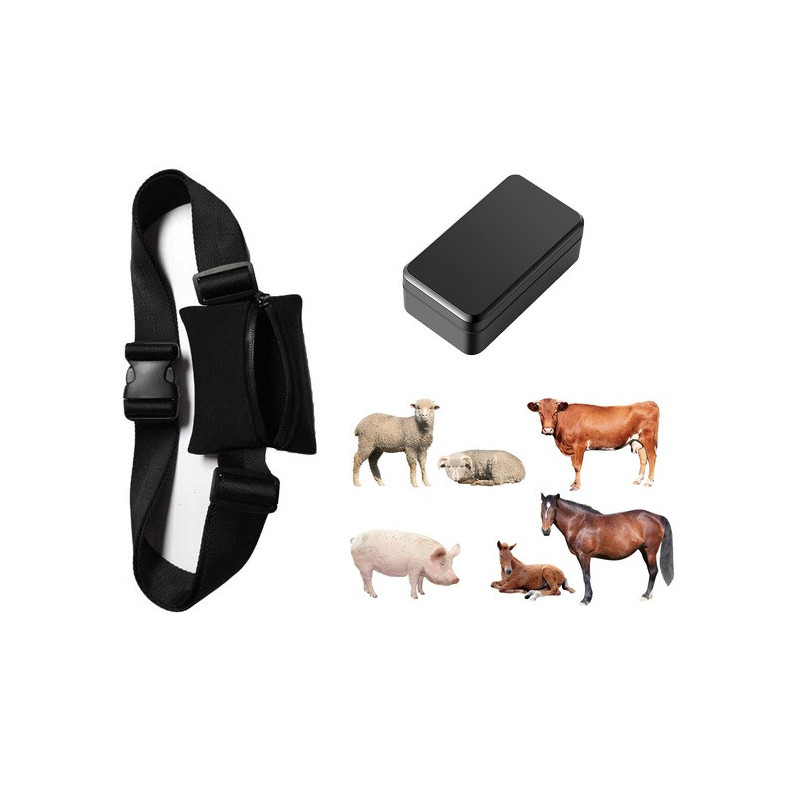

Animal tracking device GPS, with strap

• This device adapts to the conditions typical of pastures: it supports a wide operating temperature range and IP67 class dust and water resistance, supporting 24/7 monitoring in any environmental conditions. Put this GPS tracking device in the zippered pocket of your collar to know the location of your pet and ensure safety. You will not have to worry if the animal strays from the herd.


• Set an area on the map where your pet can move freely and you will receive an instant alert as soon as it crosses its boundaries.


• The 5000 mAh battery provides up to 90 days of standby time with smart battery saving mode to avoid regular replacement. The special battery saving mode, which determines the location only once a day, allows you to use the tracker for up to 3 years.


• The device is quite light, small, and you can attach it to your animals without causing them any discomfort. It comes with a collar strap.

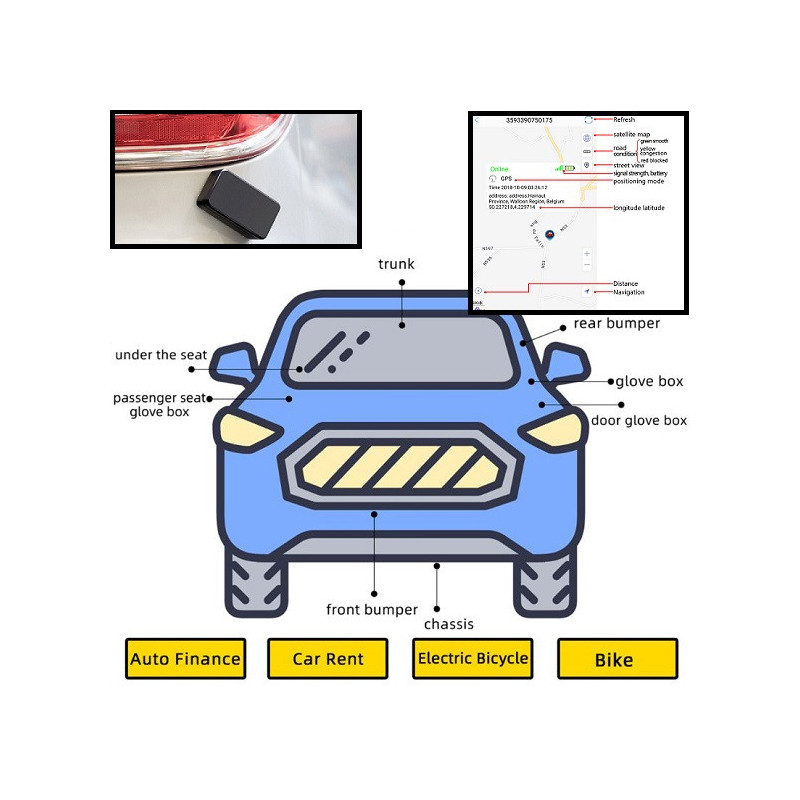

• The tracking device is magnetic and can also be used to track vehicles.


• Perfect for cars, motorcycles or bicycles: fits well on metal parts, does not require installation. The compact design of the device is easy to hide. Whoever uses your vehicle may not even suspect that they are being tracked.

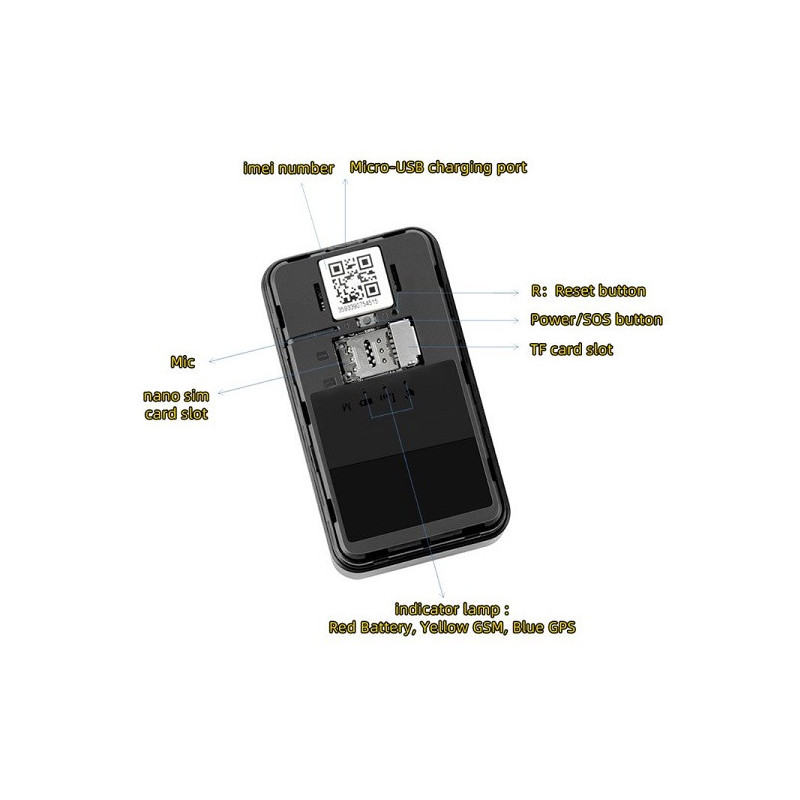

• This device provides a detailed report of your location and activity in real time SMS, via a free app or online. The device allows you to send an audio recording of the environment, has a built-in microphone, a power button, and SIM and TF card slots.

The tracker requires a SIM card with internet data. The SIM card is purchased separately.

Features:

• Real-time location based on GPS / Beidou / AGPS / LBS.


• Tracking in the app, Web or SMS.


• Virtual fence (geo-fence, geo fence).


• Audio recording.


• Location history.


• Dirt and water resistance IP67.


• Integrated GPS and GSM antenna.


• Location mapping on Google maps.


• GSM card is not included.

Technical data:

• GSM frequency: 850/900/1800/1900 MHz.


• GPRS: Class 12.


• GPS location detection: lt;10 meters.


• LBS location detection: gt; 100 meters.


• Integrated GPS and GSM antenna.


• Charging voltage/current: DC 5V / 0.5-1A.


• Battery: 5000mAh Li-Poly.


• Charging method: USB (included micro USB - USB Type-A charging cable).

Time to first fix (TTFF):

• Coordinate acquisition time, kai time and last location coordinate is known (hot start) lt;2 sec.


• Coordinate acquisition time, kai initial coordinate and time are unknown (cold start) lt;38 sec.


• Operating time: 1 month (kai positioning every 10 minutes); 2 months (kai positioning every 1 hour); 3 months (kai positioning every 2 hours); 4 months in smart battery saving mode (kai positioning turned off at night); 3 years in extreme battery saving mode (kai positioning once a day).


• LED indicator: red / yellow / blue (battery level, GMS signal, GPS signal).


• Security class: IP67.


• Operating temperature: -20°C~ +45°C.


• Operating humidity: 5%-95%.


• Weight: 142g (without collar strap).


• Collar strap length: 60~100 cm (adjustable).


• Material: ABS+PC.


• Size: 80x45x30 mm.
