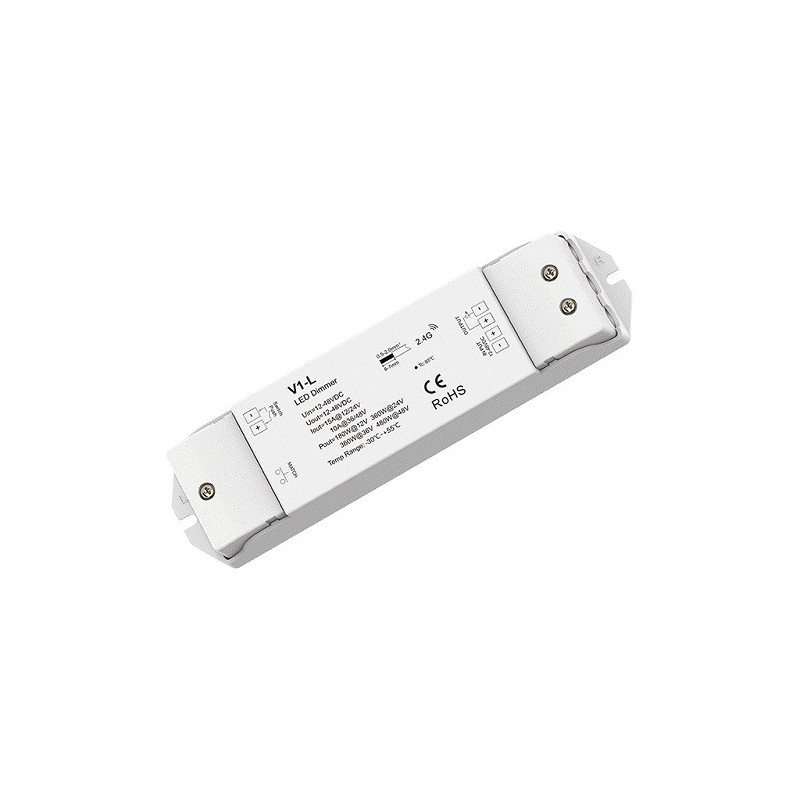

V1-L LED Controller, 12-48V, 1x15A, With Push-Dim


Constant voltage controller for single color LED strips, supporting 12-48V DC and 1x15A output. Features: 4096 dimming levels, remote control compatibility and multiple safety protections.


  • Supports single-color LED strips with smooth dimming from 0-100% across 4096 levels.
  • There is an automatic transfer that allows synchronization with up to 25 additional controllers via 30m.
  • Compatible with 2.4 GHz RF remote controls and the SkySmart smart app, offering a variety of control options.
  • Overload, overheating and short circuit protections are included for greater safety and reliability.

Features

Product type LED Controller
Model V1-L
Compatibility Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6, R11, R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K

Specifications

Supply voltage 12V-48V DC
Output voltage 12V-48V DC
Output current 15A@12/24V; 10A@36/48V
Output power 180W@12V; 360W@24V; 360W@36V; 480W@48V
PWM frequency 500Hz
Grayscale 4096 levels
Dimming range 0-100%
Operating distance By 30m
Safety class IP20 (not waterproof)
Operating temperature -30~+55°C
Dimensions 175 x 45 x 27 mm
Weight 102g
Color White

Safety warning

Overload, overheating, reverse polarity and short circuit protection.

Height20 mm
Length70mm
Weight45 g
Width30 mm
