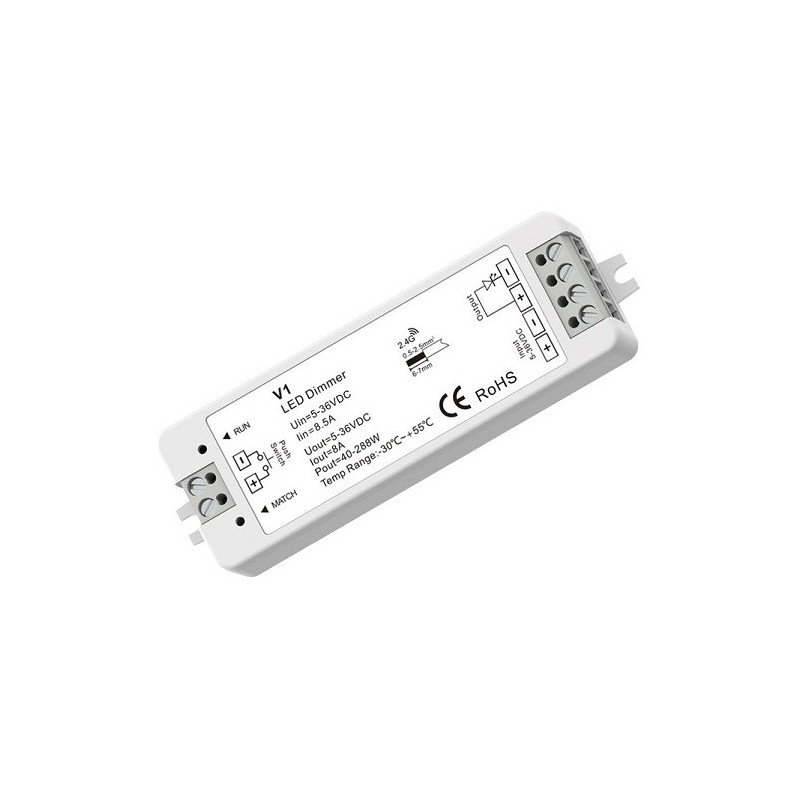

LED Controller - V1 5-36V 8A Push-Dim 4096 Levels
Product reference: 14-9990001083038
The V1 controller operates at 5-36V DC with a maximum output of 8A for single-color LED strips. It has 4096 brightness levels, supports remote control, and is equipped with overload and short-circuit protection.
LED Controller - V1 5-36V 8A Push-Dim 4096 Levels

LED Controller - V1 5-36V 8A Push-Dim 4096 Levels

Product reference: 14-9990001083038
The V1 controller operates at 5-36V DC with a maximum output of 8A for single-color LED strips. It has 4096 brightness levels, supports remote control, and is equipped with overload and short-circuit protection.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
26,57 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

V1 Controller, 5-36V, 1x 8A, Push-Dimm


V1 The controller operates 5-36V DC with maximum output for 8A single-color LED strips. It has 4096 dimming levels, supports remote control, and includes overload and short-circuit protection.


  • Supports single-color LED strips with smooth dimming through 4096 levels (0-100%) without flicker.
  • There is a Push-Dimm function and can be controlled via RF remote controls and a smart app.
  • Automatically transmits signals to synchronize with other controllers up to 30m away, allowing for wider control.
  • Includes overload, overheating and short circuit protection for added safety.

Features

Product type LED Controller
Model V1 Controller

Specifications

Supply voltage 5V - 36V DC
Output current 8A
Output power 40W @ 5V; 96W @ 12V; 192W @ 24V; 288W @ 36V
PWM frequency 2000Hz
Light levels 4096 levels
Dimming range 0-100%
Operating distance By 30m
Security class IP20 (not waterproof)
Operating temperature -30°C to +55°C
Dimensions 97 x 33 x 18 mm
Weight 42g
Color White

Additional information

Compatibility Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6, R11, R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22, T1, T1-1, T1-K, KV, KC, T3, T3-1, T3-K
Number of channels 1
Operating frequency RF 2.4GHz
Certificates CE, EMC, LVD, RED, RoHS

Height22 mm
Length60mm
Weight45 g
Width35mm
