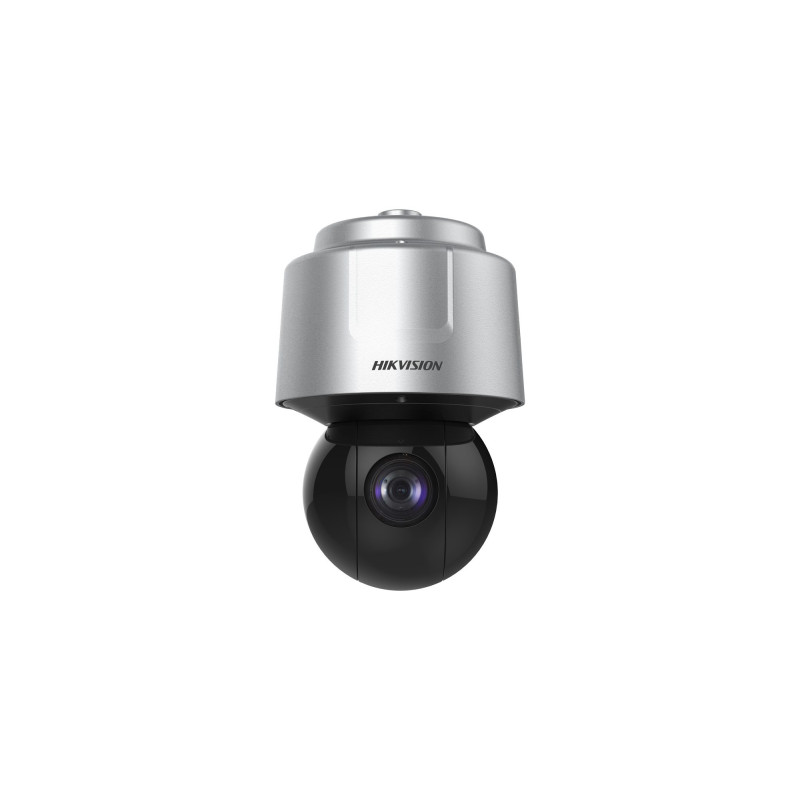

IP speed dome camera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)

Product reference: 26-6931847134594

IP speed dome camera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)

Product reference: 26-6931847134594

You have 3 products in compare list, please remove someone and try again

Add to compare

1 062,14 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Camera
Sensor 1/1.8" progressive scan CMOS
Max resolution 1920 × 1080
Min. lighting Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Shutter speed 1/1 s to 1/30,000 s
Day Night IR cut filter
Zooming 25x optical, 16x digital
Slow shutter Yes
DOROUS
Detect (25px/m): 2034.5
Observe (63px/m): 807.3 m
Recognize (125px/m): 406.9 years
Identify (250px/m): 203.4 years

Lens
FOV 5.9 mm to 147.5 mm
FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
Focusing Semi-auto, manual, auto, rapid focus
Aperture Max. F1.5
Zoom speed Approx. 4.8 sec.

PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan speed Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt speed Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proportional Pan Yes
Pre-saved settings 300
Stopping saved settings Yes
Patrolling 8 patrols, up to 32 presets for each patrol
Scanning saved modes 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D position Yes
PTZ status display Yes
Task schedule Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off memory Yes

Main stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
Secondary flow
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 24fps (704x480, 640x480, 352x240)
Third stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)
Image compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video bit rate 32 Kbps to 16384 Kbps
H.264 type Baseline profile, main profile, high profile
H.265 type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Sound
Audio compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32) to 192 Kbps (MP2L2)

Internet
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Live video viewing Up to 20 channels
API Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
Smooth flow Yes
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Internal memory NAS (NFS, SMB/CIFS), ANR
Customer iVMS-4200, Hik-Connect, HikCentral
Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Day/Night mode Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) 140dB WDR
SNR ≥ 52 dB
Fog removal Optical defog
Image stabilization EIS (Built-in gyroscope to improve EIS performance)
Photo beautification BLC, HLC, 3D DNA
Privacy mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional focus Yes
Regional exposure Yes

Interface
Video output 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
Web interface 1 RJ45 10M/100M self-adaptive Ethernet port
Storage location Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Sound 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 7 alarm inputs, 2 alarm outputs
RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive

Features
Main functions Motion detection, video tampering alarm, alarm input and output, exception
Smart features Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
Interface Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart tracking Manual tracking, auto-tracking

Smart features
Facial recognition Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
Perimeter security
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Road traffic functions Support vehicle detection (license plate number, vehicle model, and vehicle color recognition)

Home
System parameters 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Size 231.1 mm × 355.6 mm ( 9.10" × 14")
Weight Approx. 6 kg (13.23 lb.)
Working conditions Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Main functions Mirror, password protection, watermark, IP address filter
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approvals
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 7);
KC (CN 32: 2015, CN 35: 2015)
Security
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environmental protection
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
