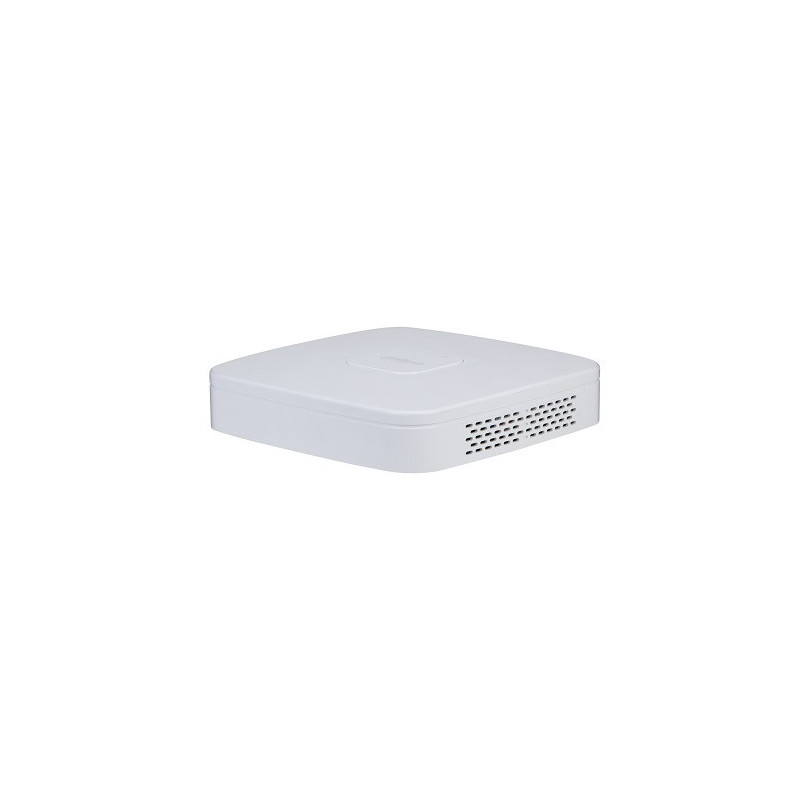

IP Recorder - 4 Cameras, 4K 12MP, 1HDD, 80Mbps, H.265/H.264, IVS

Short description:
4-channel IP camera 4K video recorder, Lite series. Max. 4x 4MP@25 fps. Supported IP camera resolutions: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF, QCIF. Maximum data rate up to 80Mbps. Compression Smart H.265+/H.265/Smart H.264+/H.264. Available from 1 HDD to 20 TB. 1-kan. VGA, 1-kan. HDMI (up to 3840×2160). Smart features: AI, SMD Plus. Supports EPTZ; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK standard. Model: NVR4104-4KS3.
Brief technical characteristics:
• Digital 4-channel IP recorder 12MP 80/80/60Mbps.
• High-quality industrial-grade processor.
• AI functions via recorder: SMD Plus.
• AI functions via camera: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map.
• Number of AI channels: face detection/recognition (4 channels per camera only); perimeter protection (4 channels per camera only); SMD Plus 4 channels per recorder (4 channels per camera).
• Convenient graphical user interface. Software Linux, GUI system.
• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology.
• Audio compression: PCM; G.711A; G.711U; G.726.
• The following operations are performed simultaneously: recording, live image display, recording review, recording copy, device control, remote access via network.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox, Safari, Edge.
• Free software for device control, video review and archiving, using a computer network or the Internet.
• Free program for monitoring via mobile phone or handheld, tablet computer (iOS, Android).
• Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF.
• Network bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for transmission.
• Decode camera resolution without AI: 1 ch. x12MP@25 fps; 2 ch. x8MP@25 fps; 3 ch. x5MP@25 fps; 4 ch. x4MP@25 fps.
• Decoded camera resolution with AI: 1 ch. x12MP@25 fps; 1 ch. x8MP@25 fps; 2 ch. x5MP@25 fps; 3 ch. x4MP@25 fps.
• Max IP camera inputs 4.
• Automatic IP camera search.
• Supported IP cameras: Dahua, Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha; ONVIF22.12.
• HDMI connector and VGA connector simultaneously: 1vnt. HDMI resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1vnt. VGA resolution: 1920 × 1080, 1280 × 1024, 1280 × 720.
• HDMI connector separately: 1vnt. resolution: 1920 × 1080, 1280 × 1024, 1280 × 720.
• VGA connector separately: 1vnt. resolution: 1920 × 1080, 1280 × 1024, 1280 × 720.
• Screen division: main screen 1/4, second screen 1/4.
• Recording playback channels: 1/4.
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Hard disk: max. 1 pc. SATA disk.
• Maximum HDD capacity: 20TB.
• USB port: 2 vnt.(2x USB2.0).
• Copying records: USB / network.
• 10/100Mb/s network socket 1vnt. (Ethernet RJ-45) for connecting to the Internet.
• Network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (supports IP camera, DVR, NVS); ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK.
• P2P iCloud technology (IE): No need for static IP address, no need to open ports.
• Recording modes: General, motion detection; smart; alarm.
• Smart alarm: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map.
• General alarm: Motion detection; privacy masking; video loss; scene change; PIR alarm; IPC external alarm.
• Anomaly alarm: camera disconnection; storage error; HDD disk full; IP conflict; MAC conflict; login blocked; cybersecurity exception.
• Alarm transmission methods: recording; snapshot SNAPSHOT (panoramic); IPC external alarm output; sound; buzzer; log, by preset; el. Email (sends photo).
• Record search: by date/time or events (e.g., motion detection, alarm).
• Playback functions: instant playback, general playback, event playback, tag playback, smart playback.
• OSD: Camera name, time, video loss, motion detection, recording.
• Supports EPTZ and one-click arming and disarming the security system.
• Setting of color, brightness and contrast for each IP camera.
• Unlimited number of users (possibility to grant different rights to each user).
• Time synchronization: automatic. Automatic summer/winter time adjustment.
• System recovery after power failure.
• Ability to update IP camera software (firmware) via NVR.
• Power supply: 12V DC, 2A.
• Energy consumption: lt;10W (without HDD).
• Humidity 10~93%RH (non-condensing).
• Operating temperature: -10°C~+55°C.
• Weight: 0.45 kg without hard drive.
• Dimensions: 1U, 204.6 mm × 206.4 mm × 45.6 mm.
