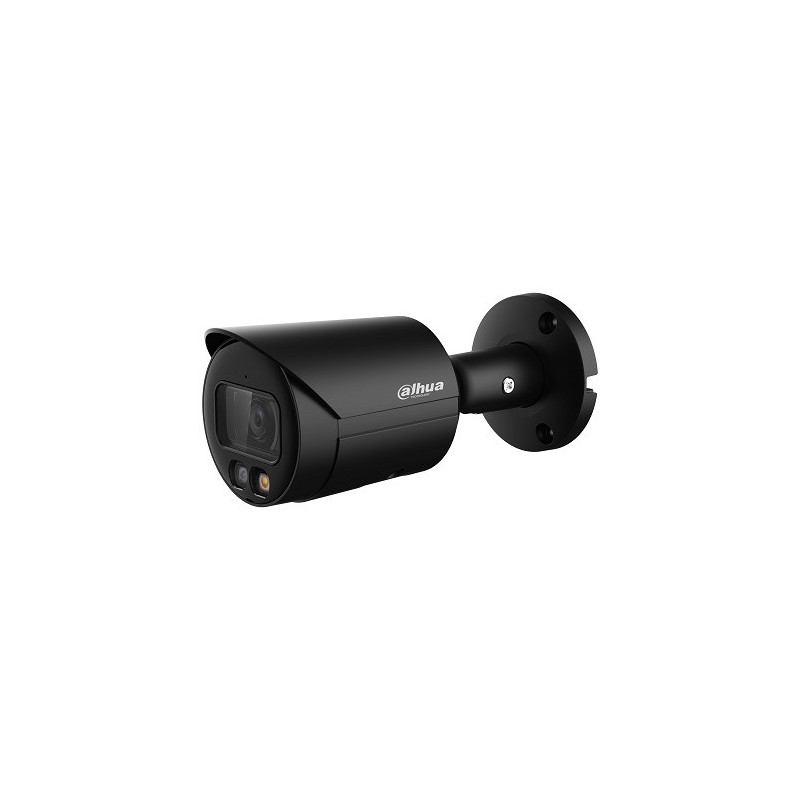

IP network camera 8MP HFW2849S-S-IL 2.8mm

IP network camera 8MP HFW2849S-S-IL 2.8mm

Short description:
IP camera FULL-COLOR/STARLIGHT cylindrical 8MP with integrated microphone, 1/2.7" inch CMOS sensor, IR+LED (IR+warm light) illumination up to 30m, 8MP(3840 × 2160) @1~20fps, but also supports 2688 × 1520 resolution @1~25fps; fixed lens: 2.8mm F1.6 viewing angle 111°, H.265+/H.265/H.264, BLC / HLC / WDR 120dB, ROI, IVS, corridor mode, SMD Plus; 3D NR: noise reduction technology, SD memory port max. 256GB, PoE, IP67 moisture resistant suitable for outdoor and indoor conditions, 3-axis adjustment, PoE, supports ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone standard. Model: DH-IPC-HFW2849S-S-IL, 2.8mm, color black.
Brief technical characteristics:
• 8MP FULL-COLOR/STARLIGHT cylindrical IP camera with dual IR+LED illumination (IR+LED white light) and integrated microphone.
• IVS functions: line crossing, perimeter intrusion.
• 1/2.7" inch 8MP CMOS sensor.
• 2.8mm fixed lens F1.6 (lens viewing angle about 111°).
• Integrated microphone.
• Number of effective pixels: 3840 (H) × 2160 (V).
• Audio compression: G.711a; G.711Mu; PCM; G.726.
• Video compression: H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+.
• Operating system LINUX.
• Scanning system: Progressive.
• IR+LED illumination up to 30m.
• 1vnt. IR + 1vnt. warm light LED.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS, DMSS), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view recordings from cameras from different objects, the program allows you to record images to a computer.
• Free program for monitoring via mobile phone or handheld computer (DSS mobile phone surveillance software) suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc..
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot AH Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Available image resolution options: 3840 × 2160; 3072 × 2048; 3072 × 1728; 2880 × 1620; 2688 × 1520; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240).
• Compression rate: main stream: 3840 × 2160 @(1-20 fps) / 2688 × 1520@(1-25 fps); sub stream: 704 × 576@(1-25 fps) / 704 × 480@(1-25 fps).
• Stream rate: H.264: 32 kbps-8192 kbps H.265: 12 kbps-8192 kbps.
• Min. illumination: 0.008 Lux@F1.6.
• 3D NR: noise reduction technology.
• Corridor mode (flip 0°/90°/180°/270°).
• ROI function.
• S/N ratio gt; 56dB.
• Electronic shutter: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC / HLC / WDR120dB.
• Video format: PAL.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone.
• Recording: FTP, NAS or SFTP servers.
• Remote control: Monitoring, EPTZ digital zoom zoom, system settings, File download, Preview, software update.
• Unlimited number of users (possibility to assign different rights to each user).
• Maximum simultaneous user connections: 20 (total flow 48M).
• Internal memory: SD memory port max. 256GB.
• Privacy zones: 4.
• Operating temperature: -40°C~+60°C, lt;95% RH.
• 3-axis mechanism for camera adjustment (Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°).
• Moisture resistant IP67 suitable for outdoor and indoor conditions.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 2.7W (12V DC), 3.4W (PoE); max. 5W (12V DC), 5.9W (PoE).
• Weight: 470 g.
• Dimensions: 166.2 mm × 70 mm × 70 mm.

Compatible mounts:
• PFA134.
• PFA130-E.
• PFA152-E.
