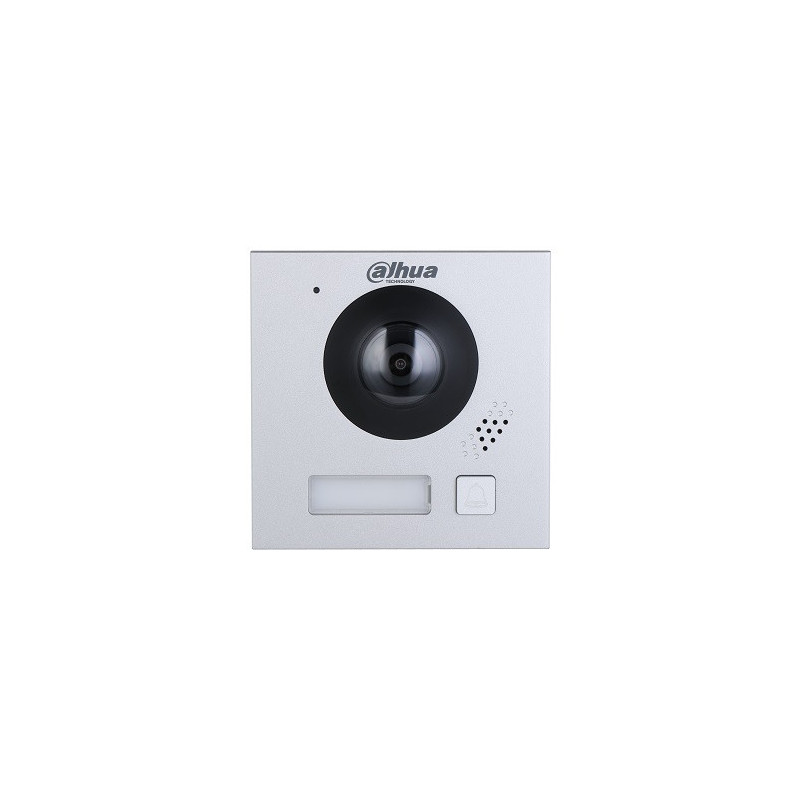

IP Intercom Camera - Modular 2MP FULLHD 160°, SIP2, IK07, IP65, 12 VDC / 2-Wire / PoE
Product reference: 14-6923172599322

The modular apartment door station VTO4202F-P1 with a 2 MP CMOS camera features a wide field of view and supports two-way audio communication. It operates on a digital 2-wire system, allows you to remotely unlock the door and store video recordings on a Micro SD card.

IP Intercom Camera - Modular 2MP FULLHD 160°, SIP2, IK07, IP65, 12 VDC / 2-Wire / PoE

Product reference: 14-6923172599322

The modular apartment door station VTO4202F-P1 with a 2 MP CMOS camera features a wide field of view and supports two-way audio communication. It operates on a digital 2-wire system, allows you to remotely unlock the door and store video recordings on a Micro SD card.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
23580
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

IP Intercom Camera - Modular 2MP FULLHD 160°, SIP2, IK07, IP65, 12 VDC/2-Wire/PoE


2Mp Modular Apartment Door Station VTO4202F-P1 has a 2 MP CMOS camera with a wide viewing angle and supports two-way audio communication. It operates on a digital 2-wire system, supports remote unlocking and allows video recording on a Micro SD card.


  • High-resolution 2 MP camera with a wide viewing angle for better visibility.
  • Supports remote unlocking and two-way audio for convenience and security.
  • Durable aluminum housing with IP65 protection, suitable for outdoor use.
  • Expandable with Micro SD support, allowing video recording and playback.

Features

Product Type Intercom Camera
Model VTO4202F-P1

Specifications

Main Processor Built-in Processor
Operating System Embedded Linux
Button Type Mechanical
Number of Buttons 1
Inter-inspection CGI; ONVIF
Network Protocol UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP
Camera 1/2.9' 2MP CMOS
Viewing Angle H: 168.6°; V: 87.1°; D: 176.7°
WDR 120dB
Noise Reduction 3D NO
Image Compression H.265; H.264
Video Resolution Main stream: 720p; Sub stream: 1080p
Video Frame Rate 25 fps
Audio Compression G.711a; G.711u; PCM
Audio Input Channel 1
Audio Output Built-in speaker
Audio Mode Two-way audio communication
Memory Supports Micro SD card (up to 256 GB)
Power Source Dahua 2-wire switch (max. power supply distance 50 m), 48 VDC, 1 A; PoE (802.3af/at)
Product Dimensions 100.0mm x 100.0mm x 49.4mm
Protection IK07; IP65
Operating Temperature -30°C to +60°C
Working Humidity 10%-90% (RH), non-condensing
Working Environment Outdoor
Power ≤4W (standby), ≤5W (operation)
Gross Weight 0.43 kg
Certificates CE
