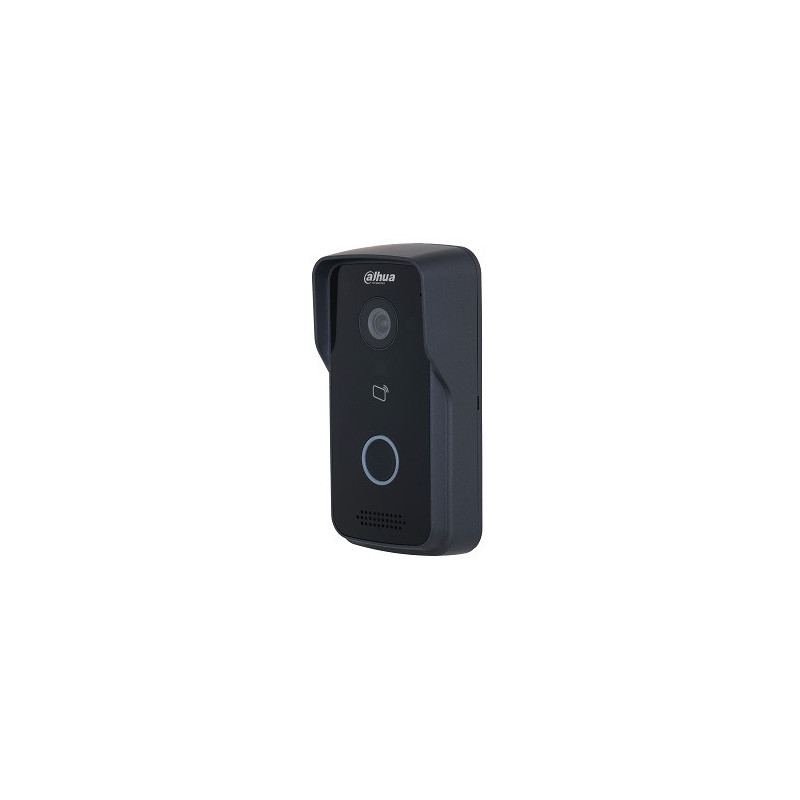

IP doorphone color camera, 2MP 107°, IC card reader, SIP

IP doorphone color camera, 2MP 107°, IC card reader, SIP

Villa IP outdoor doorbell color camera (Smart Doorbell), 1/2.8' 2MP 107°, calling to monitors, unlocking with a mobile application via smartphone or tablet, IC card reader, H.264, H.265, RJ45 for internet connection, D/N backlight, calling to mobile application without monitor, model: VTO2111D-P-S3Brief technical characteristics:

• High-quality microprocessor.


• Operating system LINUX OS.


• H.264, H.265 Video Compression Technology.


• Integrated 1/2.8' 2MP CMOS HD Camera.


• Camera viewing angle 107°.


• Supports card unlocking, unlocking via indoor monitor and remote unlocking via smart app (via phone, tablet).


• Automatic switching to day/night mode (D/N).


• Supports IR illumination and night vision.


• IC card reader (suitable for 13.56MHz Mifare cards).


• About 10,000 cards are supported.


• Card scanning distance: 0 cm-4.5 cm.


• The camera allows you to view the image on a computer, IP phone or smartphone.


• 3D-NR: noise reduction technology, echo cancellation.


• Audio compression: G.711a; G.711u; PCM.


• Integrated speaker.


• Two-way conversation.


• Mechanical call button.


• 10/100 Mb/s network socket (Ethernet RJ-45) for connecting to the Internet.


• Network protocols: IPv4; RTSP; UDP; DNS; P2P; RTP; TCP; SIP; supports ONVIF; CGI standards.


• P2P iCloud technology (IE): Does not require a static IP address, no need to open ports.


• Video resolution: main stream 720p, WVGA, D1, CIF; sub-stream 1080p, WVGA, D1, QVGA, CIF.


• APPS (DMSS, iDMSS) are suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc.


• Calling a mobile application without using a monitor (VTH).


• Calling to monitors, control center, mobile phone, tablet.


• Relay lock control.


• RS-485 connection.


• Power supply: DC 12V, 1A / standard PoE.


• Power consumption: Standby mode: 1W, Operating mode: 5W.


• Working environment: -30°~+60°, 10-90% RH (non-condensing).


• Installation: Surface-mounted.


• Protection degree: IP65.


• Body material: PC, acrylic.


• Dimensions: 135.1mm× 70.6mm× 34.6mm.


• Weight: 326 g.


• Color: black.
