IP Cameras - Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520 Outdoor PoE IP67
Product reference:
14-6942160420707

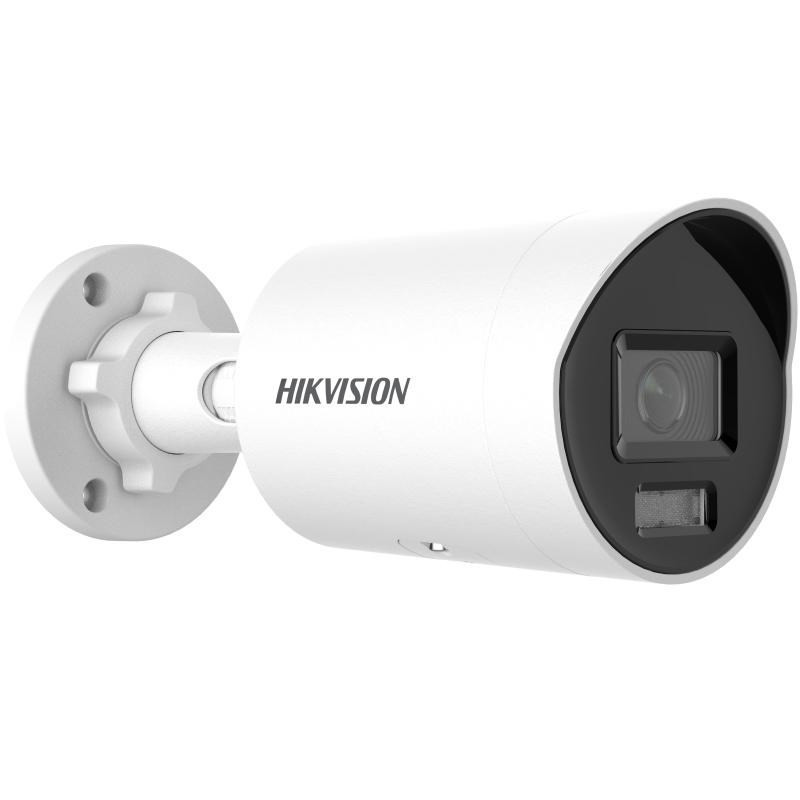

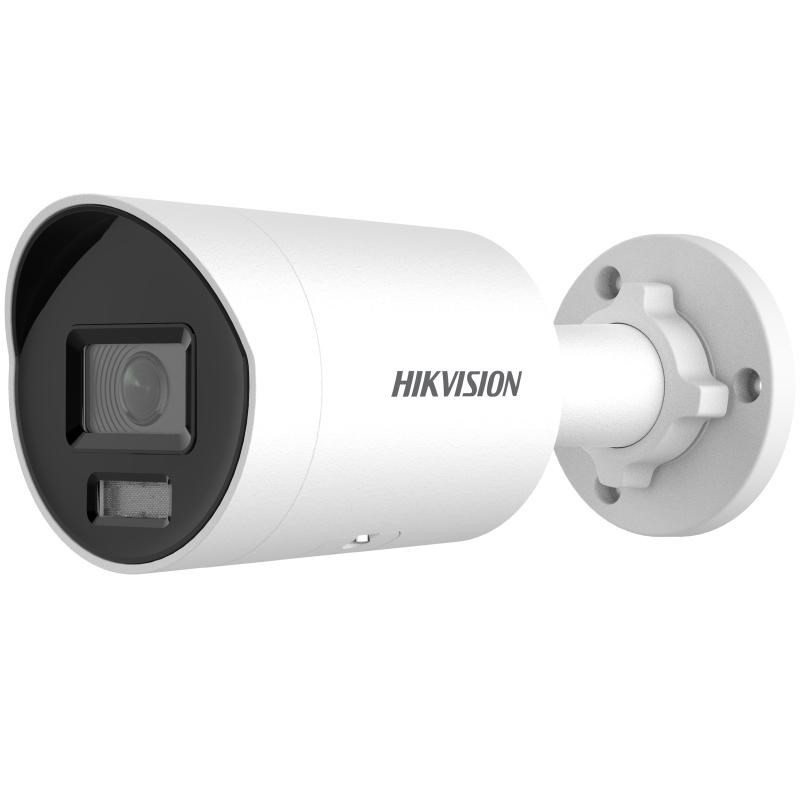

The Hikvision Pro Series DS-2CD2046G2H-IU bullet-shaped IP security camera offers 2688 x 1520 pixel resolution and night vision up to 40 meters away. It is designed for outdoor use, is waterproof (IP67) and supports Power over Ethernet (PoE) technology.
IP Cameras - Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520 Outdoor PoE IP67
Product reference:
14-6942160420707
The Hikvision Pro Series DS-2CD2046G2H-IU bullet-shaped IP security camera offers 2688 x 1520 pixel resolution and night vision up to 40 meters away. It is designed for outdoor use, is waterproof (IP67) and supports Power over Ethernet (PoE) technology.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Hikvision Pro Series with AcuSense DS-2CD2046G2H-IU (2.8Mm) Bullet Outdoor IP security camera 2688 x 1520 pixels for ceiling/wall
The Hikvision Pro Series DS-2CD2046G2H-IU Bullet IP security camera offers a resolution of 2688 x 1520 pixels and has night vision up to 40 meters away. It is designed for outdoor use, is waterproof (IP67) and supports Power over Ethernet (PoE).
- High definition 4 MP image quality with 2688 x 1520 pixels for clear viewing.
- Durable outdoor construction with IP67 water resistance and metal housing.
- Advanced security features including video motion detection and active tampering alarm.
- Flexible ceiling/wall mounting options and PoE power support.
Technical data | |
|---|---|
| Lens mount interface | M12 |
Design | |
| Product color | Black, White |
| Security features | Waterproof |
| Mounting type | For ceilings/walls |
| International Protection (IP) Code | IP67 |
| Housing material | Metal |
| Form | Bullet |
Power supply | |
| Power supply type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 7W |
| DC output current | 0.45 A |
| DC output voltage | 12V |
| Maximum power consumption | 5.5W |
Security | |
| Password reset via el. email | Yes |
| Pixel counter | Yes |
| Audit log | Yes |
| Network Access Storage (NAS) | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Flash magazine | Yes |
| Security algorithms | TLS, HTTPS |
| Privacy protection | Yes |
| Tamper signal active | Yes |
| Heartbeat | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
| Classification of people and vehicles | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Digest authentication | Yes |
| IP address filtering | Yes |
Operating conditions | |
| Storage relative humidity (HH) | 0 - 95% |
| Storage temperature (TT) | -30 - 60 °C |
| Operating relative humidity (HH) | 0 - 95% |
| Operating temperature (OT) | -30 - 60 °C |
Control functions | |
| Internet management | Yes |
| Reset button | Yes |
| Behavioral analysis | Intrusion detection, Line crossing detection |
Weight and dimensions | |
| Weight | 525 g |
| Diameter | 7.44 cm |
| Length | 179.2 mm |
Network | |
| Number of simultaneous live video channels | 6 channels |
| User access level | Administrator, Operator, User |
| Network standards | IEEE 802.3af, IEEE 802.1x |
| Bluetooth | No |
| Live view | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | No |
| Number of users | 32 users |
| Client-to-client compatibility | iVMS-4200, Hik-Connect, Hik-Central |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
Operation | |
| Connectivity technology | Wired |
| Infrared (IR) filters | Yes |
| Dynamic range | 120 dB |
| Number of languages | 33 |
| Language support | Multilingual |
| Day/night mode | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Installation supported | Outdoors |
Packaging details | |
| Package weight | 750 g |
| Package depth | 120mm |
| Package height | 117 mm |
| Package width | 234 mm |
Package contents | |
| Number of cameras | 1 |
Audio features | |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Sample rates | 8 - 48 kHz |
| Supported audio formats | MP3, G.711 μ-law, MP2L2, PCM, AAC-LC, G.722.1, G.726, G.711 A-law |
| Bit rate range | 8 - 320 Kbps |
Memory | |
| Built-in HDD | No |
| Compatible memory cards | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
| Card reader integrated | Yes |
| Maximum memory card size | 512GB |
Ports and interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Camera | |
| Number of privacy masking zones | 4 |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 - 1/100000 sec. |
| Lens viewing angle, vertical | 54.7° |
| Minimum lighting condition | 0 lx |
| Rotation range | 0 - 360° |
| Lens viewing angle, horizontal | 100.2° |
| Rotation angle | 360° |
| Lens viewing angle, diagonal | 119.7° |
Other features | |
| Supported browsers | IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ |
Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
Image | |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 640 x 360, 1920 x 1080 (HD 1080) |
| Maximum resolution | 2688 x 1520 pixels |
| Privacy masking | Yes |
| Adjusting the image quality | Sharpness, Saturation, Brightness, Contrast |
| Total megapixels | 4 MP |
| Noise reduction | Yes |
| Bit rate | 32Kbps - 8192Kbps |
| Image compression formats | H.265, H.265+, H.264, H.264+, M-JPEG |
| Backlight Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Smart AND | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Video streaming | Yes |
| Accent Compensation (HLC) | Yes |
| Frame rate | 30fps |
Night vision | |
| Infrared wavelength | 850 nm |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | AND |
Lens system | |
| Number of lenses | 1 |
| Identification distance | 6 years |
| Maximum aperture number | 1 |
| Observation distance | 25 years |
| Recognition distance | 12 years |
| Detection distance | 63 years |
| Fixed focal length | 2.8 mm |
Sustainability | |
| Certificates of conformity | Low Voltage Directive (LVD), CB, UL, RoHS, CE |
| Height | 130 mm |
| Length | 200mm |
| Weight | 750 g |
| Width | 250mm |
