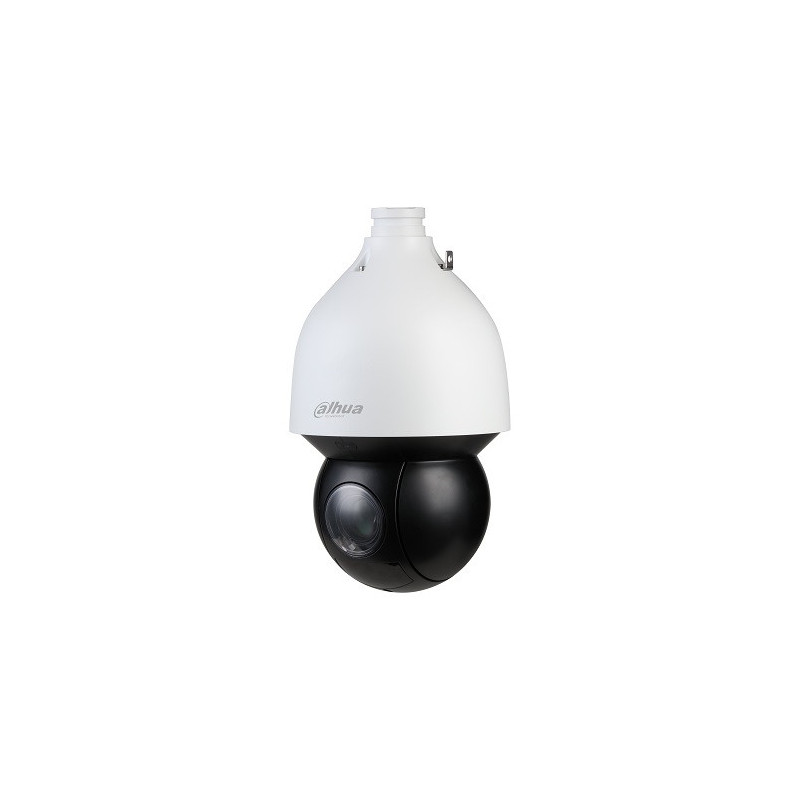

4 MP outdoor PTZ network camera with 25x optical zoom, continuous 360° pan and -15° to +90° tilt. IR illumination reaches up to 150 m, while smart detection, H.265 video compression, PoE+ power supply and IP67 and IK10 protection ensure reliable operation in a variety of conditions.
4 MP outdoor PTZ network camera with 25x optical zoom, continuous 360° pan and -15° to +90° tilt. IR illumination reaches up to 150 m, while smart detection, H.265 video compression, PoE+ power supply and IP67 and IK10 protection ensure reliable operation in a variety of conditions.
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
4 MP outdoor PTZ network camera with 25× optical zoom, continuous 360° pan and -15° to +90° tilt. Equipped with IR illumination up to 150 m, smart detection functions, H.265 video compression, PoE+ power supply and IP67/IK10 protection.
Product information | |
|---|---|
| Product type | Outdoor PTZ Network Security Camera |
| Brand | Dahua |
| Model | SD5A425GA-HNR |
| Image sensor | 1/1.8 inch CMOS |
| Highest resolution | 4MP, 2560 × 1440 |
| Lens | 5.4-135mm motorized varifocal lens |
| Focus control | Automatic, semi-automatic and manual |
| Aperture | F1.6-F4.0 |
| Field of view | Horizontal: 61.6°-3.6°; Vertical: 35.7°-2°; Diagonal: 66.6°-4° |
| Minimum focusing distance | 0.1-2m |
PTZ and video functions | |
| Rotation range | 0-360°, continuous |
| Tilt range | -15°-+90°, with 180° automatic flip |
| Manual rotation speed | 0.1°/s-300°/s |
| Manual tilt speed | 0.1°/s-140°/s |
| Preset speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| PTZ routes | 8 routes, up to 32 presets per route |
| Digital zoom | 16× |
| Image stabilization | Electronic Image Stabilization (EIS) |
| Day and night mode | Automatic ICR, color or black and white image |
| Minimum illumination | Color: 0.001 lux at F1.6; B/W: 0.0001 lux at F1.6; 0 lux with IR illumination on |
| Backlight compensation | BLC and HLC |
| Noise reduction | 2D and 3D noise reduction |
| Fog reduction | Electronic |
| Privacy zones | Up to 24 zones, of which up to 8 are visible at a time |
Image and smart features | |
| Image compression | H.265, H.264B, H.264, H.264H, MJPEG, Smart H.265+ and Smart H.264+ |
| Streaming | Three streams; unicast or multicast |
| Frame rate | Up to 25/30 fps, depending on resolution and video standard |
| Speed control | CBR or VBR |
| Motion detection | Yes |
| Perimeter security | Virtual line, intrusion, lingering, abandoned or removed object, fast moving object, parking, crowding and classification of people and vehicles |
| Face detection | Face detection, face snapshots, face enhancement, and facial feature detection |
| Automatic tracking | Yes |
| Smart motion detection | People and vehicle detection |
| DORI distance | Detection: 1724 m; observation: 689 m; recognition: 344 m; identification: 172 m |
Connectivity and data storage | |
| Network interface | RJ-45, 10/100 Base-T |
| Network protocols | IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, RTP, RTCP, FTP, SMTP, DHCP, DNS, NTP, SNMP, ONVIF and related network services |
| Compatibility | ONVIF S, G and T profiles; CGI; SDK |
| Local storage | MicroSD card up to 512 GB |
| Network storage | FTP/SFTP and NAS |
| Audio input and output | One audio input and one audio output |
| Alarm inputs and outputs | Two alarm inputs and one output |
| Compatible software | DSS, DMSS, Easy4ip, SmartPSS and IVSS; mobile apps for iOS and Android |
Power supply and construction | |
| Power source | 24 V DC, 2.5 A ±25% or PoE+ according to IEEE 802.3at |
| Energy consumption | Typically 12 W; maximum 21 W when IR illumination is on and PTZ mechanism is moving |
| Operating temperature | -40°C-+70°C |
| Operating humidity | Up to 95% |
| Protection class | IP67 weather protection and IK10 impact resistance |
| Additional protection | TVS 6000 V protection against lightning, surges and transient voltage spikes |
| Dimensions | 190 × 332 mm |
| Net weight | 4.7 kg |
Safety warning | |
| Important | For fixed outdoor surveillance only. Installation, power connection and network configuration must be performed by a qualified professional. Use a compatible PoE+ switch or 24V DC power supply, ensure proper grounding, and do not open or modify the camera while it is connected to power. |
| Height | 194 mm |
| Length | 305mm |
| Weight | 3800 grams |
| Width | 194 mm |
