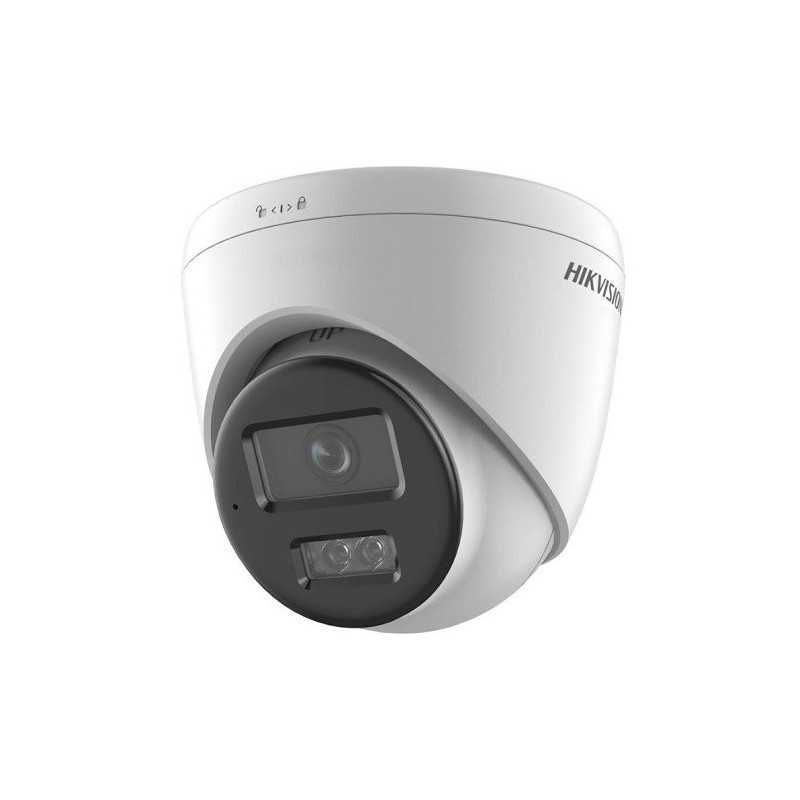

IP camera Hikvision DS-2CD1383G2-LIU 2.8mm

Model: DS-2CD1383G2-LIU, white color
Lens: 2.8mm (113°)
Type: Dome camera
Manufacturer: Hikvision
Resolution: 8MP
Built-in microphone: Yes
Technology: Smart Hybrid
Lighting: White up to 40m
Compression: H.265+
Protection level: IP67
Power supply: PoE
Description:
Camera
• Sensor: 1/2.7" Progressive Scan CMOS
• Max. resolution: 3840 × 2160
• Min. illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Day Night: IR cut filter
• Angle change: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
• Lens type: Fixed focal lens, 2.8mm
• Focal Length FOV: 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
• Lens mount: M12
• Iris type: Fixed
• Aperture: F2.0
DORI: 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
Lighting
• Additional illumination type: IR,White Light
• Auxiliary lighting range: Up to 40 m
• Smart additional lighting: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Substream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC) H.264 and H.265 encoding
Sound
• Sound type: Mono sound
• Noise cancellation: Yes
• Audio sampling frequency: 8 kHz/16 kHz
• Audio compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Internet
• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Live video viewing: Up to 6 channels
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR): 120 dB
• SNR: >/= 52 dB
• Day/Night mode: Day,Night,Auto,Schedule
• Photo enhancement: BLC, HLC, 3D DNA
• Photo settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy mask: 4 programmable polygon privacy masks
Interface
• Internet interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Built-in microphone: Yes
Features
• Main functions: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Home
• System parameters: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal Plastic
• Size: Ø110 mm × 93 mm (Ø4.33" × 3.66")
• Package size: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approx. 385 g (0.85 lb.)
• Weight with packaging: Approx. 586 g (1.3 lb.)
• Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• Main functions: Heartbeat, anti-banding, mirror, password protection, password reset via email
Approvals
• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
• Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environmental protection: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
