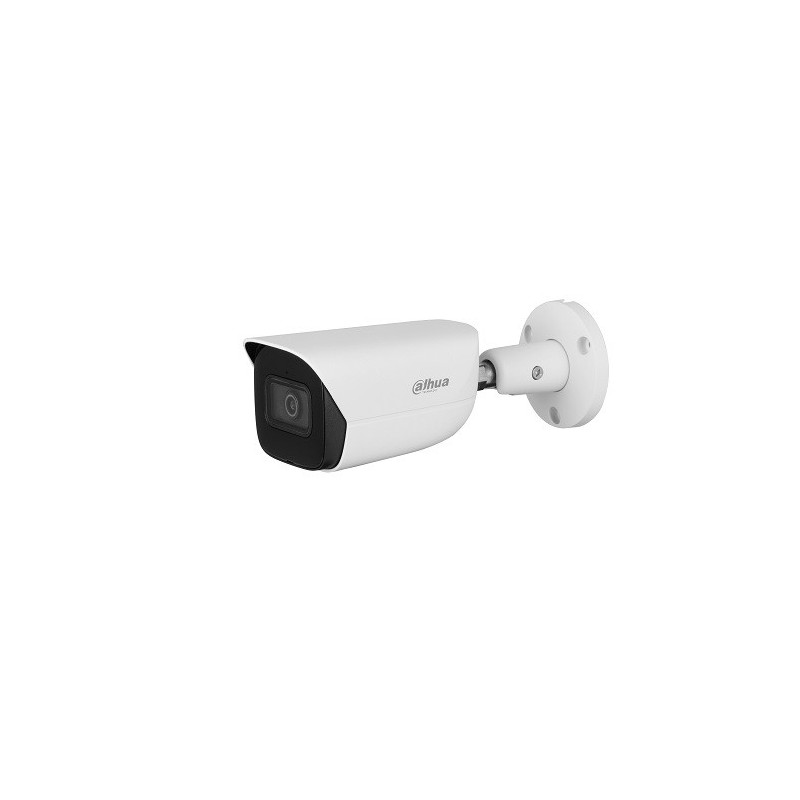

IP camera HFW3841E-S-S2 8MP

IP camera HFW3841E-S-S2 8MP

Short description:
IP camera AI cylindrical 8 MP. IR illumination up to 30m. 1/2.8" inch 8 MP STARLIGHT CMOS sensor. 8MP(3840 × 2160) 1~25fps. H.265+/H.265/H.264+/H.264. Lens: 3.6mm viewing angle 84°. BLC / HLC / WDR 120 dB, 3D-NR: noise reduction technology. SD memory port max 256GB. AI, SMD 4.0, AI SSA; WDR(120dB), ROI, IVS, PoE, IP67 moisture resistant. Supports ONVIF(Profile S/Profile G/ Profile T), CGI, P2P, Milestone, Genetec standard. Model: DH-HFW3841E-S-S2 3.6mm.
Brief technical characteristics:
• IVS functions: line crossing, perimeter intrusion.
• AI: Human recognition function, face detection, perimeter protection (Smart Motion Detection (SMD 4.0); smart search (Smart Search, works with AI NVR), quick selection (Quick Pick, works with AI NVR).
• AI SSA Scene Self-Adaptation.
• 1/2.8" inch 8 MP STARLIGHT CMOS sensor.
• Effective pixels PAL: (3840 × 2160).
• 3.6mm fixed lens (lens viewing angle about 84°).
• Video compression H.265; H.264; H.264H; H.264B, Smart H.265+; Smart H.264+, AI H.265+, AI H.264+.
• Operating system LINUX.
• Audio compression: G.711a; G.711Mu; PCM; G.726; G.723.
• Remote control and live monitoring via Ethernet (WEB): IE11 Chrome Firefox.
• Free software for camera control (DSS/SMART PSS), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones:IPHONE, ANDROID, IPAD, GALAXY TAB and etc.
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot AH Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others...
• Available video resolution options: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704×576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480).
• Compression rate: main stream: 8MP (3840 × 2160) @ (1-25 fps), sub stream: 704 × 576 @(1-25 fps)/ 704 × 480 @ (1-25 fps), sub third stream: 1920 × 1080 @(1-25 fps).
• Bit rate: H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps.
• D/N: switches from color to black and white at a certain light level intensity - mechanical Day/Night function.
• Min. illumination: 0.007 Lux @F1.4 30IRE; 0.0007 Lux @F1.4 B/W, 30IRE, 0 Lux IR on.
• 1 pc. IR LED.
• Illumination distance 30m.
• 3D-NR: noise reduction technology
• S/N ratio gt; 56dB.
• Scanning system: Progressive.
• Electronic shutter: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC / HLC / true WDR 120dB.
• Video format: PAL.
• Image rotation (Flip) 0°/90°/180°/270°.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec.
• Remote control: Monitoring, EPTZ zoom zoom, system settings, File download, Viewing, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user connections: 20 (total traffic 64M).
• Internal memory: SD memory port Max 256GB.
• 3-axis mechanism for camera adjustment (Pan: 0° ~ 360° Tilt: 0° ~ 90 Rotation: 0° ~ 360°).
• Recording: to FTP, SFTP or NAS servers.
• Operating temperature: -40°C~+60°C, lt;95% RH.
• Moisture resistant IP67.
• Power supply: DC 12V, PoE (802.3af).
• Power consumption: 3.8W (12V DC); 4.6W (PoE); max. 5.9W (12V DC); 7.2W (PoE).
• Dimensions: 192.7 mm × 70.5 mm × 66.4 mm.
• Weight: 590 g.

Compatible mounts:
• PFA134.
• PFA130-E.
• PFA12A.
• PFA152-E.
• PFA151.
