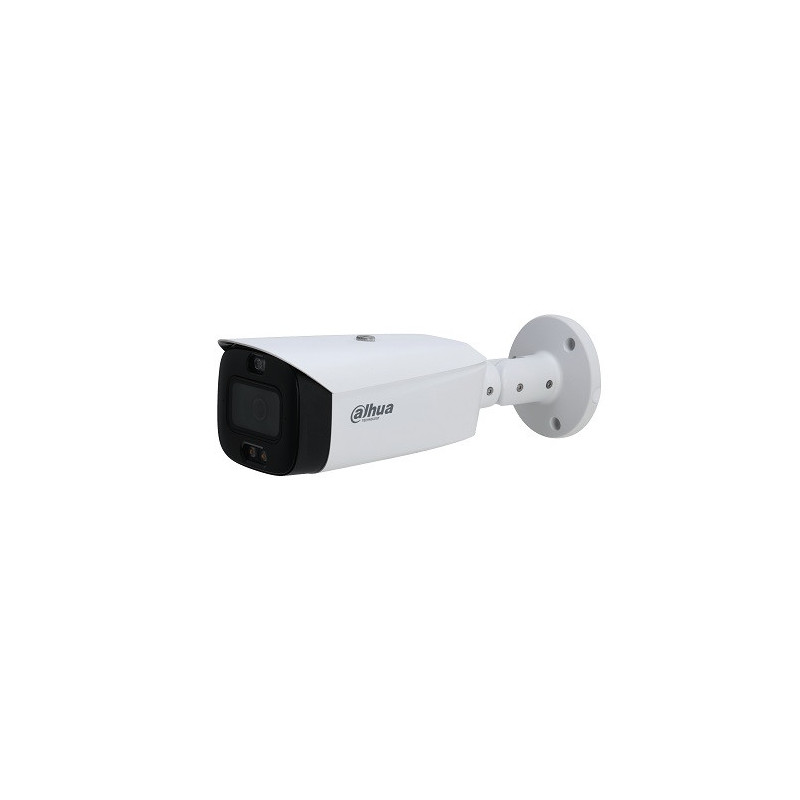

IP camera HFW3549T1-AS-PV-S3. 5MP

IP camera HFW3549T1-AS-PV-S3. 5MP

Short description:
IP camera AI active deterrence 5MP Full Color with integrated microphone, speaker, spotlight and alarm. Dual illumination IR+LED to 30m. Two-color flashing alarm. 1/2.7" inch CMOS sensor. 5MP (2592 × 1944) 1~20fps. Fixed lens: 3.6mm F1.0 viewing angle 78°. H.265+/H.265/H.264. BLC, HLC, WDR 120dB, ROI, IVS, AI, SSA, SMD 3.0, PoE, corridor mode. 3D-NR: noise reduction technology. SD memory port max. 256GB. IP67 moisture resistant, suitable for outdoor and indoor conditions. Watermark for various surveillance scenes. 3-axis adjustment. Supports ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P standard. Model: IPC-HFW3549T1-AS-PV-S3 3.6mm.
Brief technical characteristics:
• 5MP FULL-COLOR dome IP camera with IR+LED illumination and integrated microphone.
• IVS functions: line crossing, perimeter intrusion.
• AI: Human recognition function, face capture, car recognition function, perimeter protection; Smart Motion Detection (SMD 3.0).
• 1/2.7" inch 5MP FULL-COLOR CMOS sensor.
• 3.6mm fixed lens F1.0, lens viewing angle 78°(H), 58°(V), 102°(D).
• DORI: 78m (detection), 31.2m (tracking), 15.6m (recognition), 7.8m (setting).
• Integrated microphone.
• Audio compression: PCM; G.711a; G.711Mu; G.726; G.723.
• Video compression: H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+; AI coding AI H.265, AI H.264.
• Scanning system: Progressive.
• 2x IR+LED illumination up to 30m.
• Remote control and live monitoring via Ethernet (WEB): IE (IE8/9/11), Chrome, Firefox.
• Free software for camera control (SMART PSS), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DSS mobile phone surveillance software) suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc.
• IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot AH Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Number of effective pixels: 2592 (H) × 1944 (V).
• Available video resolution options: 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (354 × 288/354 × 240).
• Compression rate: main stream: 2592 × 1944 @1-20 fps, 2688 × 1520 @1-25 fps; Additional stream: 704 × 576 @1-25 fps/704 × 480 @ 1-25fps; Additional third stream: 1920 × 1080 @1-25 fps.
• Stream speed: H.264: 3 kbps-20480 kbps, H.265: 3 kbps-20480 kbps.
• Min. illumination: 0.003 Lux @ F1.0, color, 30 IRE; 0.0003 Lux @ F1.0 -B/W, 30 IRE..
• D/N: Day/Night function: switches from color image to black and white.
• 3D-NR: Noise reduction technology.
• Corridor mode (flip 0°/90°/180°/270°).
• ROI function (4 zones).
• S/N ratio gt; 56dB.
• Electronic shutter: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC / HLC / WDR 120dB.
• Video format: PAL.
• 10/100 Mb/s network port (Ethernet -RJ45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone, P2P.
• Recording: FTP, SFTP or NAS servers.
• Remote control: Monitoring, EPTZ digital zoom zoom, system settings, File download, View, software update.
• Maximum simultaneous user login: 20.
• Internal memory: micro SD memory port max. 256GB.
• Privacy zones: 8.
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Supports alarm linking with light and sound effects; red and blue light flashing alarm, 11 installed sounds.
• Operating temperature: -40°C~+60°C, 95% RH.
• 3-axis mechanism for camera adjustment (Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360°).
• Moisture resistant IP67 suitable for outdoor and indoor conditions.
• Power supply: DC12V / PoE (802.3af).
• Power consumption: 2.4W (12V DC) / 3.1W (PoE), max. power consumption: 7.9W (12V DC); 9.7W (PoE).
• Dimensions: 288.4 mm x 94.4 mm x 84.7 mm.
• Weight: 1 kg.

Compatible mounts:
PFA130-E.
PFA135.
PFA152-E.
