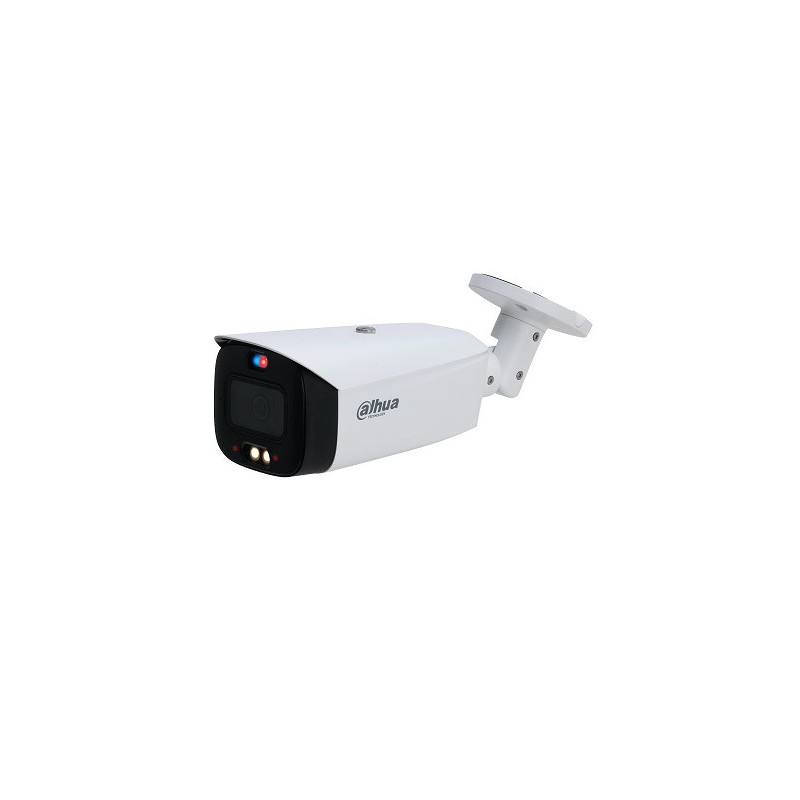

IP camera HFW3449T1-AS-PV-S3 4MP

IP camera HFW3449T1-AS-PV-S3 4MP

Short description:IP camera FULL-COLOR 4MP WizSense with integrated microphone, active deterrence with red/blue flashing light and sound alarm. 1/2.7'' FULL-COLOR CMOS sensor. Dual IR + LED illumination up to 30m. 4MP (2688 × 1520) 1~25fps. Fixed lens: 2.8mm F1.0 viewing angle 101°. H.265+/H.265/H.264. BLC, HLC, WDR 120dB, ROI, IVS, AI, SSA, SMD 3.0, PoE, corridor mode. 3D-DNR: noise reduction technology. SD memory port Max 256GB. IP67 moisture resistant suitable for outdoor and indoor conditions. 3-axis adjustment. Supports ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P standard. Model: DH-IPC-HFW3449T1-AS-PV-S3 2.8mm.Brief technical characteristics:• 4MP FULL-COLOR IP camera with IR+LED illumination and integrated microphone. • IVS functions: line crossing, perimeter intrusion. • AI: Human recognition function, face detection, car recognition function, perimeter protection (Smart Motion Detection (SMD Plus). • 1/2.7' inch 4MP FULL-COLOR CMOS sensor. • 2.8mm fixed lens F1.0 (lens viewing angle about 101°); detection from 66m, monitoring 26.4m, recognition 13.2m, identification 6.6m. • Built-in microphone. • Audio compression: PCM; G.711a; G.711Mu; G.726; G.723. • Video compression: H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+. • Operating system LINUX. • Scanning system: Progressive. • 2x IR LED illumination up to 30m and 2x warm color LED up to 30m. • Remote control and live monitoring via Ethernet (WEB): IE (IE 8/9/11), Chrome, Firefox. • Free software for camera control (SMART PSS), video viewing and archiving, using a computer network or the Internet. • Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer. • Free program for monitoring via mobile phone or handheld computer (DSS, DMSS mobile phone surveillance software) suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc. • IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot AH Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others... • Effective pixel count: 2688 (H) × 1520 (V). • Available video resolutions: 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (354 × 288/354 × 240). • Compression rate: Main stream: 2688 × 1520 @1-25 fps. Substream: 704 × 576 @1-25 fps/704 × 480 @ 1-25 fps; Additional third stream: 1920 × 1080 @1-25 fps. • Bit rate: H.264: 3 kbps-20480 kbps, H.265: 3 kbps-20480 kbps. • Min. illumination: 0.003 Lux @ F1.0 - Color, 30 IRE; 0.0003 Lux @ F1.0 -B/W, 30 IRE. • 3D-DNR: noise reduction technology. • Corridor mode (flip 0°/90°/180°/270°), 90°/270° with 2688x1520 resolution. • ROI function. • S/N ratio > 56dB. • Electronic delay: Auto/Manual, 1/3 s-1/100,000 s. • White balance: Auto/Manual, BLC / HLC / 3D NR/ WDR 120dB. • Video format: PAL. • 10/100 Mb/s network port (Ethernet -RJ45). • Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone, P2P. • Recording: FTP, SFTP or NAS servers. • Remote control: Monitoring, EPTZ digital zoom, system settings, File download, Preview, software update. • Unlimited number of users (possibility to grant different rights to each user). • Maximum simultaneous user login: 20. • Internal memory: micro SD memory port max. 256GB. • Privacy zones: 8. • Alarm input: 1 channel (5mA 3V-5V DC). • Alarm output: 1 channel (300mA 12V DC). • Audio input: 1 channel RCA. • Audio output: 1 channel RCA. • Supports alarm linking with light and sound effects; red and blue light flashing alarm, 11 preset sounds. • Operating temperature: -40°C~+60°C, 95% RH. • 3-axis mechanism for camera adjustment (Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360°). • IP67 waterproof, suitable for outdoor and indoor use. • Power supply: DC12V / PoE (802.3af). • Power consumption: 2.4W (12V DC) / 3.1W (PoE), Max. power consumption: 7.9W (12V DC); 9.7W (PoE) • Dimensions: 288.4 mm × 94.4 mm × 84.7 mm. • Weight: 1.0 kg.

Compatible mounts:PFA152-E. PFA130-E. PFA135.
