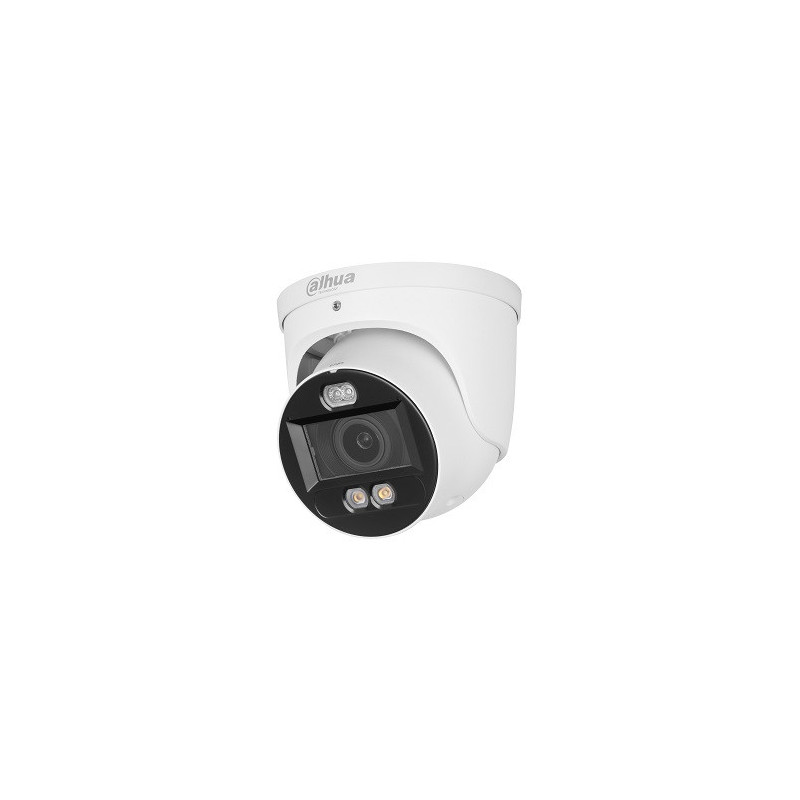

4 MP outdoor dome IP network camera with motorized 2.7-13.5 mm varifocal lens, 120 dB WDR function, IR and warm light illumination and IP67 protection. Supports H.265 video format, people and vehicle detection, two-way audio, up to 256 GB microSD card and 12 V DC or PoE power supply.
4 MP outdoor dome IP network camera with motorized 2.7-13.5 mm varifocal lens, 120 dB WDR function, IR and warm light illumination and IP67 protection. Supports H.265 video format, people and vehicle detection, two-way audio, up to 256 GB microSD card and 12 V DC or PoE power supply.
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
4 MP outdoor dome IP network camera with motorized 2.7-13.5 mm varifocal lens, 120 dB WDR, infrared and warm light illumination, and IP67 protection. Supports H.265 video recording, people and vehicle detection, two-way audio, microSD card up to 256 GB, and 12 VDC or PoE power supply.
Product information | |
|---|---|
| Product type | Outdoor Dome IP Network Camera |
| Brand | Dahua |
| Model | HDW3449H-ZAS-PV |
| Image sensor | 1/2.7 inch CMOS |
| Highest resolution | 2688 × 1520 pixels |
| Scanning system | Progressive scan |
| Minimum illumination | 0.003 lux in color mode; 0.0003 lux in monochrome mode; 0 lux with backlight on |
| Electronic lock | Automatic or manual, 1/3 s-1/100,000 s |
Lens and image adjustment | |
| Lens type | Motorized zoom lens |
| Focal length | 2.7-13.5mm |
| Field of view | Horizontal: 103°-33°; vertical: 54°-18°; diagonal: 124°-38° |
| Aperture | Fixed |
| Minimum focusing distance | 1.5m |
| Adjustment range | Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360° |
| Image features | Backlight compensation, highlight compensation, 3D noise reduction, electronic image stabilization, fog reduction, automatic scene adjustment, smart lighting, mirror image and image rotation |
| Privacy zones | 4 areas |
Image and smart features | |
| Image compression | H.265, H.264, H.264H, H.264B and MJPEG in additional stream |
| Smart Codec | Smart H.265+ and Smart H.264+ |
| Video streams | 3 streams |
| Maximum frame rate | Main stream: 2688 × 1520, 1-30 fps; third stream: 1920 × 1080, 1-30 fps |
| Speed control | CBR or VBR |
| Data transfer rate | 32-8192 kbit/s using H.264 and H.265 |
| Day and night mode | Automatic ICR, color or black and white |
| Perimeter security | Virtual line crossing and intrusion detection by classifying people and vehicles |
| Motion detection | 4 configurable areas |
| Area of interest | 4 areas |
| DORI distance | Wide angle: detection - 65.2 m, tracking - 26.1 m, recognition - 13.0 m, identification - 6.5 m; telephoto: detection - 186.6 m, tracking - 74.6 m, recognition - 37.3 m, identification - 18.7 m |
Sound and connections | |
| Sound | Built-in dual microphone and speaker for two-way audio |
| Audio compression | PCM, G.711a, G.711Mu, G.726 and G.723 |
| Audio input | 1 channel RCA input |
| Audio output | 1 channel RCA output |
| Alarm input | 1 channel input with voltage, 3-5 VDC |
| Alarm output | 1 channel output with voltage, 12 VDC |
| Network interface | RJ-45, 10/100 Base-T |
| Compatibility | ONVIF S, G and T profiles; CGI |
Memory and software | |
| Local memory | Up to 256 GB microSD card |
| Additional memory | FTP, SFTP and NAS |
| Management software | SmartPSS Lite, DSS and DMSS |
| Mobile platforms | iOS and Android |
| Supported protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP and P2P |
| Security | HTTPS, 802.1X, video and configuration encryption, IP/MAC filtering, account lockout, security logs, and X.509 certificate support |
Power supply and construction | |
| Power source | 12 VDC or PoE per IEEE 802.3af |
| Energy consumption | Base: 4W using 12VDC or 5W via PoE; Peak: 8.5W using 12VDC or 10.6W via PoE |
| Housing material | Metal |
| Protection class | IP67 |
| Operating temperature | −30°C to +60°C |
| Operating humidity | Up to 95% |
| Dimensions | 127.6 × 122.0 mm |
| Net weight | 885 grams |
Safety information | |
| Safety warning | For fixed outdoor surveillance only. Mount the camera securely and connect it only to a compatible 12 VDC power source or IEEE 802.3af PoE network. Installation and electrical connections must be performed by a qualified person. Do not open or modify the camera, do not immerse it in water, and do not expose the connectors to moisture. IP67 protection is only valid if the connectors are properly sealed and does not protect against improper installation. |
| Height | 110 mm |
| Length | 244 mm |
| Weight | 760g |
| Width | 110 mm |
