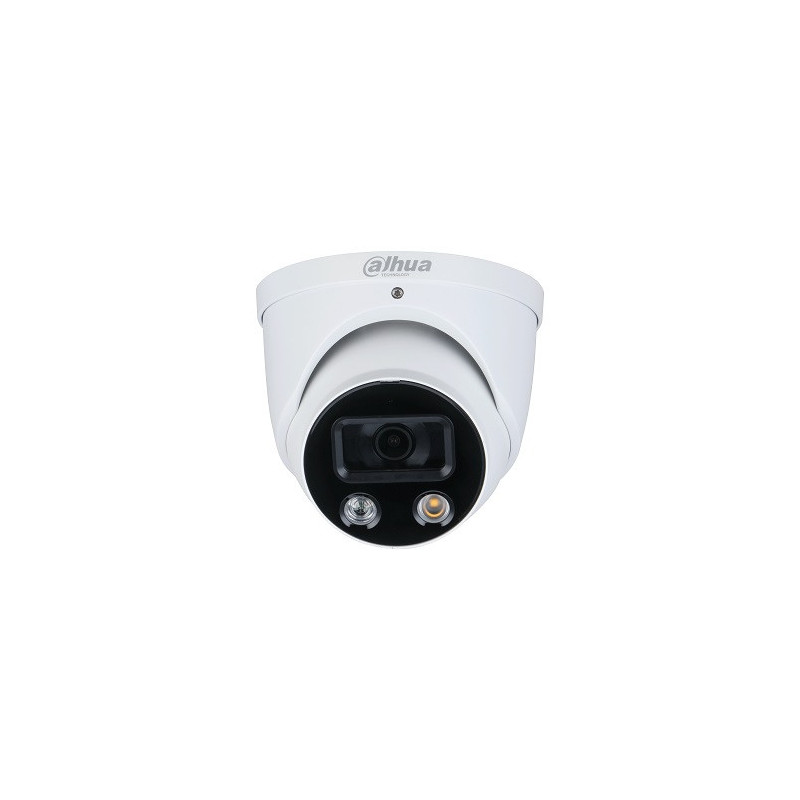

4 MP IP dome camera with 3.6 mm fixed focal lens, 2688 × 1520 resolution, 120 dB WDR function and up to 30 m infrared and warm light illumination. The camera supports PoE, has an integrated microphone, microSD card up to 256 GB, recognizes people and vehicles and meets the IP67 protection class.
4 MP IP dome camera with 3.6 mm fixed focal lens, 2688 × 1520 resolution, 120 dB WDR function and up to 30 m infrared and warm light illumination. The camera supports PoE, has an integrated microphone, microSD card up to 256 GB, recognizes people and vehicles and meets the IP67 protection class.
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
4 MP IP dome camera with 3.6 mm fixed focus lens, 2688 × 1520 resolution, 120 dB WDR function and 30 m IR and warm lighting range. Supports PoE, has a built-in microphone, microSD memory up to 256 GB, people and vehicle detection and IP67 protection.
Product information | |
|---|---|
| Product type | IP dome security camera |
| Brand | Dahua |
| Model | HDW3449H-AS-PV-S3 |
| Image sensor | 1/2.7 inch CMOS |
| Lens | 3.6 mm fixed focus lens, M12 connector |
| Viewing angle | Horizontal: 82°; Vertical: 44°; Diagonal: 96° |
Image and video | |
| Spreadsheet | Progressive scan |
| Frame rate | Up to 30 fps at 2688 × 1520 resolution |
| Image compression | H.265, H.264, H.264H, H.264B; for additional stream - MJPEG |
| Smart Codec | Smart H.265+ and Smart H.264+ |
| AI coding | AI H.265 and AI H.264 |
| Bit rate control | CBR or VBR |
| Video data stream | 3-20 480 kbps using H.264 and H.265 |
| Day and night mode | Automatic ICR, color or black and white image |
| Image features | BLC, HLC, 3D noise reduction, de-fog, automatic scene adjustment, white balance adjustment, gain control and image rotation |
| Motion detection | Configurable in 4 zones |
| Area of interest | Up to 4 zones |
| Privacy masking | Up to 8 zones |
Smart features | |
| Perimeter security | Virtual line crossing and intrusion detection by classifying people and vehicles |
| Smart motion detection | SMD 3.0 helps reduce false alarms and increase detection distance |
| Smart search | Supports detailed event search and event video retrieval using a compatible smart NVR |
Sound and alarms | |
| Sound | Built-in microphone; PCM, G.711a, G.711μ, G.726 and G.723 audio compression |
| Audio input/output | 1 input and 1 output channel via RCA |
| Alarm input | 1 channel, 3-5 V DC |
| Alarm output | 1 channel, 300 mA at 12 V DC |
Network and memory | |
| Network interface | RJ-45, 10/100 Base-T |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP and related network protocols |
| Compatibility | ONVIF Profile S, Profile G and Profile T; CGI, P2P and Milestone |
| Memory | microSD card up to 256 GB, NAS, FTP and SFTP |
| Flows | 3 video streams |
| Compatible software | SmartPSS, DSS and DMSS; supported on iOS and Android |
Power supply and construction | |
| Power source | 12 V DC or PoE (IEEE 802.3af) |
| Energy consumption | Base: 1.75W using 12V DC or 3.6W via PoE; Peak: 6.4W using 12V DC or 8.6W via PoE |
| Housing material | Metal |
| Protection class | IP67 |
| Operating temperature | From −40 °C to +60 °C at less than 95% relative humidity |
| Rotation/tilt/pivot | Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360° |
| Dimensions | 110.9mm × 122.0mm |
| Net weight | 745 grams |
Safety warning | |
| Warning | For security monitoring purposes only. Install and use the camera in accordance with the manufacturer's instructions. Use a suitable 12V DC power supply or IEEE 802.3af PoE compliant equipment and ensure that all outdoor connections are properly protected from moisture. |
| Height | 110 mm |
| Length | 204 mm |
| Weight | 425 g |
| Width | 110 mm |
